Description

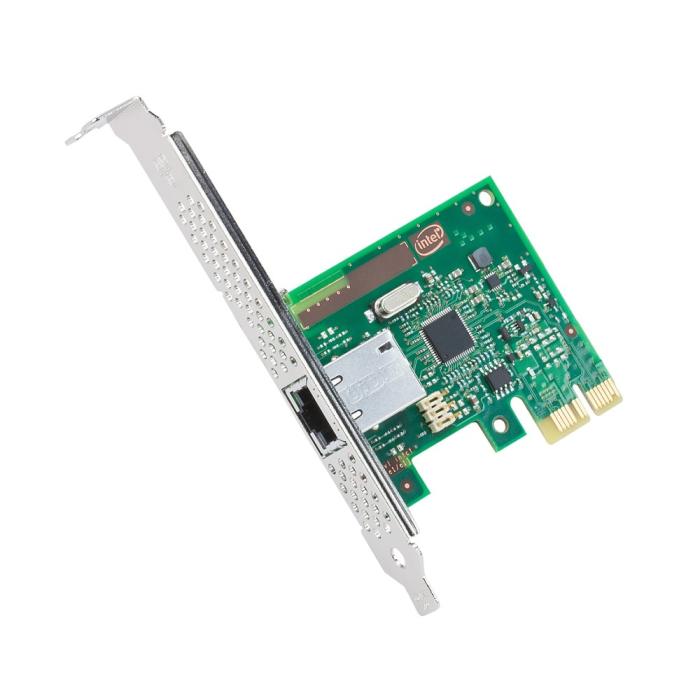

The Intel I210T1 network card is an internal Ethernet adapter with a PCI Express host interface and PCI 2.1 version, designed for servers and desktop computers. It includes an RJ-45 port with 10/100/1000BaseT(X) cabling technology, enabling transfer speeds of 10, 100 and 1000 Mbit/s, with a maximum operating distance of 100 metres. The Intel I210 LAN controller ensures a stable connection and complies with IEEE 802.3, IEEE 802.3ab and IEEE 802.3u standards. With compact dimensions of 65 mm wide, 55 mm high and 20 mm deep, this adapter from the Intel Gigabit server adapter family installs easily into single-lane slots with 2.5 GT/s.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
- PCI version: 2.1
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Cabling technology: 10/100/1000BaseT(X)
- Maximum operating distance: 100 m
- LAN controller: Intel I210
Design
- Internal: Yes
- Compatible products: Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC
Weight & dimensions
- Width: 65 mm
- Depth: 20 mm
- Height: 55 mm
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Cable type: RJ45 Category 5, up to 100 m
- Market segment: Server
- Thermal power: 1 W
- Intel Virtual Machine Device Queues (VMDq): No
- PCI-SIG* SR-IOV Capable: No
- On-chip QoS and Traffic Management: No
- Intel Flexible Port Partitioning: No
- Speed & slot width: 2.5 GT/s, x1 Lane
- Low halogen options available: No
- Intelligent Offloads: Yes
- iWARP/RDMA: No
- Fiber Channel over Ethernet: No
- Intel Ethernet Power Management: Yes
- Intel Data Direct I/O Technology: No
- Interface type: PCIe v2.1 (2.5 GT/s)
- Conflict-Free: Yes
- Product type: Network Interface Card
- Thermal Design Power (TDP): 1 W
- Number of QPI links: Single
- Launch date: Q1'13
- Processor family: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
- Born on date: Q1'13
- Network interface card cable medium: Copper
- Network interface card type: Server
- Product brief URL: http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html
- Product name: Intel Ethernet Server Adapter I210-T1
- Status: Launched
- Last change: 63903513
- Ethernet adapter ARK ID: 68668
- Export Control Classification Number (ECCN): 5A991
- Commodity Classification Automated Tracking System (CCATS): NA
- Controller type: Intel I210
- Cabling type: RJ45 Category 5, up to 100 m
- Bracket height: Low-Profile (LP) / Full-Height (FH)
- Product family: Intel Gigabit server adapter
- Product series: Intel I210
