Intel I350T4V2 network card Internal Ethernet 1000 Mbit/s

Name: Intel I350T4V2 network card Internal Ethernet 1000 Mbit/s
Brand: INTEL
SKU: 85831
Price: 174.44 EUR
Availability: InStock

More info

Brand: INTEL

174.44 €

144.17 € without VAT

Stock available: 5 units.

Get it on the September 8 / September 9

SKU: 75686 PRC: 85831 EAN: 735858286343 PN: I350T4V2

Description

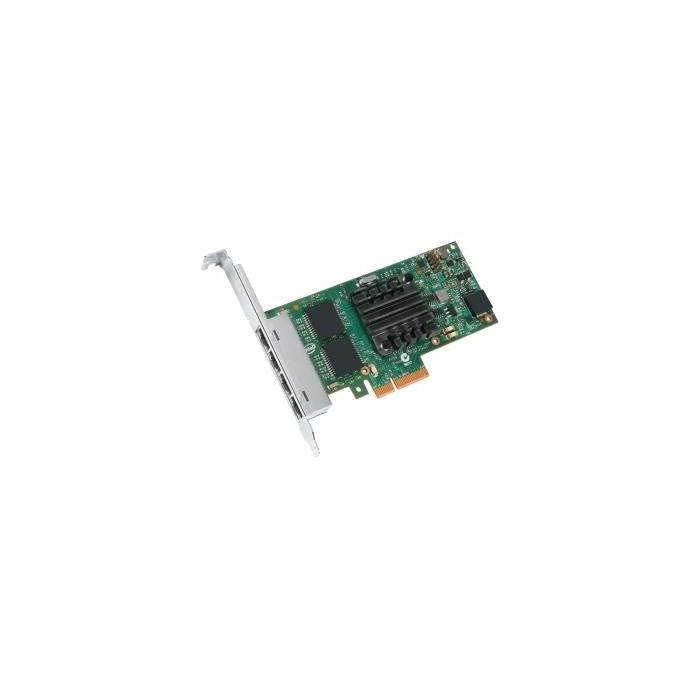

The Intel I350T4V2 is an internal network card with a PCI Express interface and low-profile form factor, adding four RJ-45 Ethernet ports to your system for wired connectivity at 1000 Mbit/s. Its Intel® I350 LAN controller manages speeds of 10, 100 and 1000 Mbit/s in full duplex, with a maximum operating distance of 100 metres over 10/100/1000BaseT(X) cabling. Compatible with TCP, UDP and IP protocols and IEEE 802.3, 802.3ab, 802.3az, 802.3u, 802.3x and 802.3z standards, this card expands your system's networking options without complications.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 4
PCI version: 2.1
PCI Card form factor: Half-height (low-profile)

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex: Yes
Supported network protocols: TCP, UDP, IP
Maximum operating distance: 100 m
LAN controller: Intel® I350

Design

Component for: Server
Product colour: Green, Silver
Internal: Yes
Chipset: Intel® I350
LED indicators: LAN

Power

Power consumption (typical): 5 W

System requirements

Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Linux operating systems supported: RedHat EL Linux 5.0, RedHat EL Linux 6.0, SuSE Linux 10, SuSE Linux 11
Server operating systems supported: Windows Server 2003 R2, Windows Server 2008 R2

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 35 - 90%

Weight & dimensions

Width: 68.9 mm
Depth: 135.4 mm
Height: 120 mm

Logistics data

Harmonized System (HS) code: 85176990

Other features

Cable type: Cat 5 up to 100m
Market segment: Server
Intel Trusted Execution Technology: No
Thermal power: 5 W
Embedded options available: No
Intel Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes
On-chip QoS and Traffic Management: Yes
Intel Flexible Port Partitioning: Yes
Storage-over-ethernet: Yes
Speed & slot width: 5.0 GT/s, x4 Lane
Message signal interrupt: No
Low halogen options available: No
Intelligent Offloads: Yes
iWARP/RDMA: No
Fiber Channel over Ethernet: No
Intel Ethernet Power Management: Yes
Intel Data Direct I/O Technology: No
Intel Virtualization Technology for Connectivity (VT-c): Yes
Interface type: PCIe v2.1 (5.0 GT/s)
Product type: Network Interface Card
Thermal Design Power (TDP): 5 W
Launch date: Q3'14
Number of QPI links: Quad
Processor family: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Network interface card cable medium: Copper
Ethernet adapter ARK ID: 84805
Export Control Classification Number (ECCN): 5A991
Commodity Classification Automated Tracking System (CCATS): NA
Storage Over Ethernet: iSCSI, NFS
Born on date: Q3'14
Network interface card type: Server
Product brief URL: http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Product name: Intel Ethernet Server Adapter I350-T4V2
Status: Launched
Last change: 63903513
Controller type: Intel I350
Cabling type: Cat 5 up to 100m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel Gigabit server adapter
Product series: Intel® I350
Product codename: Powerville
