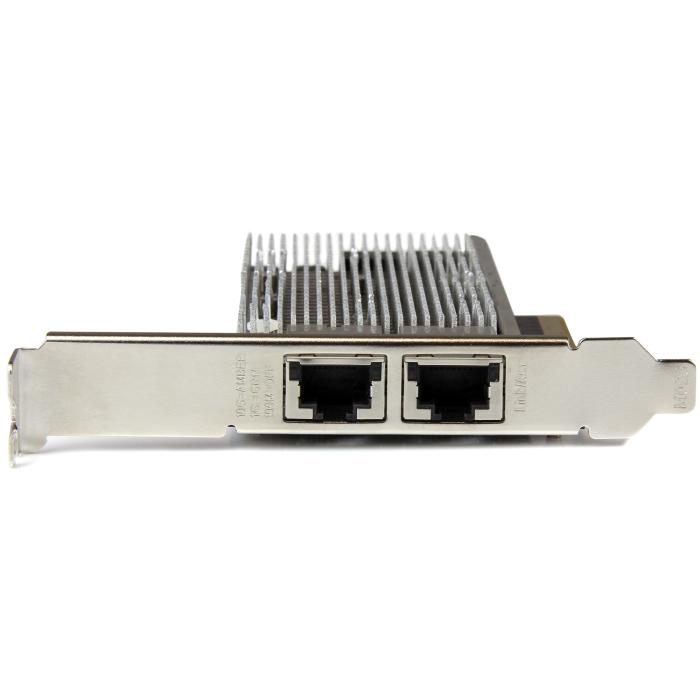

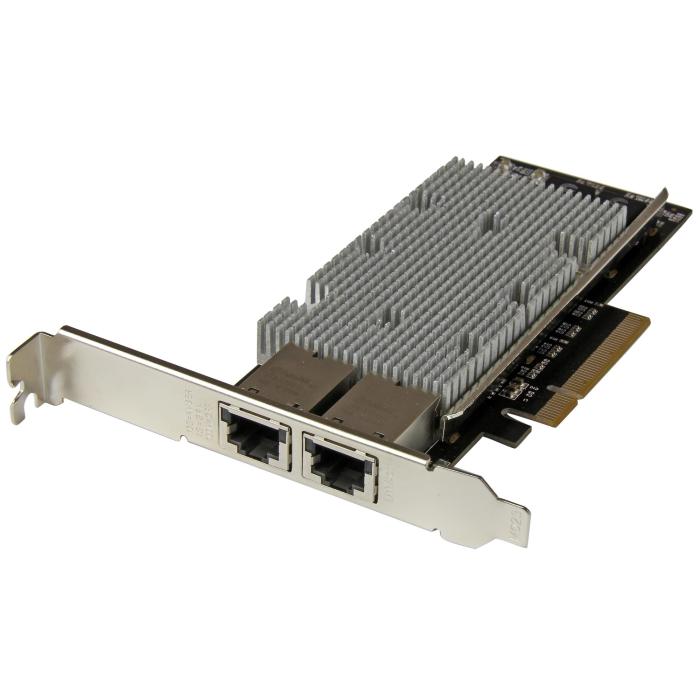

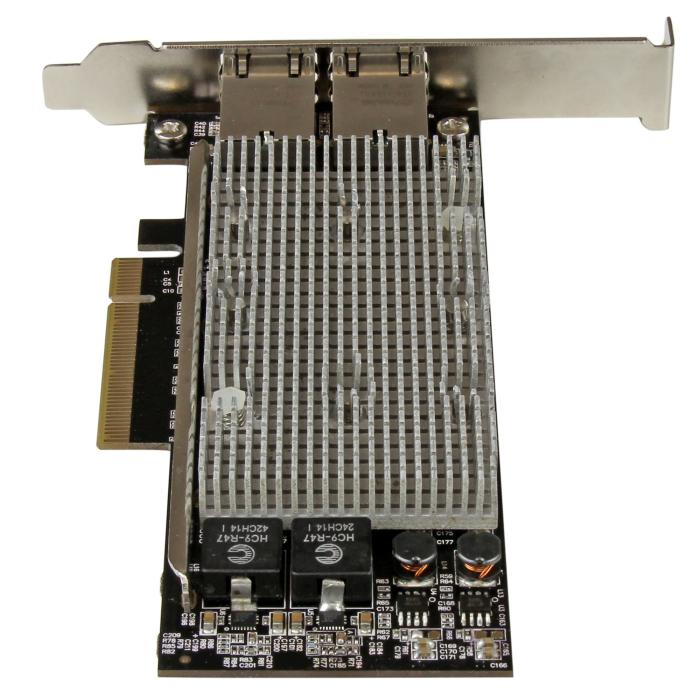

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
More info
Brand: STARTECH.COM
436.10 €
360.41 €
without VAT
incl. 21 % VAT
Stock available: 24 units.
Get it
on the
October 15
/
October 16
SKU:
121326
PRC:
92464
EAN:
65030860598
PN:
ST20000SPEXI
Description
StarTech.com PCI Express network card with 2 RJ45 ports and Intel x540 chipset, Ethernet interface and wired connection. It reaches a maximum data transfer rate of 20000 Mbit/s and supports speeds of 10, 1000 and 100 Mbit/s over 10/100/1000BaseT(X) cabling. It is internal and features LED activity and speed indicators. It supports 15000 Jumbo frames, VLAN tagging and auto-negotiation, as well as operating in full duplex mode. It complies with IEEE 802.3ad, 802.3q, 802.3u, 802.3an, 802.3az and 802.3ab standards. It has a weight of 160 g and dimensions of 20 x 120 x 163 mm (width x height x depth), with a black colour and stainless steel.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 2
Network
- Maximum data transfer rate: 20000 Mbit/s
- Networking standards: IEEE 802.3ad, IEEE 802.3q, IEEE 802.3u, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ab
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 1000, 100 Mbit/s
- Cabling technology: 10/100/1000BaseT(X)
- Wake-on-LAN ready: Yes
- Auto MDIX IEEE: No
- Full duplex: Yes
- Jumbo frames support: Yes
- Auto-negotiation: Yes
- Jumbo frames: 15000
- VLAN tagging: Yes
Design
- Product colour: Black, Stainless steel
- Internal: Yes
- Chipset: Intel - X540
- LED indicators: Activity, Speed
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 20 mm
- Depth: 163 mm
- Height: 120 mm
- Weight: 160 g
Packaging data
- Low-profile bracket: Yes
- Package width: 208 mm
- Package depth: 147 mm
- Package height: 40 mm
- Package weight: 242 g
Packaging content
- Manual: Yes
Technical details
- Compliance certificates: CE, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 420 mm
- Master (outer) case length: 430 mm
- Master (outer) case height: 308 mm
- Products per master (outer) case: 40 pc(s)
