Description

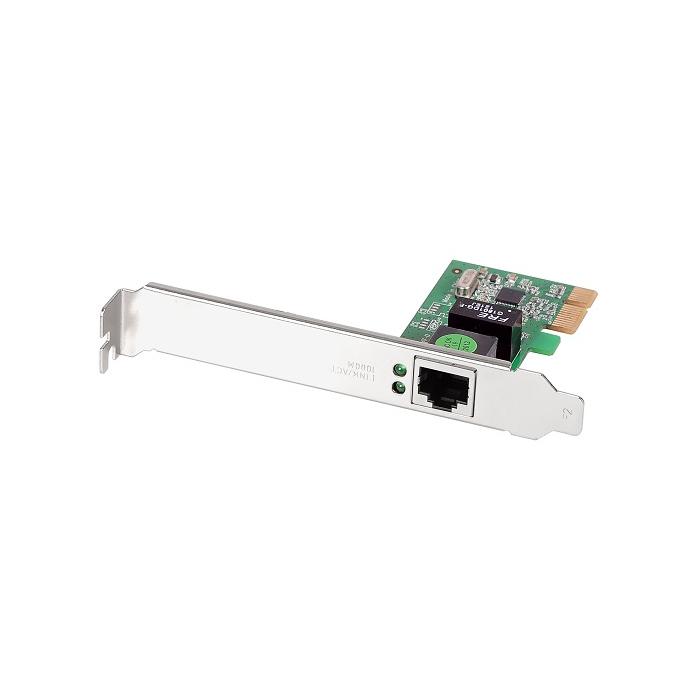

The Edimax EN-9260TX-E V2 internal network card and adapter connects to your PC via a PCI Express slot and includes a wired RJ-45 Ethernet port, with transfer speeds of 10, 100 and 1000 Mbit/s, reaching up to 1000 Mbit/s on Gigabit networks. It supports full duplex connection and the IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.1Q, 802.1p, 802.3az standards, with 10/100/1000BaseT(X) cabling technology. It incorporates activity and link LED indicators, is compatible with plug and play, and has CE and FCC certification. It is designed for PCs, works with systems such as Novell NetWare 5.x and 6.x, and requires a minimum Intel Pentium III processor at 1 GHz for use.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Cabling technology: 10/100/1000BaseT(X)
- Wake-on-LAN ready: Yes
- Full duplex: Yes
Design
- Component for: PC
- Internal: Yes
- Plug and Play: Yes
- LED indicators: Activity, Link
- Certification: CE, FCC
System requirements
- Windows operating systems supported: Windows 2000, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windo
- Linux operating systems supported: Yes
- Other operating systems supported: Novell NetWare 5.x, Novell NetWare 6.x
- Minimum processor: Intel Pentium III 1G+
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 64 mm
- Depth: 39 mm
- Weight: 50 g
Logistics data
- Harmonized System (HS) code: 85176990
