Intel I350T2V2 network card Internal Ethernet 1000 Mbit/s

Name: Intel I350T2V2 network card Internal Ethernet 1000 Mbit/s
Brand: INTEL
SKU: 68322
Price: 116.62 EUR
Availability: InStock

More info

Brand: INTEL

116.62 €

96.38 € without VAT

Stock available: 9 units.

Get it on the September 8 / September 9

SKU: 74493 PRC: 68322 EAN: 735858286091 PN: I350T2V2

Description

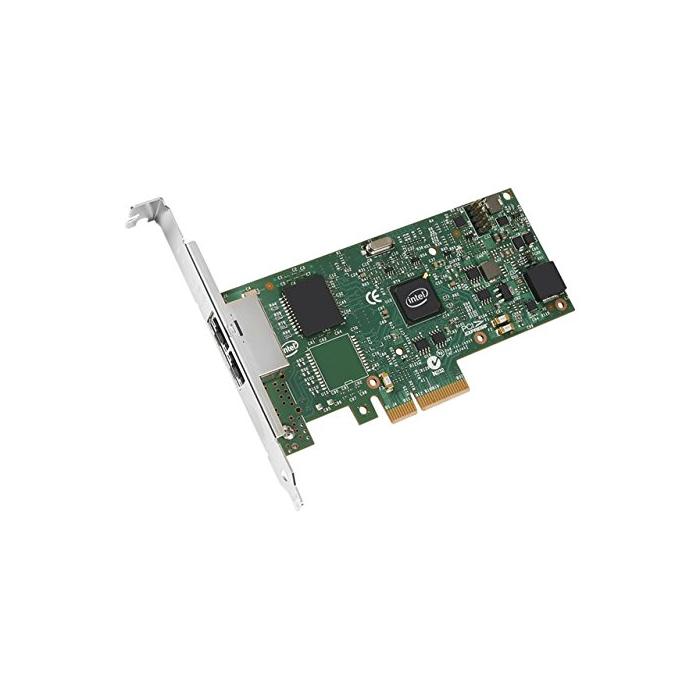

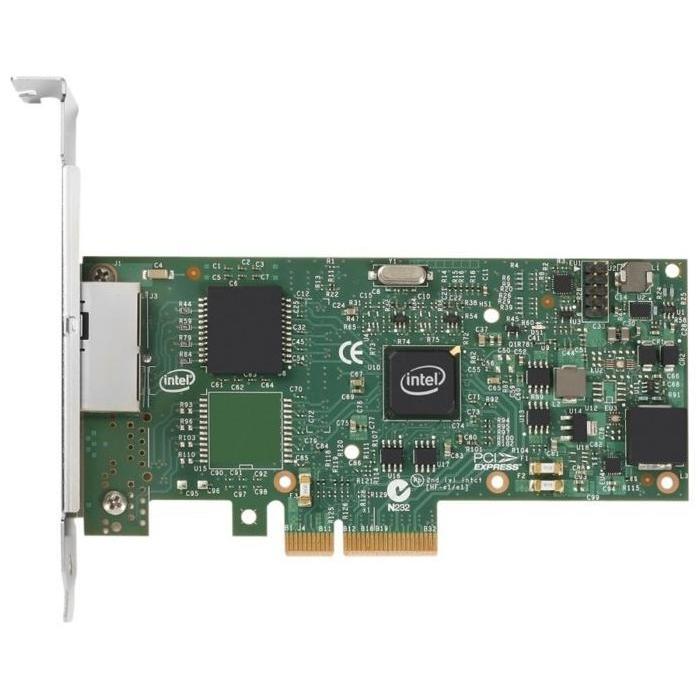

Internal Intel I350T2V2 network card for servers, with dual RJ-45 Ethernet ports and a transfer speed of 1000 Mbit/s on each via the 10/100/1000BaseT(X) standard. Its interface is PCI Express and it offers wired connectivity with full duplex support, reaching a maximum operating distance of 100 metres. It includes the Intel I350 controller and is compatible with TCP, UDP and IP network protocols, as well as complying with IEEE 802.1as, 802.1Q, 802.3, 802.3ab, 802.3az, 802.3u, 802.3x and 802.3z standards. This full-height card integrates internally into the system, providing reliable Ethernet connectivity for demanding network environments.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 2.1
PCI Card form factor: Full-height (low-profile)

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Full duplex: Yes
Supported network protocols: TCP, UDP, IP
Maximum operating distance: 100 m
LAN controller: Intel® I350

Design

Component for: Server
Internal: Yes
Chipset: Intel® I350

Power

Power consumption (typical): 5 W

System requirements

Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 35 - 90%

Weight & dimensions

Width: 68.9 mm
Depth: 135.4 mm
Height: 120 mm

Packaging content

Manual: Yes

Logistics data

Harmonized System (HS) code: 8517620090

Other features

Interface type: PCIe v2.1 (5.0 GT/s)
Product type: Network Interface Card
Thermal Design Power (TDP): 4.4 W
Processor family: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Launch date: Q3'14
Network interface card cable medium: Copper
Network interface card type: Server
Product brief URL: http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Status: Launched
Last change: 63903513
Ethernet adapter ARK ID: 84804
Storage Over Ethernet: iSCSI, NFS
Export Control Classification Number (ECCN): 5A991.B.4.A
Commodity Classification Automated Tracking System (CCATS): NA
Controller type: Intel I350
Cabling type: Cat 5 up to 100m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel Gigabit server adapter
Product series: Intel® I350
Product codename: Powerville
Cable type: Cat 5 up to 100m
Market segment: Server
Intel Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes
On-chip QoS and Traffic Management: Yes
Intel Flexible Port Partitioning: Yes
Storage-over-ethernet: Yes
Speed & slot width: 5.0 GT/s, x4 Lane
Low halogen options available: No
Intelligent Offloads: Yes
iWARP/RDMA: No
Intel Ethernet Power Management: Yes
Intel Virtualization Technology for Connectivity (VT-c): Yes
