Intel I350T4V2BLK network card Internal Ethernet 1000 Mbit/s

Name: Intel I350T4V2BLK network card Internal Ethernet 1000 Mbit/s
Brand: INTEL
SKU: 52535
Price: 217.56 EUR
Availability: InStock

More info

Brand: INTEL

217.56 €

179.80 € without VAT

Stock available: 1 ud.

Get it on the September 8 / September 9

SKU: 88127 PRC: 52535 EAN: 675901290500 PN: I350T4V2BLK

Description

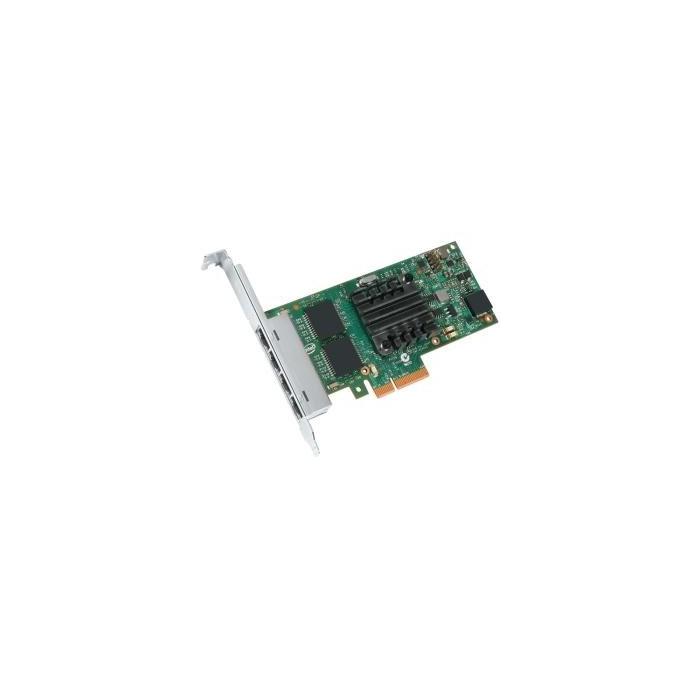

Intel I350T4V2BLK internal network card with PCI Express interface and full-height form factor, designed for servers and equipment requiring high-density Ethernet connectivity. It incorporates four RJ-45 ports with speeds of 10, 100 and 1000 Mbit/s, operating in full duplex mode and with 10/100/1000BaseT(X) cabling technology. Its Intel I350 LAN controller manages traffic at a maximum speed of 1000 Mbit/s over distances of up to 100 metres, and is compatible with TCP, UDP and IP protocols, as well as with IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x and IEEE 802.3z standards. Its PCI 2.1 version ensures stable integration on compatible motherboards.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 4
PCI version: 2.1
PCI Card form factor: Full-height (low-profile)

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Full duplex: Yes
Supported network protocols: TCP, UDP, IP
Maximum operating distance: 100 m
LAN controller: Intel® I350

Design

Component for: Server
Internal: Yes
Chipset: Intel® I350

Power

Power consumption (typical): 5 W

System requirements

Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 35 - 90%

Weight & dimensions

Width: 68.9 mm
Depth: 135.4 mm

Logistics data

Harmonized System (HS) code: 85176990

Other features

Cable type: Cat 5 up to 100m
Market segment: Server
Intel Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes
On-chip QoS and Traffic Management: Yes
Intel Flexible Port Partitioning: Yes
Storage-over-ethernet: Yes
Speed & slot width: 5.0 GT/s, x4 Lane
Low halogen options available: No
Intelligent Offloads: Yes
iWARP/RDMA: No
Intel Ethernet Power Management: Yes
Intel Virtualization Technology for Connectivity (VT-c): Yes
Interface type: PCIe v2.1 (5.0 GT/s)
Product type: Network Interface Card
Thermal Design Power (TDP): 5 W
Processor family: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Launch date: Q3'14
Network interface card cable medium: Copper
Network interface card type: Server
Product brief URL: http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Status: Launched
Last change: 63903513
Ethernet adapter ARK ID: 84805
Storage Over Ethernet: iSCSI, NFS
Export Control Classification Number (ECCN): 5A991
Commodity Classification Automated Tracking System (CCATS): NA
Controller type: Intel I350
Cabling type: Cat 5 up to 100m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel Gigabit server adapter
Product series: Intel® I350
Product codename: Powerville
