Description

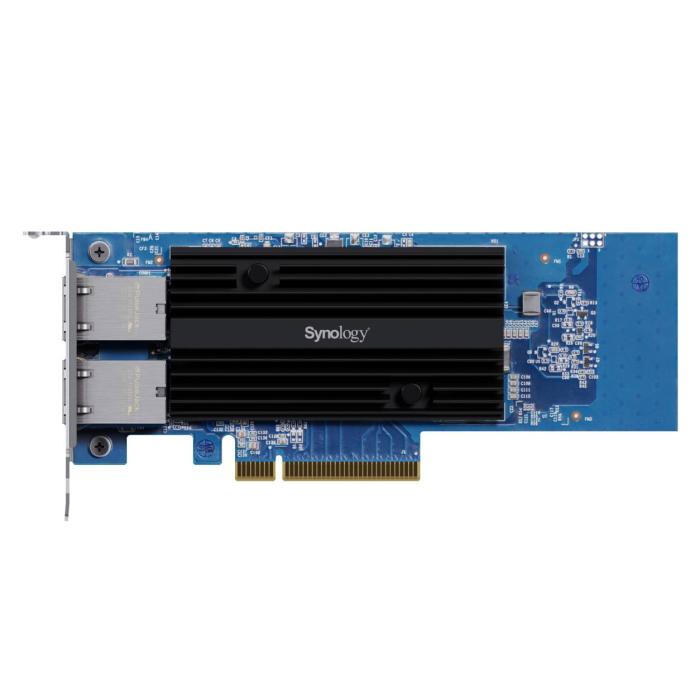

Internal Synology E10G30-T2 network card with PCI Express 3.0 interface and full-height or low-profile form factor, designed for servers and workstations. It features two RJ-45 Ethernet ports supporting speeds of 100, 1000, and 10000 Mbit/s, with fully wired connectivity and full duplex support. Its blue and multicolour design complies with IEEE 802.3ab, IEEE 802.3an, and IEEE 802.3x standards, offering a maximum data transfer rate of 10 Gbps via 10/100/1000BaseT(X) cabling technology. It operates within a temperature range of 0 to 40 °C and tolerates storage relative humidity between 5 and 95%, making it suitable for professional environments.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 2
- PCI version: 3.0
- PCI Card form factor: Full-height (low-profile)
Network
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3x
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 100, 1000, 10000 Mbit/s
- Cabling technology: 10/100/1000BaseT(X)
- Full duplex: Yes
Design
- Component for: Server/workstation
- Product colour: Blue, Multicolour
- Internal: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 8 - 80%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 167.7 mm
- Depth: 14.7 mm
- Height: 68.9 mm
