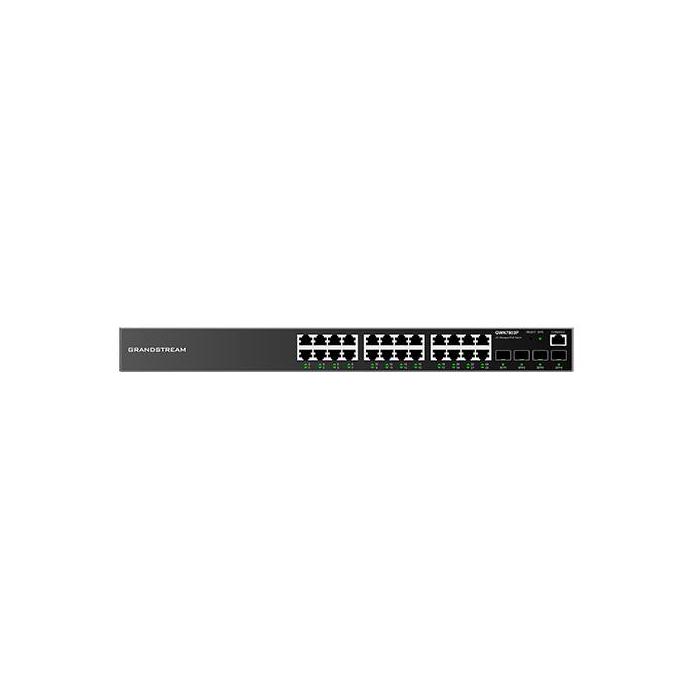

Grandstream Networks GWN7803 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
More info
Brand: GRANDSTREAM NETWORKS
194.04 €
160.36 €
without VAT
Stock available: 3 units.
Get it
on the
September 1
/
September 2
SKU:
98641
PRC:
428466
EAN:
6947273704263
PN:
GWN7803
Description
Managed switch from the GWN7803 series by Grandstream Networks, an L2+ model with 24 RJ-45 Gigabit Ethernet ports and 4 SFP modules for fibre links. Its configuration is fully flexible thanks to web-based management and a command-line interface (CLI), ideal for networks requiring precise control. It offers support for up to 4000 VLANs, quality of service (QoS), rate limiting, port mirroring and spanning tree protocol, along with auto-negotiation and link detection for efficient traffic management. This unit in black incorporates IP routing and complies with IEEE 802.3, 802.3ab, 802.3at, 802.3i, 802.3p, 802.3u, 802.3x and 802.3z standards.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity: 4
Network
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-sensing: Yes
- Auto-negotiation: Yes
- Active link detection: Yes
- VLAN support: Yes
- Number of VLANs: 4000
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- IP routing: Yes
- Rate limiting: Yes
Data transmission
- Switching capacity: 56 Gbit/s
- Throughput: 28 Gbit/s
- Forwarding rate: 41.66 Mpps
- Store-and-forward: Yes
- Static route: Yes
- Number of static routes: 8000
Security
- DHCP features: DHCP snooping, DHCP relay, DHCPv6 snooping, DHCP server
- Access Control List (ACL): Yes
- Access Control List (ACL) rules: 1500
- IGMP snooping: Yes
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- IP-MAC-Port binding: Yes
- Password protection: Yes
- Authentication type: IEEE 802.1x
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black
- LED indicators: Yes
- Number of fans: 0 fan(s)
Power
- Power source: AC
- Power supply included: Yes
- Power consumption (typical): 30 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Weight & dimensions
- Width: 200 mm
- Depth: 44 mm
- Height: 440 mm
- Weight: 2.7 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
