Description

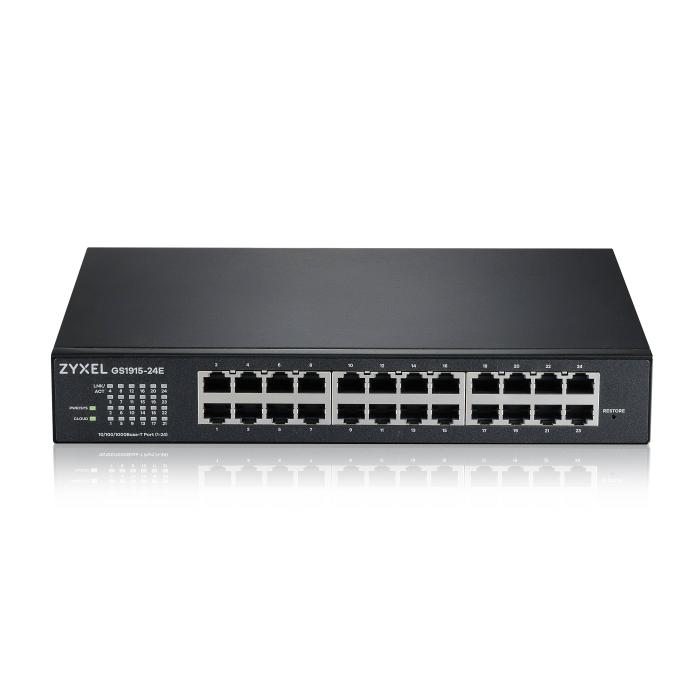

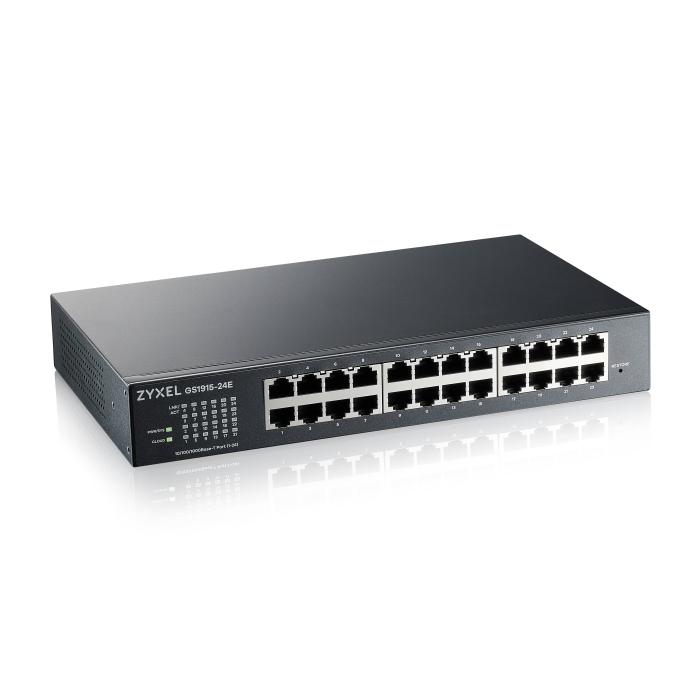

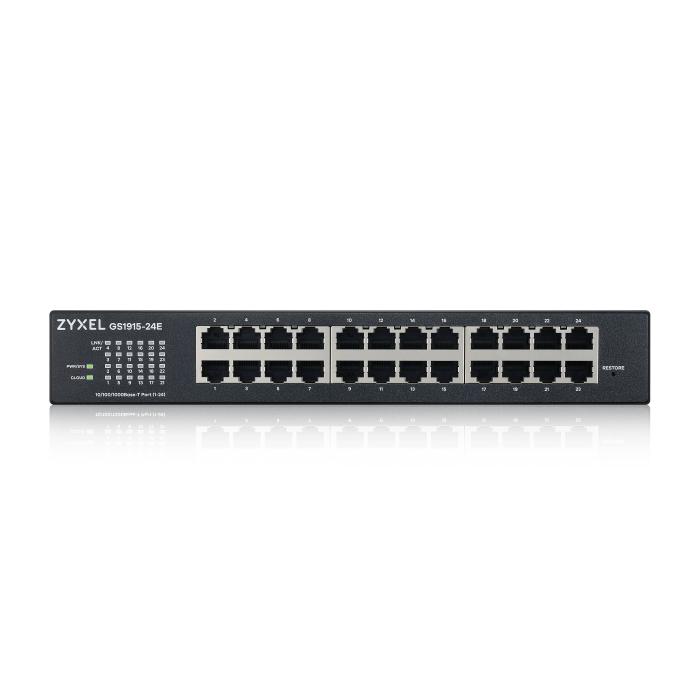

The Zyxel GS1915-24E is a managed Layer L2 switch with 24 Gigabit Ethernet (10/100/1000) RJ-45 ports, in black and 1U format. It incorporates web-based management functions, cloud management and MIB support to integrate it into your network infrastructure. It offers quality of service (QoS), VLAN support and virtual LAN functions with Port-based VLAN, as well as spanning tree protocol. In the connection section it includes storm transmission control, flow control and port mirroring, with transfer speeds of 100 and 1000 Mbit/s. It complies with the IEEE 802.1p, 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u and 802.3x standards, and incorporates Jumbo Frames support. Its dimensions are 267 x 42 x 162 mm (width x height x depth) and its weight is 1.57 kg, which facilitates its rack installation.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Port mirroring: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 100,1000 Mbit/s
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN
Data transmission
- Switching capacity: 48 Gbit/s
- Forwarding rate: 35.7 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 525 MB
Security
- DHCP features: DHCP client, DHCP relay
- IGMP snooping: Yes
- Security algorithms: HTTPS, SHA-2, SSH-2, SSL/TLS
- SSH/SSL support: Yes
- Loop protection: Yes
- Password protection: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP v1, v2c, v3
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
- Wall mountable: Yes
- Number of fans: 0 fan(s)
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 674068 h
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 15.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Heat dissipation: 53 BTU/h
Weight & dimensions
- Width: 267 mm
- Depth: 162 mm
- Height: 42 mm
- Weight: 1.57 kg
Packaging data
- Package width: 325 mm
- Package depth: 223 mm
- Package height: 71 mm
- Package weight: 2.05 kg
