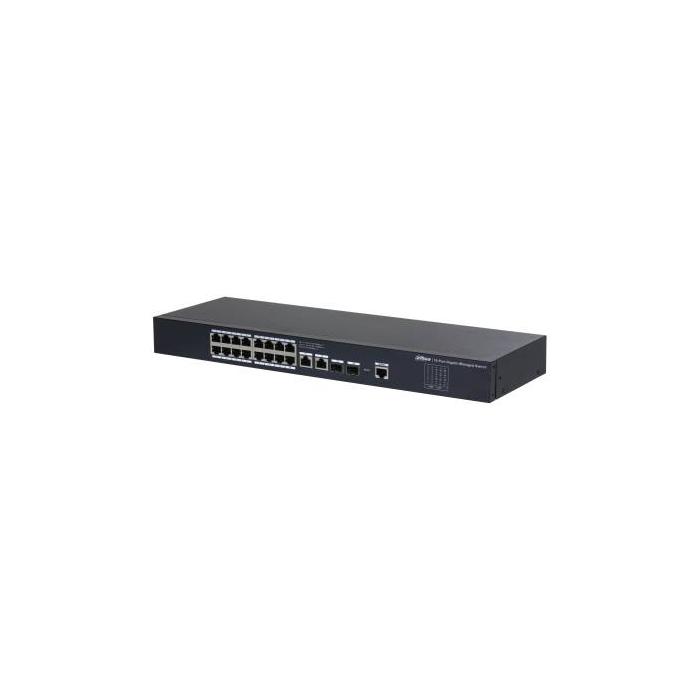

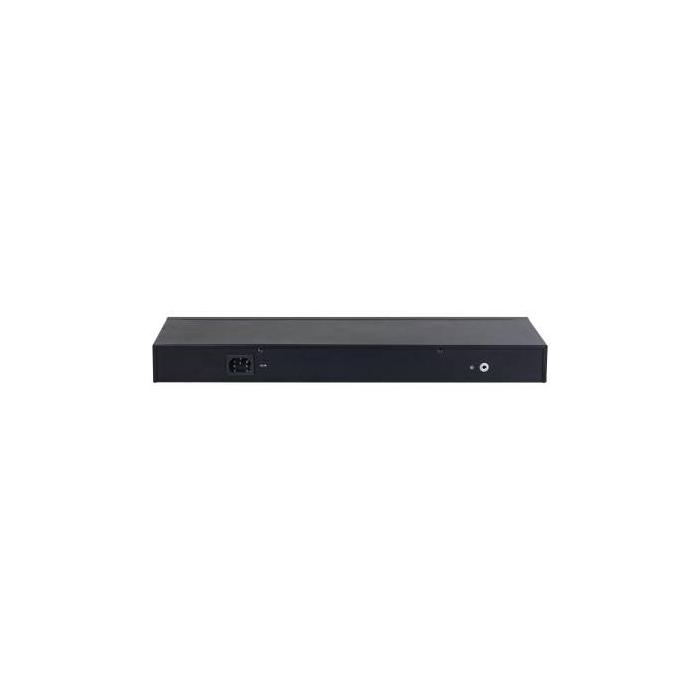

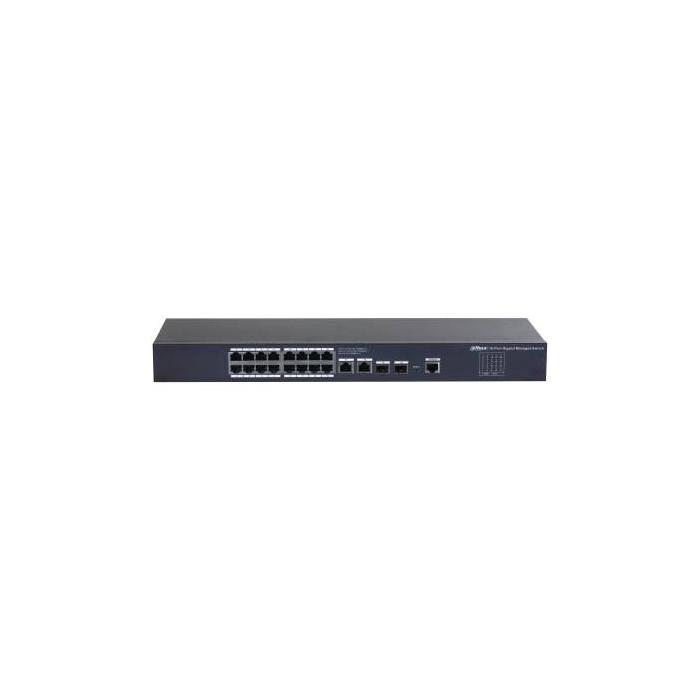

Dahua Technology SG4020 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

$89.51
$89.51 without VAT

Dahua Technology SG4020 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black.   More info

Brand: DAHUA TECHNOLOGY
SKU: 103280 PRC: 465811 EAN: 6923172593948 PN: dh-sg4020

Description

18 x RJ45 10/100/1000Mbps, 2 x SFP 1000Mbps, 1 x Console, 56 Gbps, 29.76 Mpps, 4.1 Mbit, 8K MAC, 1.57 kg

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: No

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 18
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 18
  • SFP module slots quantity: 2
  • Console port: RJ-45

Network

  • Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN, Tagged VLAN
  • Number of VLANs: 4000

Data transmission

  • Switching capacity: 56 Gbit/s
  • Forwarding rate: 29.76 Mpps
  • MAC address table: 8000 entries
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 4.1 MB

Security

  • DHCP features: DHCP client, DHCP server, DHCP snooping
  • IGMP snooping: Yes

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • Reset button: Yes
  • LED indicators: Yes

Performance

  • Fanless: Yes
  • Mean time between failures (MTBF): 467125.73 h

Power

  • Power source: DC
  • Power supply included: Yes
  • DC input voltage: 12 V
  • Power consumption (max): 24 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): -10 - 55 °C
  • Storage temperature (T-T): -40 - 75 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 163.8 mm
  • Depth: 440 mm
  • Height: 43.6 mm
  • Weight: 1.57 kg

Packaging data

  • Package width: 271 mm
  • Package depth: 520 mm
  • Package height: 107 mm
  • Package weight: 2.25 kg

Sustainability

  • Sustainability compliance: Yes

Certificates

  • Compliance certificates: CE
