Grandstream Networks GWN7802P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black

Grandstream Networks GWN7802P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black

Name: Grandstream Networks GWN7802P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
Brand: GRANDSTREAM NETWORKS
SKU: 434881
Price: 247 EUR
Availability: OutOfStock

More info

Brand: GRANDSTREAM NETWORKS

247,00 €

Stock available: 0 units.

Unavailable

SKU: 99804 PRC: 434881 EAN: 6947273704256 PN: GWN7802P

Description

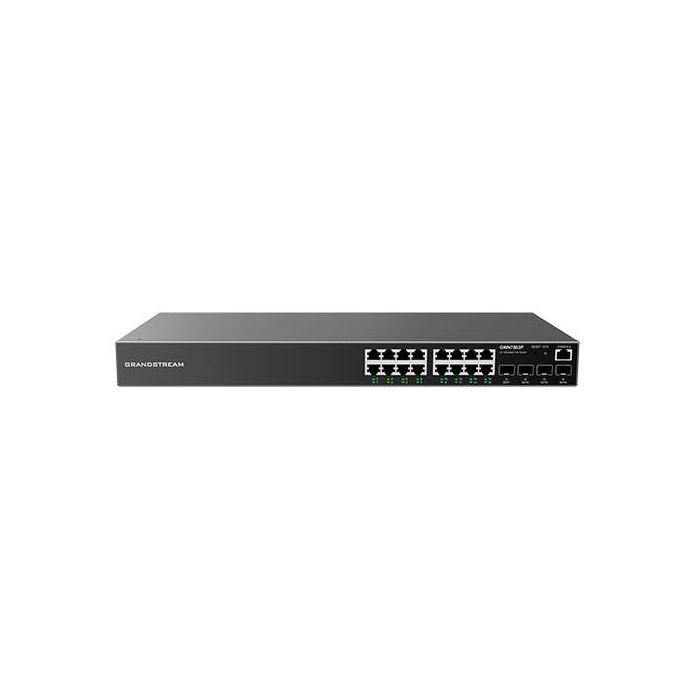

The GWN7802P managed L2+ switch from Grandstream Networks, in a 2U format with a black finish, offers 16 RJ-45 Gigabit Ethernet (10/100/1000) ports with PoE support to power network devices directly from the unit. It includes 4 installed SFP modules for additional links and a switching capacity of 40 Gbit/s with a forwarding rate of 29.76 Mpps. Its advanced management relies on web administration and CLI, along with features such as QoS, traffic classification, voice or port-based VLANs, port mirroring, and rate limiting. Compliant with IEEE 802.3 standards, it includes 10G support and is suitable for networks requiring control and flexibility.

Specifications

Management features

Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic shaping: Yes
Configuring Location Settings (CLI): Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 4

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support: Yes
Port mirroring: Yes
Rate limiting: Yes
Ethernet LAN data rates: 1000 Mbit/s
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Voice VLAN

Data transmission

Switching capacity: 40 Gbit/s
Forwarding rate: 29.76 Mpps
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP relay, DHCP server
IGMP snooping: Yes
Security algorithms: SNMP
MAC address filtering: Yes
SSH/SSL support: Yes
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: SP, WFQ, WFQ+SP, WRR+SP
MAC address entries: Dynamic MAC address entries, Static MAC address entries

Multicast features

Multicast support: Yes

Protocols

Supported network protocols: Pv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.
