Description

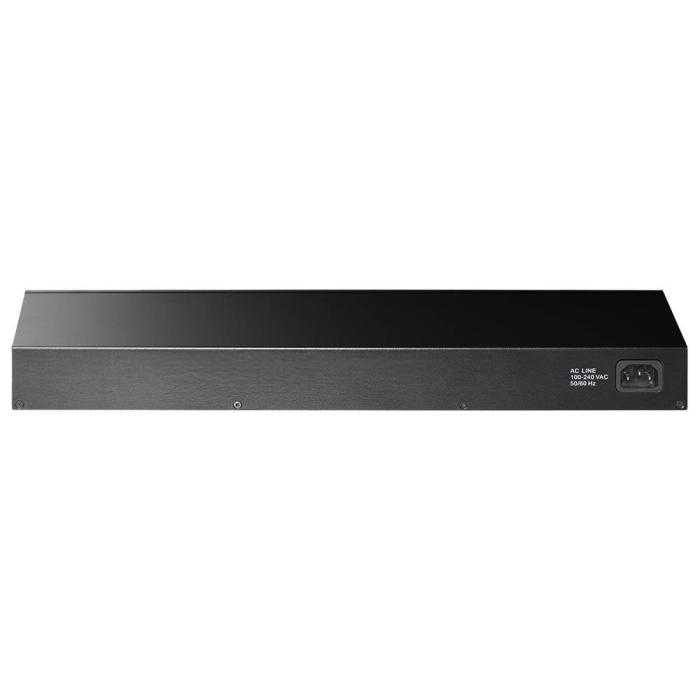

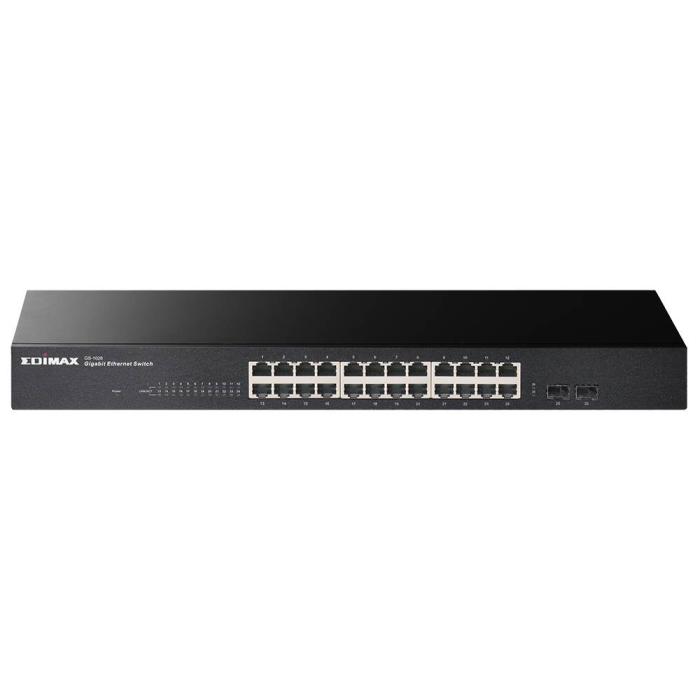

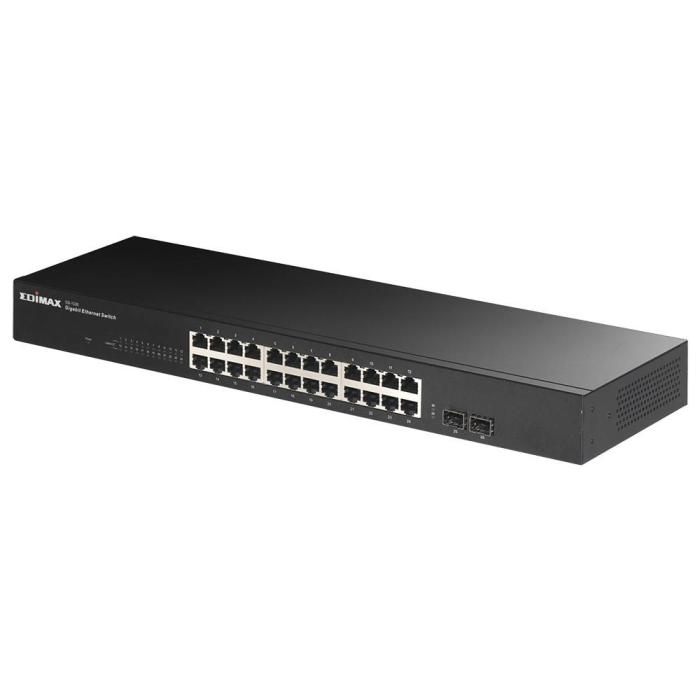

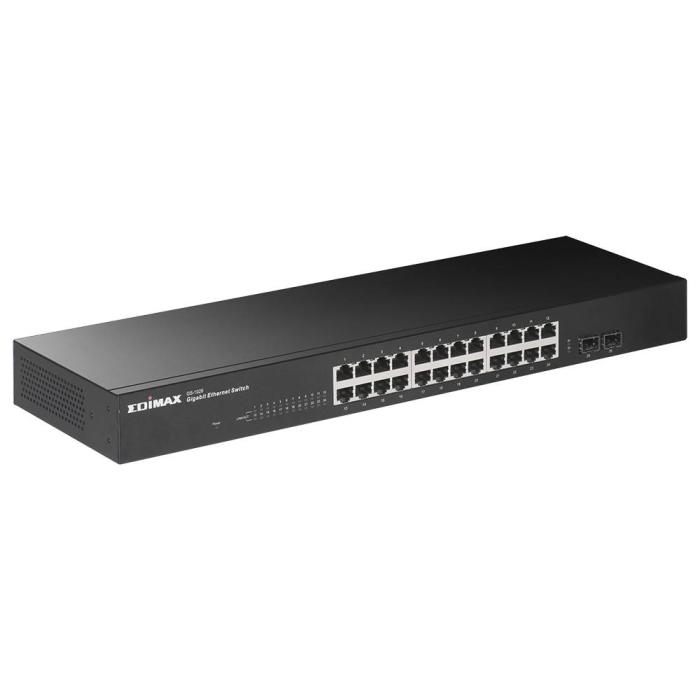

This Edimax GS-1026 V6 unmanaged Gigabit Ethernet switch in black offers 24 RJ-45 ports with speeds of 10/100/1000 Mbit/s and 2 SFP slots for fibre. With support for Quality of Service (QoS) and cable length detection, it facilitates network traffic management in office or home environments. Regarding standards, it complies with IEEE 802.3, 802.3ab, 802.3az, 802.3p, 802.3u, 802.3x and 802.3z, including auto-negotiation, auto-MDI/MDI-X and flow control in full duplex mode. Its MAC address table reaches 8000 entries and operates with a forwarding rate of 38.6 Mpps.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-negotiation: Yes
- Cable length detection: Yes
Data transmission
- Switching capacity: 52 Gbit/s
- Forwarding rate: 38.6 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 4.1 MB
Design
- Rack mounting: Yes
- Stackable: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Link, Power
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 441 mm
- Depth: 131 mm
- Height: 44 mm
- Weight: 1.83 kg
Packaging content
- User guide: Yes
- Rack mount kit: Yes
Certificates
- Compliance certificates: CE
Logistics data
- Harmonized System (HS) code: 85176990
