Name: D-Link 8-Port PoE Gigabit Smart Managed Switch
Brand: D-LINK
Availability: OutOfStock

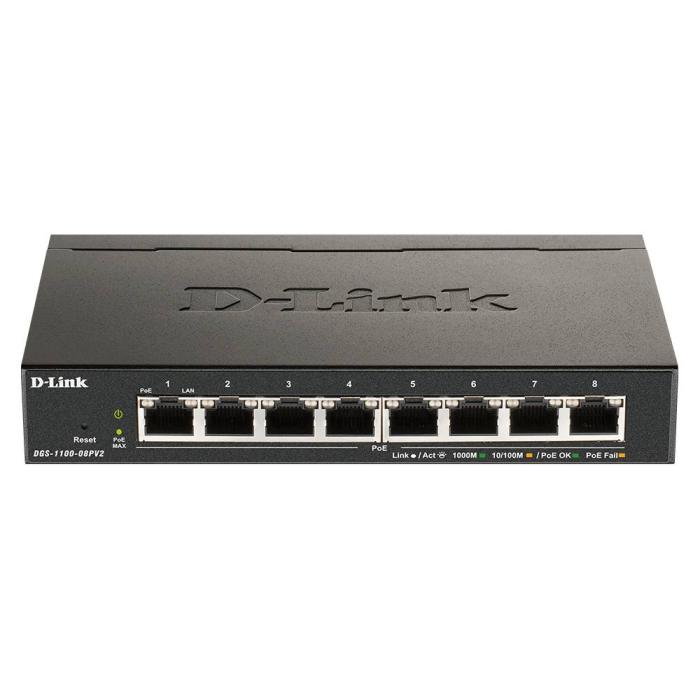

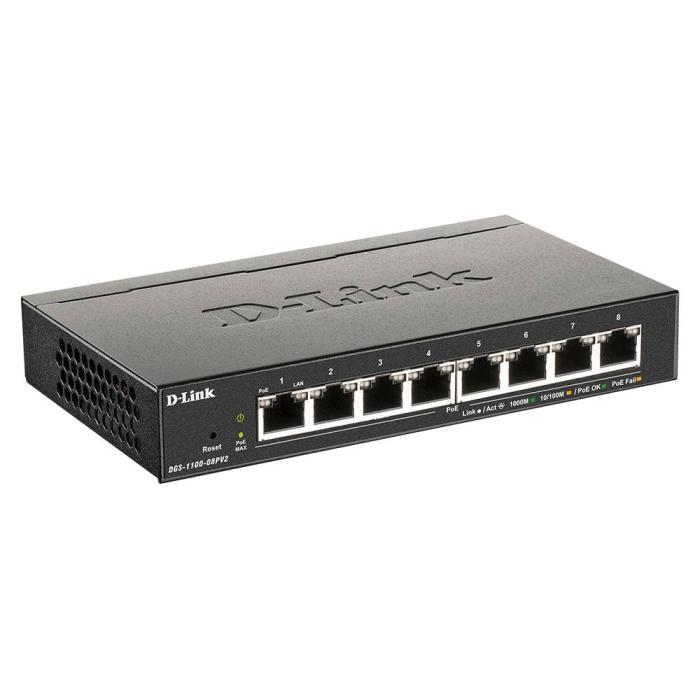

D-Link 8-Port PoE Gigabit Smart Managed Switch

Not avaliable

D-Link 8-Port PoE Gigabit Smart Managed Switch. More info

Amount

Brand: D-LINK

SKU: 87025 PRC: 309667 EAN: 790069453311 PN: DGS-1100-08PV2

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Half duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4096 entries
Number of queues: 4
Jumbo frames support: Yes
Jumbo frames: 9216

Security

IGMP snooping: Yes
Loop protection: Yes
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Design

Rack mounting: No
Product colour: Black
LED indicators: Yes

Performance

Fanless: Yes
Mean time between failures (MTBF): 786841 h
Flash memory: 2 MB

Power

Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 77.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 64 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 265.85 BTU/h

Weight & dimensions

Width: 171 mm
Depth: 97.8 mm
Height: 28.6 mm
Weight: 430 g

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: CE, RoHS
Certification: FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI

Logistics data

Harmonized System (HS) code: 85176990
