Description

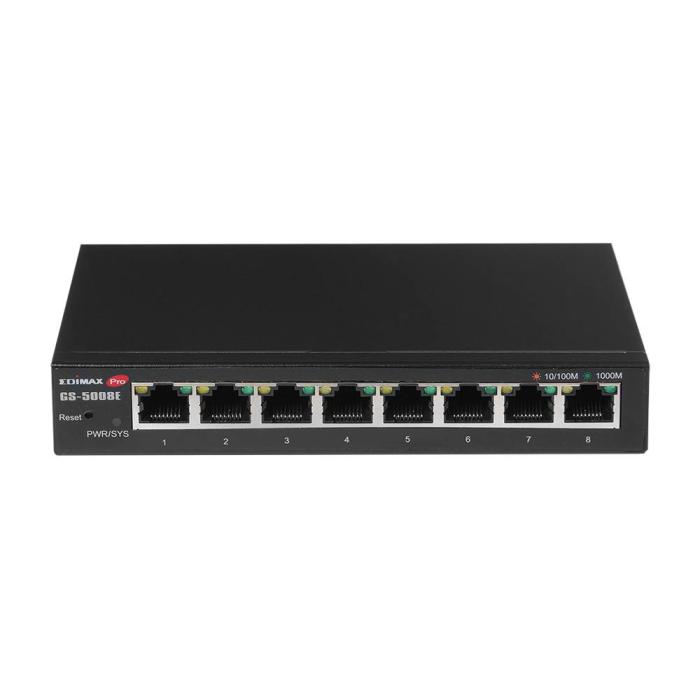

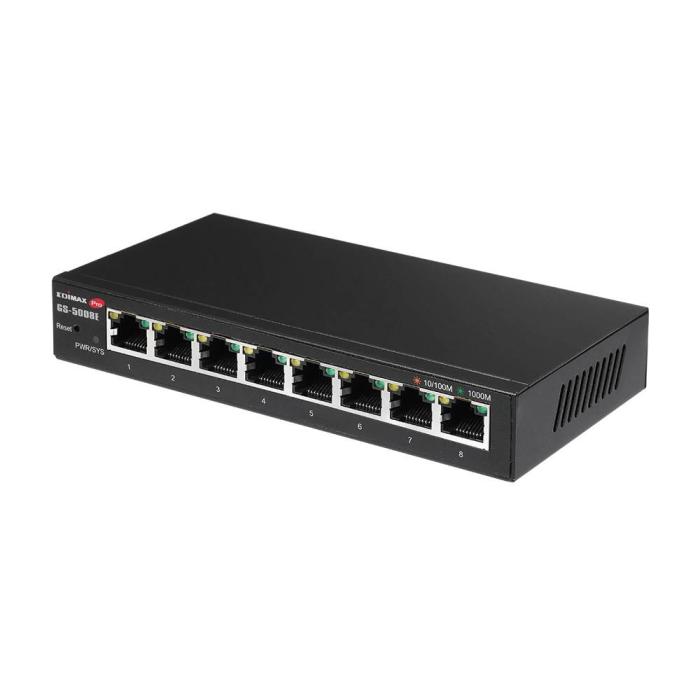

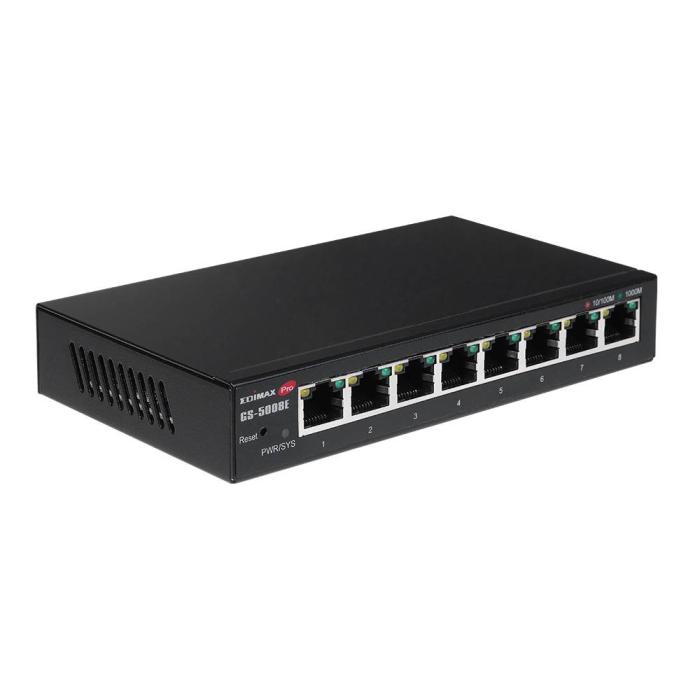

Connect up to eight network devices with the Edimax GS-5008E managed switch, a Gigabit Ethernet model in black offering speeds of 10/100/1000 Mbps. Its web-based management lets you configure advanced features such as support for 8 VLANs, Quality of Service (QoS) and storm control, as well as port mirroring and link aggregation to optimise your infrastructure. With store-and-forward mode, a MAC address table of 4000 entries and support for jumbo frames of 9000 bytes, this managed hub maintains efficient packet forwarding. Compatible with IEEE 802.1Q, 802.1p, 802.3, 802.3ab, 802.3ad, 802.3az, 802.3u and 802.3x standards, it is a solid option for expanding your local network with control and reliability.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- VLAN support: Yes
- Number of VLANs: 8
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet buffer memory: 1.53 MB
Security
- IGMP snooping: Yes
- Loop protection: Yes
- Queue scheduling algorithms: Strict Priority Queue (SPQ), WFQ
Multicast features
- Multicast support: Yes
- Multicast features: Multicast traffic suppression
Design
- Product colour: Black
- Housing material: Metal
- Reset button: Yes
- LED indicators: Yes

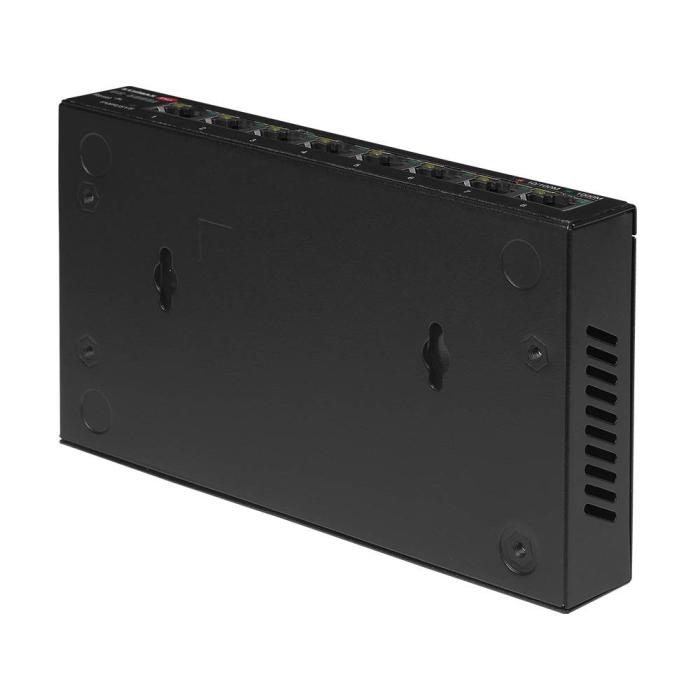

- Wall mountable: Yes
Performance
- Fanless: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 155 mm
- Depth: 85 mm
- Height: 26 mm
- Weight: 325 g
Certificates
- Certification: CE, FCC, BSMI
