Description

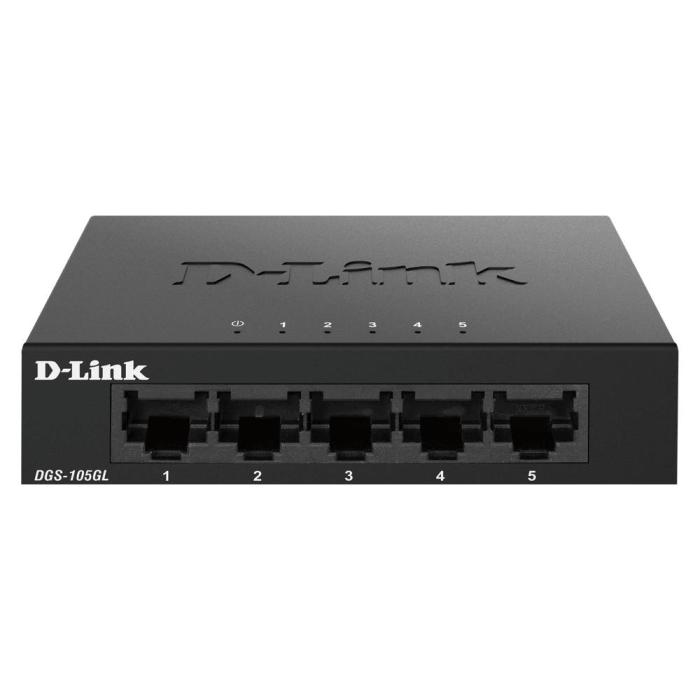

The D-Link DGS-105GL is an unmanaged desktop switch with five Gigabit Ethernet RJ-45 ports (10/100/1000) and a black finish. Its metal casing adds to the robustness of the unit and allows it to be stacked if you need to expand the installation. It includes QoS support, flow control and auto MDI/MDI-X, so you will not have to worry about the type of cable when connecting each device. It complies with the IEEE 802.1p, 802.3, 802.3ab, 802.3az, 802.3u and 802.3x standards, and works with 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling. It offers a switching capacity of 10 Gbit/s and a forwarding rate of 7.44 Mpps with eight queues and a MAC address table of 2000 entries. It supports Jumbo frames of up to 9216 bytes with store and forward method. It measures 100 x 24 x 64 mm (width x height x depth) and weighs 160 g, so it takes up very little space on the desk.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Auto MDI/MDI-X: Yes
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Flow control support: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.44 Mpps
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Number of queues: 8
- Jumbo frames support: Yes
- Jumbo frames: 9216
Design
- Stackable: Yes
- Form factor: Desktop
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, Power
Performance
- Mean time between failures (MTBF): 1455562 h
Power
- Power source: DC
- DC input voltage: 5 V
- Input current: 1 A
- Power consumption (max): 3.55 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 12.11 BTU/h
Weight & dimensions
- Width: 100 mm
- Depth: 64 mm
- Height: 24 mm
- Weight: 160 g
Certificates
- Certification: CE; FCC; RoHS
