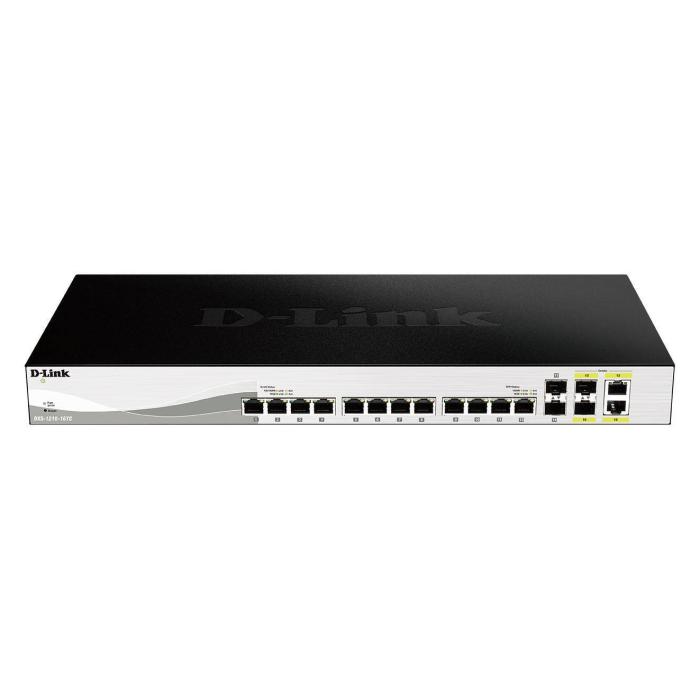

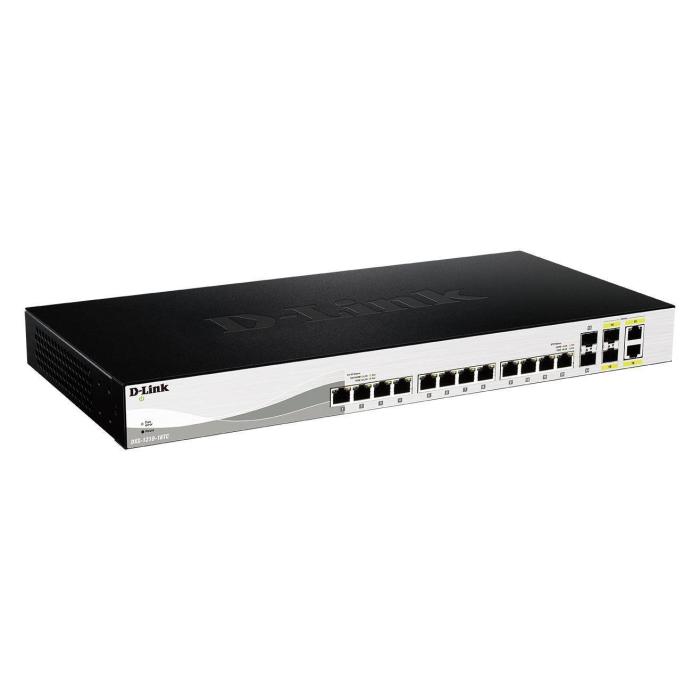

Name: D-Link 12-port 10GBASE-T, 2-port SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch
Brand: D-LINK
Availability: OutOfStock

D-Link 12-port 10GBASE-T, 2-port SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch

Not avaliable

D-Link 12-port 10GBASE-T, 2-port SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch. More info

Amount

Brand: D-LINK

SKU: 113453 PRC: 139774 EAN: 790069428548 PN: DXS-1210-16TC

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
System event log: Yes
MIB support: RFC 783, RFC 951, RFC 1157, RFC 1213, RFC 1215, RFC 1350, RFC 1493, RFC 1769, RFC 1542, RFC 1901, RFC 1907, RFC 1908, RFC 2131,

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Combo SFP ports quantity: 2
SFP+ module slots quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 80
10G support: Yes
Copper ethernet cabling technology: 10GBASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Flow control support: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes
Virtual LAN features: Voice VLAN, MAC address-based VLAN, Port-based VLAN

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X

Data transmission

Switching capacity: 320 Gbit/s
Forwarding rate: 238.08 Mpps
MAC address table: 16000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 16000

Security

DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
Access Control List (ACL) rules: 256
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SNMP, SSL/TLS
IP-MAC-Port binding: Yes

Multicast features

Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: MLD v

Protocols

Supported network protocols: IPv4, IPv6

Design

Rack mounting: Yes
Product colour: Black
LED indicators: Activity, Link, Power, Speed
Safety: cUL, CB, CE, CCC, BSMI

Performance

Built-in processor: Yes

Power

AC input voltage: 120 - 230 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 90.81 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 440 mm
Depth: 210 mm
Height: 44 mm
Weight: 3.15 kg

Packaging data

Package width: 349 mm
Package depth: 546 mm
Package height: 96 mm
Package weight: 4.53 kg

Technical details

Shipping (inner) case height: 38.3 cm
Shipping (inner) case width: 31.4 cm
Shipping (inner) case length: 56.2 cm
Shipping (inner) case net weight: 13.6 kg
Products per shipping (inner) case: 3 pc(s)
Pallet gross weight (air): 281.1 kg
Master (outer) cases per pallet (air): 18 pc(s)
Products per pallet (air): 54 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 128.4 cm
Pallet gross weight (sea): 456 kg
Master (outer) cases per pallet (sea): 30 pc(s)
Products per pallet (sea): 90 pc(s)
Pallet height (sea): 2.05 m
Shipping (inner) case gross weight: 14.5 kg

Certificates

Certification: CE, FCC, C-Ticket, VCCI, BSMI, CCC

Logistics data

Harmonized System (HS) code: 85176990
