D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch

Return

Product 1 image

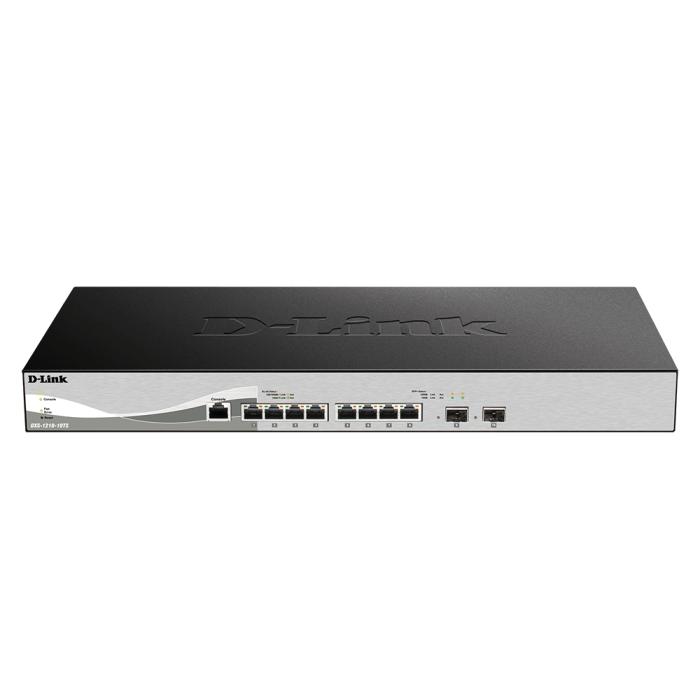

D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch

Not avaliable

D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch. More info

Amount

Brand: D-LINK

SKU: 74854 PRC: 73308 EAN: 790069409325 PN: DXS-1210-10TS

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
MIB support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 2
Fiber optic connector: SFP+
Console port: RJ-45

Network

Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
10G support: Yes
Cable types supported: Cat6
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s
VLAN support: Yes
Number of VLANs: 4094

Data transmission

Switching capacity: 200 Gbit/s
Forwarding rate: 148.8 Mpps
MAC address table: 32000 entries
Store-and-forward: Yes
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 10000

Security

DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Loop protection: Yes
Password protection: Yes

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black, Silver
LED indicators: Yes
Number of fans: 1 fan(s)

Performance

Noise level: 46.6 dB

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 43.26 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 330 mm
Depth: 200 mm
Height: 44 mm
Weight: 2.17 kg

Packaging content

Quick start guide: Yes

Certificates

Certification: CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB
