Description

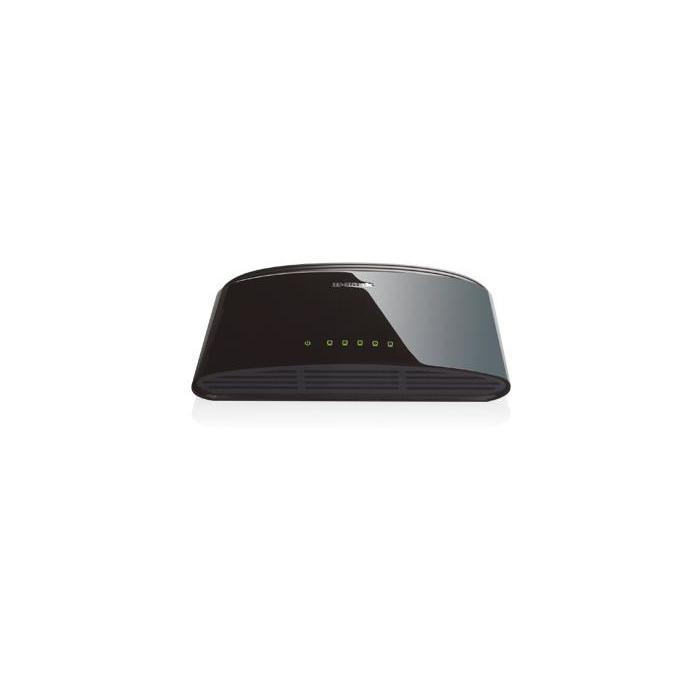

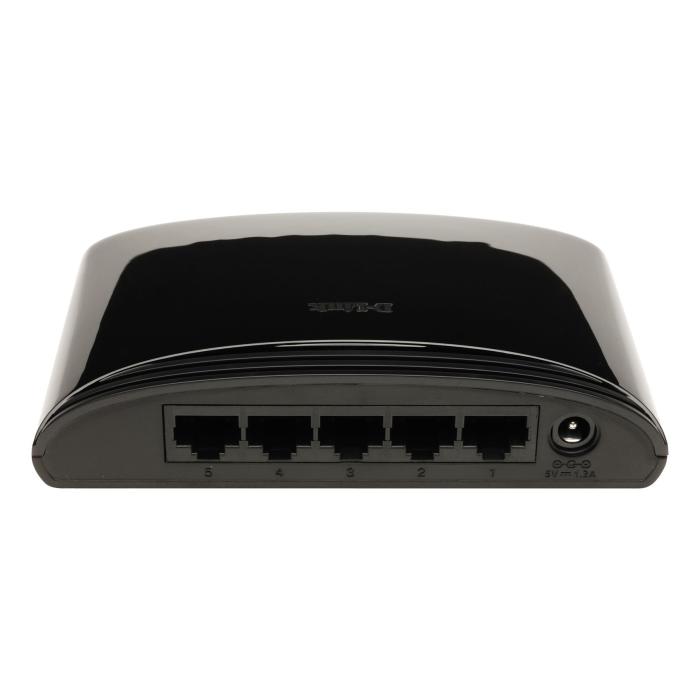

The D-Link DES-1005D switch is an unmanaged black device that expands your local network with five Fast Ethernet (10/100) ports. Connect your equipment using Cat3, Cat4, Cat5 or Cat5e cables and take advantage of auto-negotiation so that each link operates at the appropriate speed. It features auto MDI/MDI-X, so you don't have to worry about the type of cable when linking devices to each other. Flow control and full duplex mode help maintain stable transmission, while MAC address auto-learning manages network traffic. Its switching capacity reaches 1 Gbit/s, with a forwarding rate of 0.1488 Mpps, a table of 2000 entries and a packet buffer memory of 0.046875 MB. It complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards and is powered through a DC input socket. Its dimensions are 125.3 x 29.1 x 83.4 mm (width x height x depth).
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 100Base-TX, 10Base-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
Data transmission
- Supported data transfer rates: 10/20/100/200 Mb/s
- Switching capacity: 1 Gbit/s
- Forwarding rate: 0.1488 Mpps
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Maximum data transfer rate: 0.2 Gbit/s
- Packet buffer memory: 0.046875 MB
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black
- LED indicators: LAN, Power
Performance
- Plug and Play: Yes
Power
- Power consumption (typical): 2.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Packet transfer speed: 14880 - 148800 p/s
- Power LED: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 8.528 BTU/h
Weight & dimensions
- Width: 125.3 mm
- Depth: 83.4 mm
- Height: 29.1 mm
Packaging content
- Cables included: AC
- User guide: Yes
- Manual: Yes
Packaging data
- Package width: 65 mm
- Package depth: 105 mm
- Package height: 98 mm
- Package weight: 170 g
Technical details
- Shipping (inner) case height: 23 cm
- Shipping (inner) case width: 35 cm
- Shipping (inner) case length: 51.5 cm
- Shipping (inner) case net weight: 8.5 kg
- Products per shipping (inner) case: 50 pc(s)
- Pallet gross weight (air): 465.2 kg
- Master (outer) cases per pallet (air): 48 pc(s)
- Products per pallet (air): 2400 pc(s)
- Pallet gross length: 110 cm
- Pallet gross width: 120 cm
- Pallet height (air): 197.5 cm
- Pallet gross weight (sea): 465.2 kg
- Master (outer) cases per pallet (sea): 48 pc(s)
- Products per pallet (sea): 2400 pc(s)
- Pallet height (sea): 197.5 cm
- Shipping (inner) case gross weight: 9.25 kg
Certificates
- Certification: RoHS, FCC, CE
Logistics data
- Harmonized System (HS) code: 85176990
