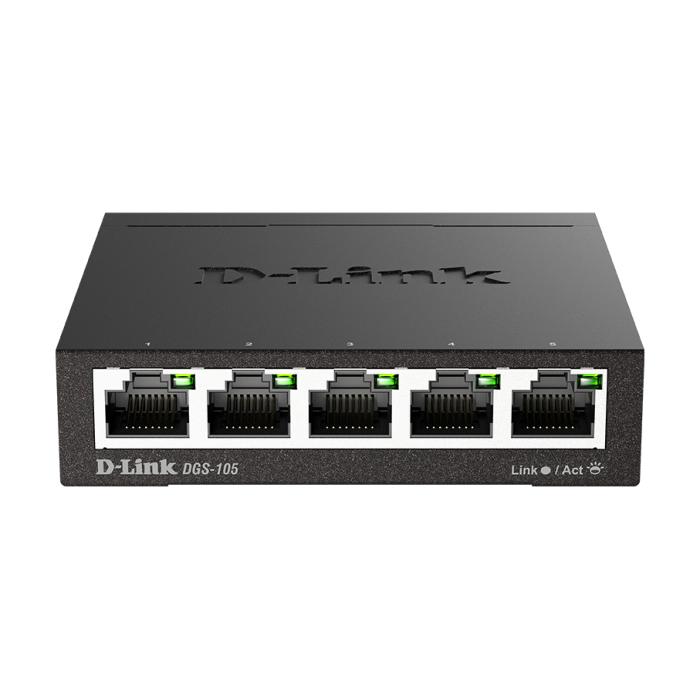

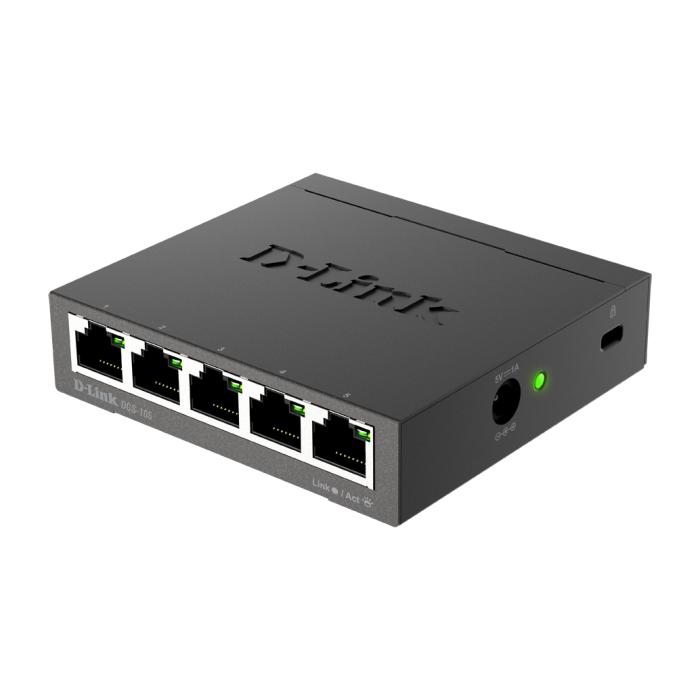

Name: D-Link DGS-105 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Brand: D-LINK
Price: 71 EUR
Availability: InStock

D-Link DGS-105 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

71.00 € ~~76.00 €~~

58.68 € without VAT

Amount

Brand: D-LINK

SKU: 72155 PRC: 35396 EAN: 763615839907 PN: DGS-105

Description

D-Link DGS-105, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex

Specifications

Management features

Switch type: Unmanaged
Switch layer: L2
Quality of Service (QoS) support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

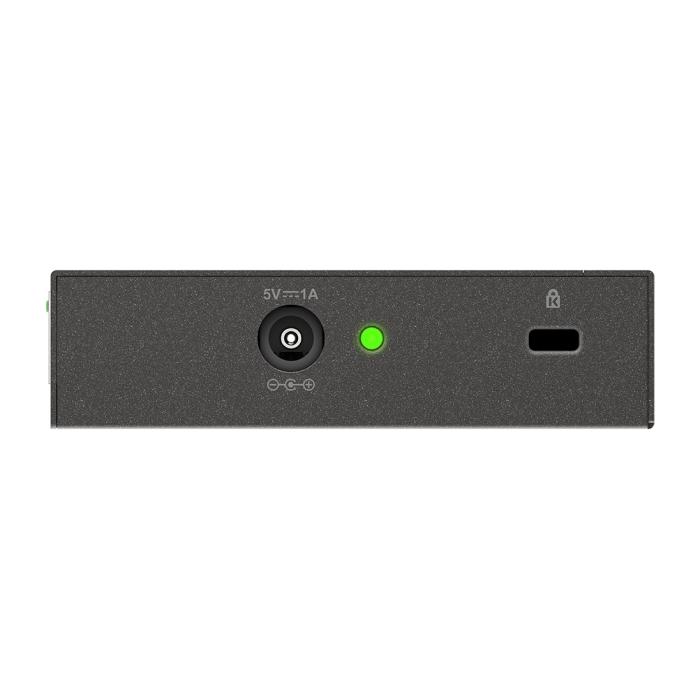

Power connector: DC-in jack

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes

Data transmission

Supported data transfer rates: 10/100/1000 Mbps
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Store-and-forward: Yes
Maximum data transfer rate: 1 Gbit/s
Jumbo frames support: Yes
Packet buffer memory: 0.128 MB

Security

MAC address filtering: Yes

Design

Rack mounting: No
Product colour: Black
Housing material: Metal

Performance

Mean time between failures (MTBF): 1688338 h

Power

Input current: 1 A
Input voltage: 5 V
Power consumption (typical): 2.1 W

Other features

Data transfer rate: 2000 Mbit/s
Dimensions (WxDxH): 100 x 98 x 28 mm
Connectivity technology: Wired

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 100 mm
Depth: 98 mm
Height: 28 mm
Weight: 267 g

Packaging data

Package width: 170 mm
Package depth: 220 mm
Package height: 62 mm
Package weight: 450 g

Technical details

Shipping (inner) case height: 36.6 cm
Shipping (inner) case width: 23 cm
Shipping (inner) case length: 33.5 cm
Shipping (inner) case net weight: 5 kg
Products per shipping (inner) case: 10 pc(s)
Pallet gross weight (air): 439.8 kg
Master (outer) cases per pallet (air): 75 pc(s)
Products per pallet (air): 750 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 110 cm
Pallet height (air): 2.04 m
Pallet gross weight (sea): 439.8 kg
Master (outer) cases per pallet (sea): 75 pc(s)
Products per pallet (sea): 750 pc(s)
Pallet height (sea): 2.04 m
Shipping (inner) case gross weight: 5.53 kg

Certificates

Certification: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS

Logistics data

Harmonized System (HS) code: 85176990
