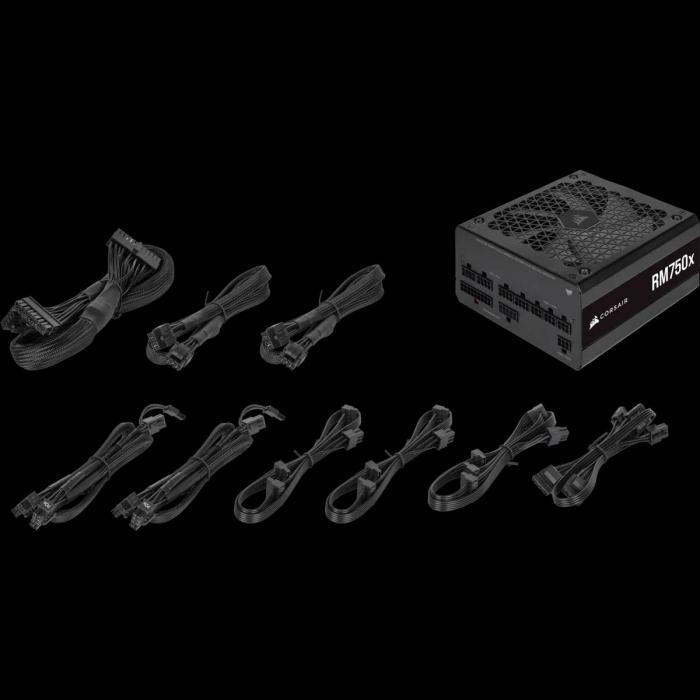

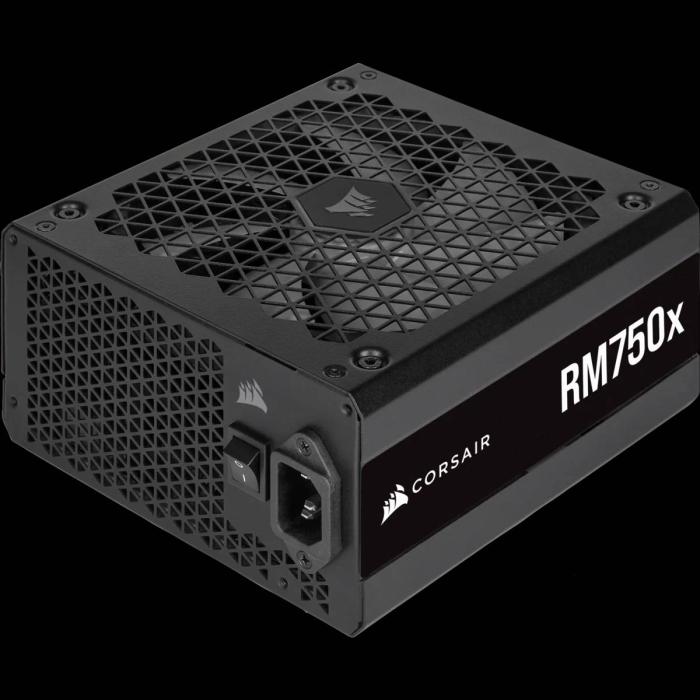

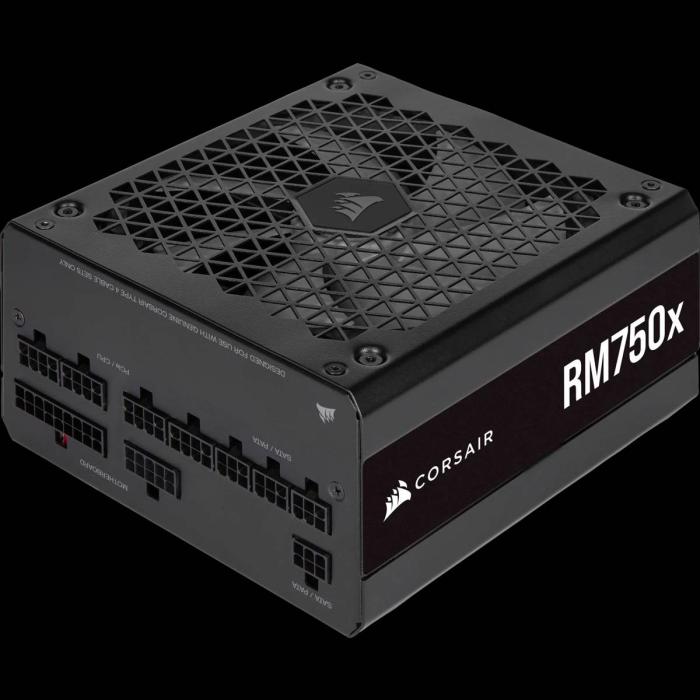

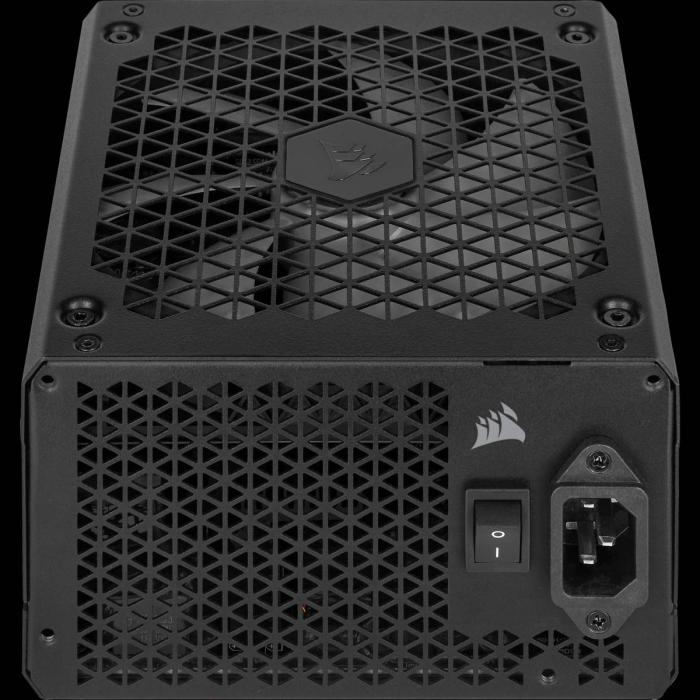

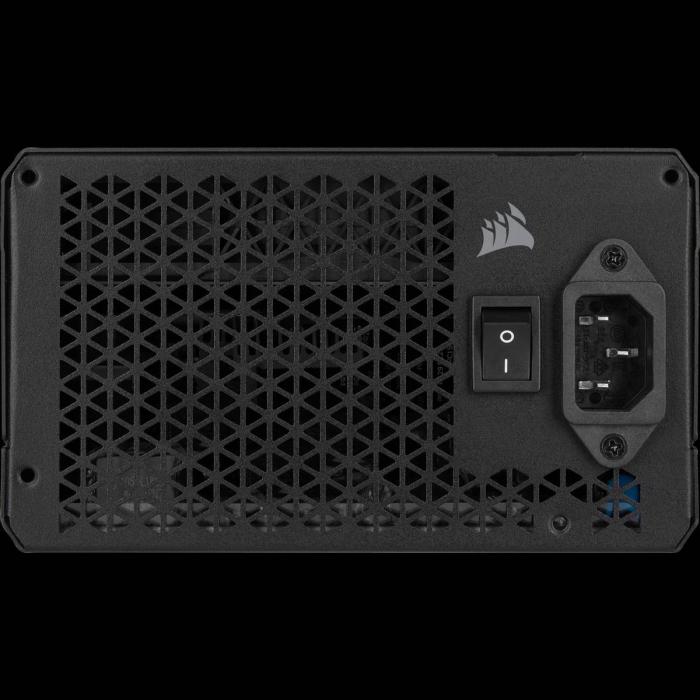

Corsair RM750x power supply unit 750 W 24-pin ATX ATX Black

Not avaliable

More info

Brand: CORSAIR
SKU: 88585 PRC: 327847 EAN: 840006603641 PN: cp-9020199-eu

Description

Specifications

Power

  • Total power: 750 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 47 - 63 Hz
  • Input current: 10 - 5 A
  • Combined power (+3.3V): 150 W
  • Combined power (+12V): 750 W
  • Combined power (+5V): 150 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 62.5 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

  • Motherboard power connector: 24-pin ATX
  • Motherboard power cable length: 61 cm
  • Number of SATA power connectors: 10
  • SATA power cable length: 750, 850 mm
  • Peripheral (Molex) power connectors (4-pin): 1
  • Peripheral (Molex) power cable length: 750 mm
  • EPS power connector (4+4 pin): Yes
  • PCI Express power connectors (6+2 pin): 4
  • PCI Express power cable length: 75 cm
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 65 cm
  • ATX Power connector (24-pin): Yes
  • Cabling type: Fully-Modular

Performance

  • 80 PLUS certification: 80 PLUS Gold
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.4
  • EPS version: 2.92
  • Silent mode: Yes
  • Bearing technology: MLB
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 13.5 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • On/off switch: Yes

Packaging content

  • Cables included: AC, CPU, DC, PCIe, Peripheral (Molex), SATA

Weight & dimensions

  • Width: 150 mm
  • Depth: 160 mm
  • Height: 86 mm
  • Weight: 1.7 kg

Packaging data

  • Package type: Box

Logistics data

  • Harmonized System (HS) code: 84733020
