Name: Corsair SF Series CP-9020284-EU power supply unit 750 W 24-pin ATX SFX Black
Brand: CORSAIR
Price: 169 EUR
Availability: InStock

Corsair SF Series CP-9020284-EU power supply unit 750 W 24-pin ATX SFX Black

169.00 €

139.67 € without VAT

Amount

Brand: CORSAIR

SKU: 113187 PRC: 538033 EAN: 840006676300 PN: cp-9020284-eu

Specifications

Power

Combined power (+5Vsb): 15 W
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 10-5 A
Combined power (+3.3V): 130 W
Combined power (+12V): 750 W
Combined power (+5V): 130 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (+5Vsb): 3 A

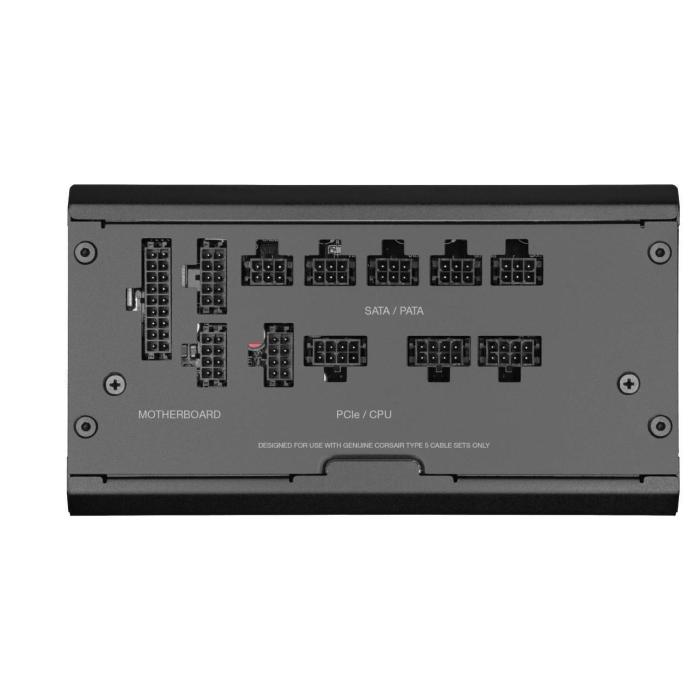

Ports & interfaces

EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 40 cm
Cabling type: Fully-Modular
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 30 cm
Number of SATA power connectors: 3
Number of PATA power connectors: 1
SATA power cable length: 445 mm

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 3.1
Silent mode: Yes
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Packaging content

Cables included: AC, CPU, PATA, PCIe, SATA

Weight & dimensions

Weight: 2.15 kg

Packaging data

Package type: Box
