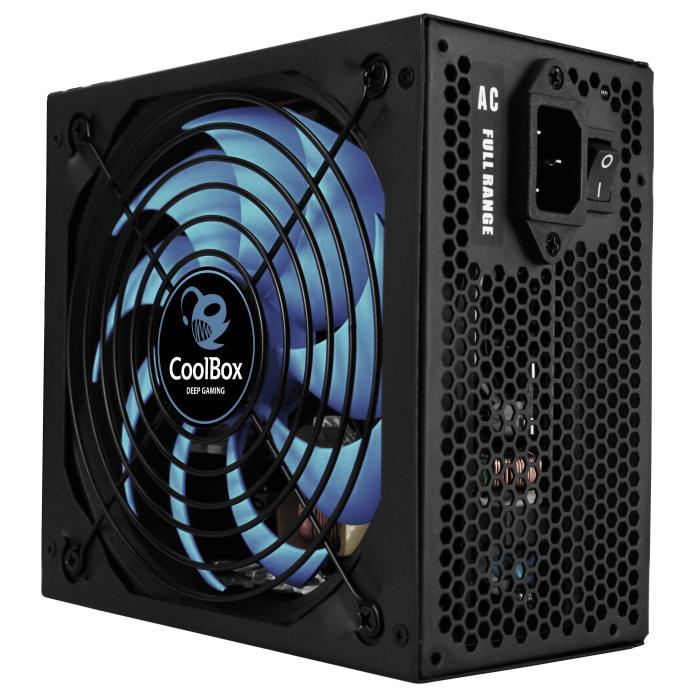

CoolBox DeepPower BR-650 650W ATX Black power supply unit

Product 1 image

CoolBox DeepPower BR-650 650W ATX Black power supply unit

54.00 €

44.63 € without VAT

CoolBox DeepPower BR-650, 650 W, 100 - 240, 50 - 60, 8 A, 4 A, Active. More info

Amount

Brand: COOLBOX

SKU: 80074 PRC: 197116 EAN: 8436556145339 PN: DG-PWS650-85B

Description

Specifications

Power

Total power: 650 W
AC input voltage: 100 - 240
AC input frequency: 50 - 60
Maximum input current (@110V): 8 A
Maximum input current (@220V): 4 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 115 W
Combined power (+12V): 528 W
Combined power (+5V): 115 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 18 A
Max output current (+12V1): 22 A
Max output current (+12V2): 22 A
Max output current (+5V): 18 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Power Good signal delay range: 100 - 500 ms
Hold time: 17 ms
Power protection features: Over power, Over voltage, Short circuit, Under voltage
Efficiency: 85%

Cooling

Fan diameter: 14 cm
Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 1
CPU power connector (4+4 pin): Yes
Floppy disk drive connector: Yes
Floppy drive power connector: 1
PCI Express connector: Yes

Performance

Purpose: PC/server
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
Noise level: 25 dB
On/off switch: Yes
Mean time between failures (MTBF): 100000 h

Design

Colour of product: Black

Technical details

Cables included: AC

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Weight: 2.1 kg

Certificates

80 PLUS certification: 80 PLUS Bronze
RoHS compliance: Yes
Certification: CE, WEEE

Packaging data

Package type: Box

Packaging content

Manual: Yes
