Description

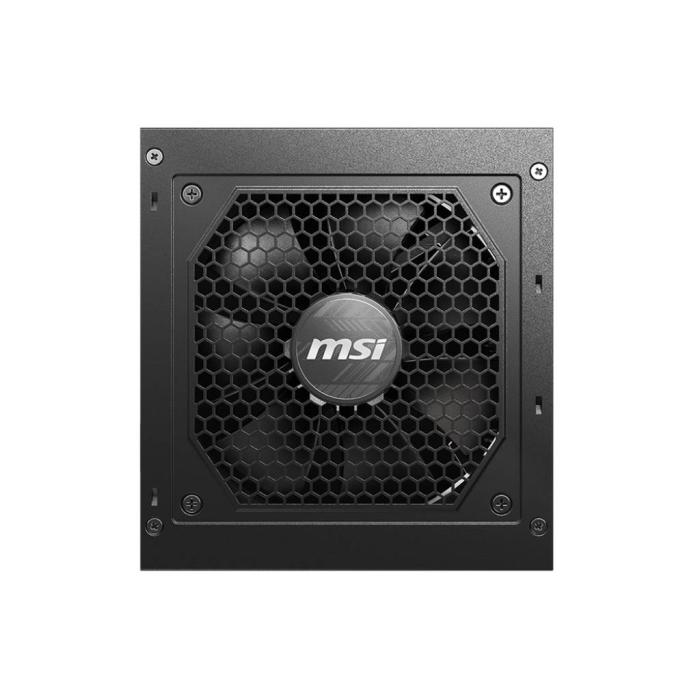

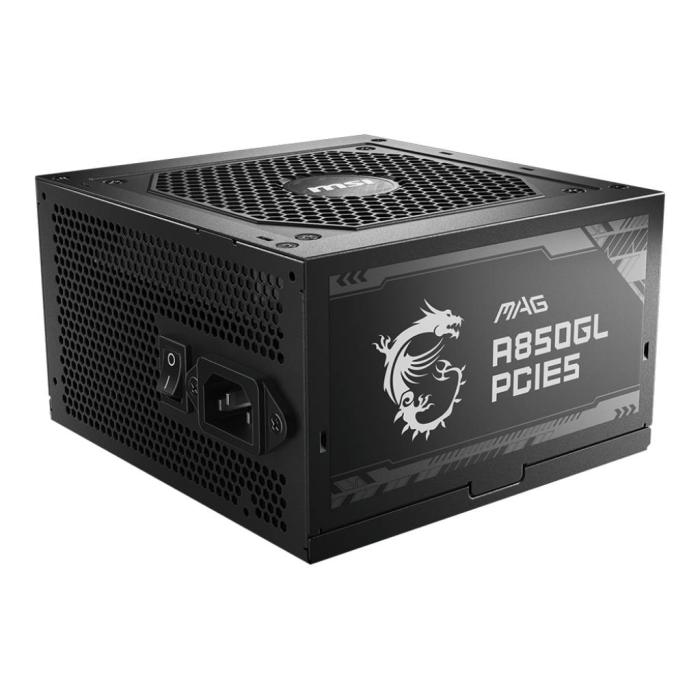

The MSI MAG A850GL PCIE5 is an 850 W power supply unit in black with an ATX form factor of 150 x 86 x 140 mm (width x height x depth), designed for builds requiring a stable supply. It supports an AC input voltage of 100 - 240 V with a frequency of 47 - 63 Hz, so it adapts to different electrical networks. It features active power factor correction, with an efficiency of 90%. It distributes its power with a maximum output current of 70.5 A on the +12V rail and a combined power of 846 W on that same rail. The +3.3V and +5V rails offer 20 A each, with 110 W combined power. The +5VSB rail delivers 2.5 A and 12.5 W, while the -12V rail is limited to 0.3 A and 3.6 W. It includes protection functions against overcurrent, overvoltage, overvoltage, overheating and short circuit.
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Maximum input current (@110V): 8 A
- Maximum input current (@220V): 4 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 110 W
- Combined power (+12V): 846 W
- Combined power (+5V): 110 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 70.5 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
- ATX power connector (20+4 pin): No

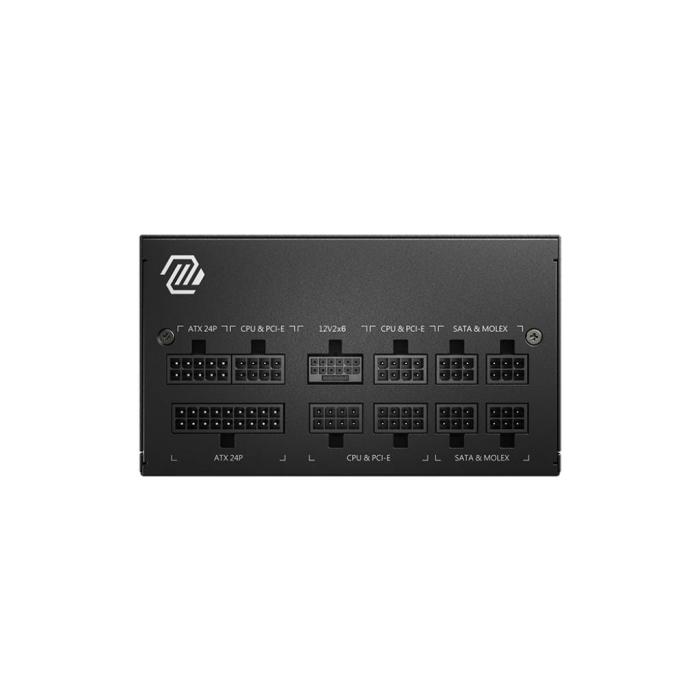

- Cabling type: Fully-Modular
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 4
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): No
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Illumination: No
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
