Description

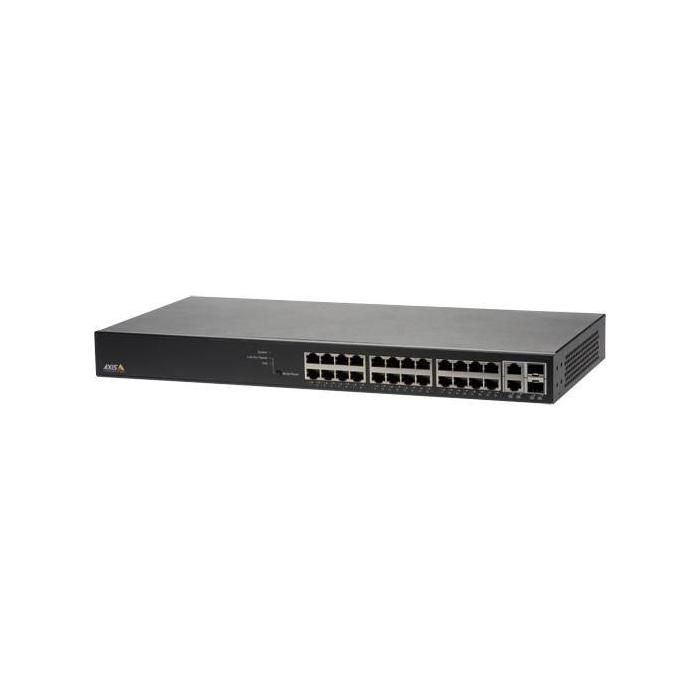

Axis 01192-003 managed switch, 1U format and black finish, designed to centralise connectivity in professional networks. It features 24 RJ-45 Gigabit Ethernet (10/100/1000) ports with PoE support, alongside 2 combo SFP ports for additional fibre links. Its MAC address table reaches 8,000 entries, with a switching capacity of 52 Gbit/s and a throughput of 38.7 Mpps, including jumbo frames of up to 9,216 bytes. It offers advanced management via VLAN (including Private VLAN), IEEE 802.1x and RADIUS authentication, access control lists (ACL) and compatibility with standards such as IEEE 802.1Q, 802.3at and 802.3z.
Specifications
Management features
- Switch type: Managed
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Virtual LAN features: Private VLAN
Data transmission
- Switching capacity: 52 Gbit/s
- Throughput: 38.7 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- DHCP features: DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- Security algorithms: 802.1x RADIUS, HTTPS, SSH
- Authentication: Port-based authentication
- Password protection: Yes
- Authentication type: IEEE 802.1x, RADIUS
Protocols
- Management protocols: SNMP v1/v2c/v3
- Supported network protocols: IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LL
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 24
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 442 mm
- Depth: 211 mm
- Height: 44 mm
- Weight: 3.2 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Rack mount kit: Yes
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE
- Certification: EN 55032 A EN 55024 FCC part 15 B / A VCCI A RCM AS/NZS CISPR 32 A ICES-003 A IEC/EN/UL 60950-1 EN 62368-1 EAC ITE, JATE, BSMI
Logistics data
- Harmonized System (HS) code: 85176990
