Trendnet TPE-5028WS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Name: Trendnet TPE-5028WS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brand: TRENDNET
SKU: 196571
Price: 425.32 EUR
Availability: InStock

More info

Brand: TRENDNET

425.32 €

351.50 € without VAT

Stock available: 1 ud.

Get it on the September 1 / September 2

SKU: 80032 PRC: 196571 EAN: 710931161182 PN: TPE-5028WS

Description

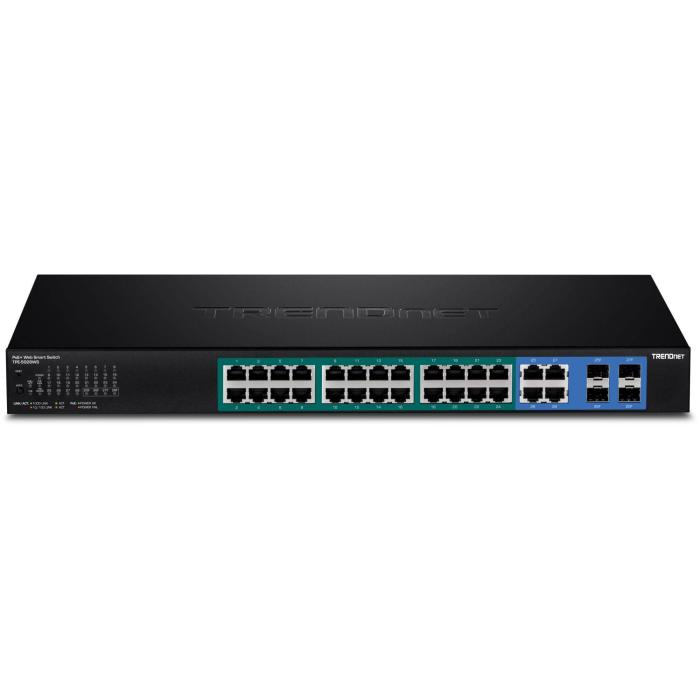

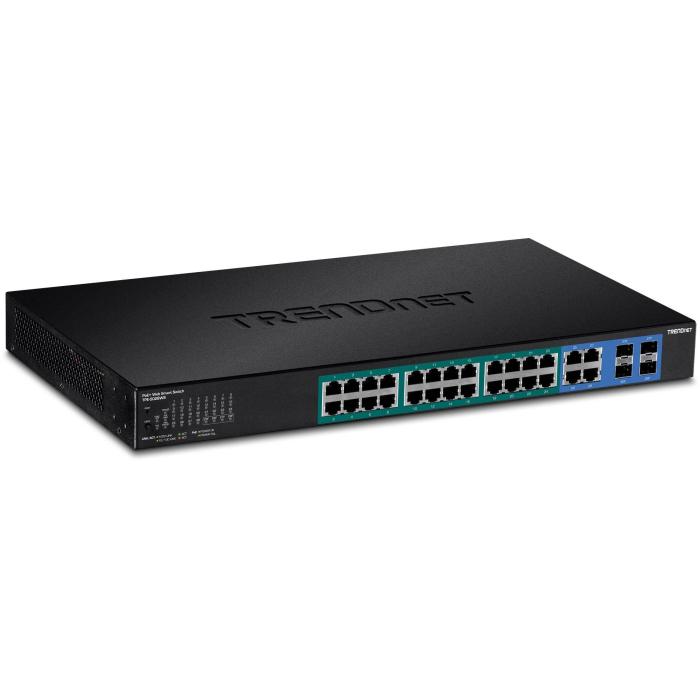

Managed TPE-5028WS switch from TRENDNET with 24 Gigabit Ethernet RJ-45 ports and 4 combo SFP ports, all in a 1U black rack format. This unit includes PoE support on its ports, although the spec sheet does not specify the total power budget available. Its web-based management allows configuring QoS, VLANs (private, tagged, voice) and port mirroring, as well as features such as full duplex, HOL blocking and spanning tree protocol. With a switching capacity of 56 Gbit/s and a forwarding rate of 41.7 Mpps, it handles jumbo frames up to 10000 bytes and its packet buffer reaches 4.1 MB. Link aggregation and VLAN compatibility facilitate network segmentation in corporate environments.

Specifications

Management features

Switch type: Managed
Quality of Service (QoS) support: Yes
Web-based management: Yes
MIB support: IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 8

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
Port mirroring: Yes
Full duplex: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 41.7 Mpps
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 4.1 MB

Security

Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: HTTPS, SNMP, SSL/TLS
MAC address filtering: Yes

Multicast features

Multicast support: Yes
Multicast MAC address table: 256 entries

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
Housing material: Linear low-density polyethylene (LLDPE)
LED indicators: Yes
Number of fans: 2 fan(s)

Performance

Compatible operating systems: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Noise level: 52 dB
Mean time between failures (MTBF): 277.604 h
