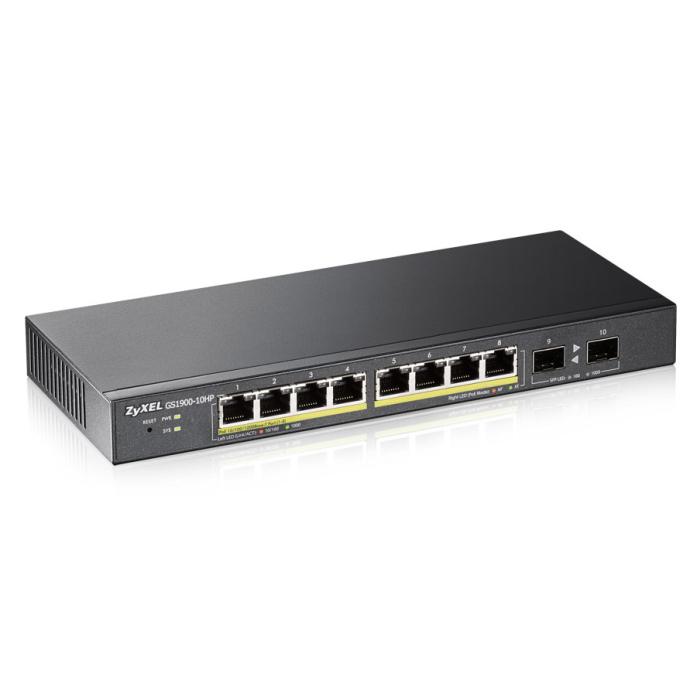

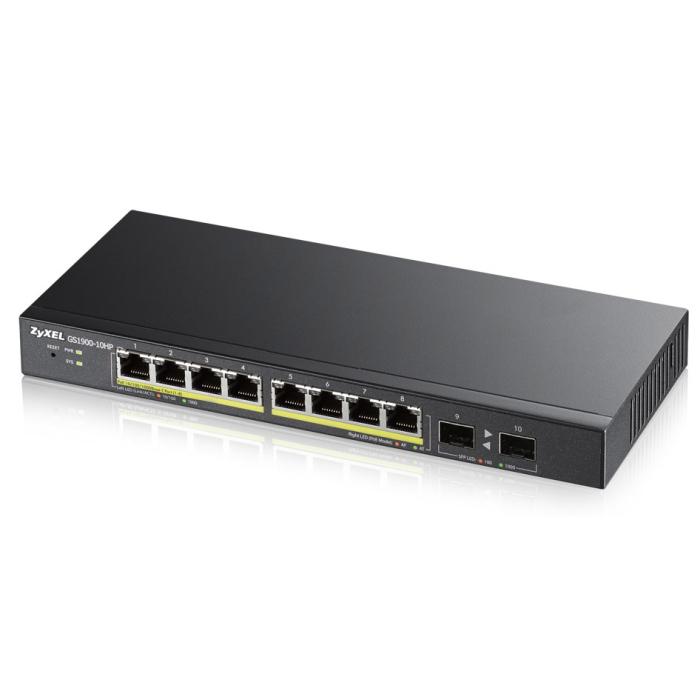

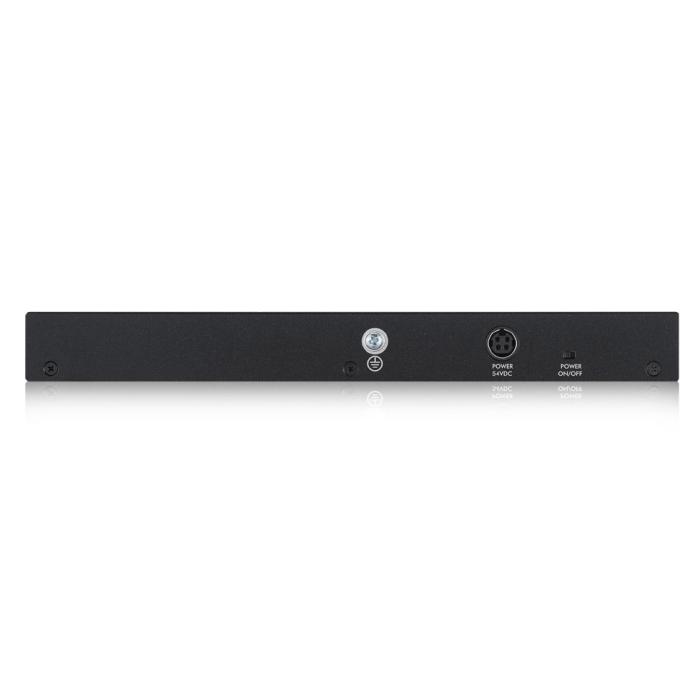

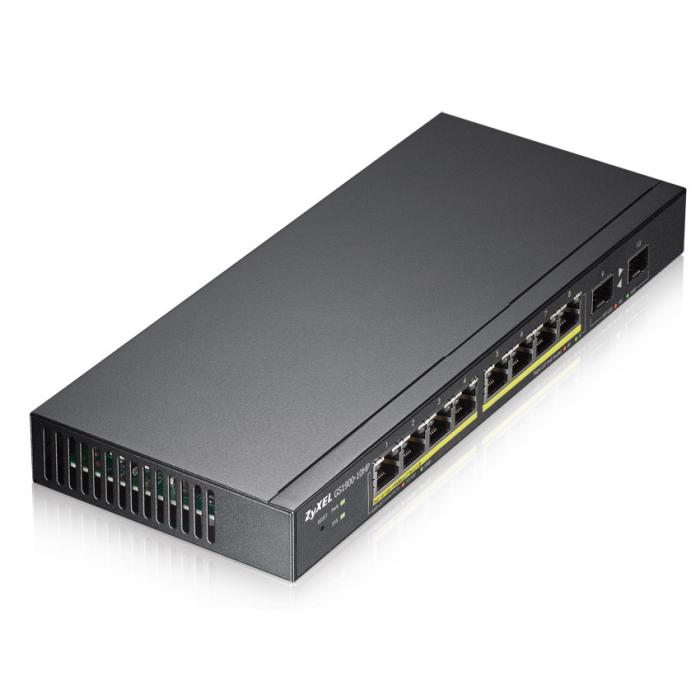

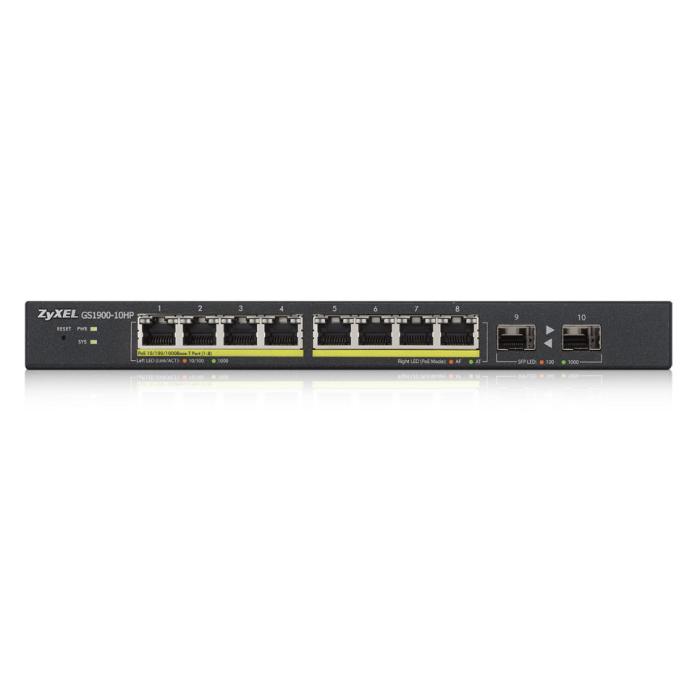

Name: Zyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brand: ZYXEL
Availability: OutOfStock

Zyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Not avaliable

Zyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black. More info

Amount

Brand: ZYXEL

SKU: 114263 PRC: 97635 EAN: 4718937587810 PN: GS1900-10HP-EU0101F

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
MIB support: RFC 1213, RFC 2819, RFC 1215, RFC 1493

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Console port: RJ-45

Network

Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T

Data transmission

Switching capacity: 20 Gbit/s
Throughput: 14.88 Mpps
MAC address table: 8000 entries
Jumbo frames: 9000

Security

IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SSL/TLS

Protocols

Management protocols: SNMP, RMON, ICMP, Syslog

Design

Rack mounting: No
Form factor: 1U
Product colour: Black
LED indicators: Yes
Wall mountable: Yes
Safety: LVD EN60950-1, BSMI CNS14336-1, CB IEC60950-1

Performance

Buffer size: 525 KB
Mean time between failures (MTBF): 801.113 h

Power

Input current: 1.7 A
Input voltage: 54 V
Power consumption (typical): 96.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Total Power over Ethernet (PoE) budget: 77 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Heat dissipation: 65.472 BTU/h

Weight & dimensions

Width: 250 mm
Depth: 104 mm
Height: 27 mm
Weight: 720 g

Packaging data

Package width: 302 mm
Package depth: 227 mm
Package height: 64 mm
Package weight: 1.53 kg

Certificates

Certification: CE, FCC, C-Tick, BSMI CNS13438

Logistics data

Harmonized System (HS) code: 85176990

Zyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Description

Specifications

Management features

Ports & interfaces

Network

Data transmission

Security

Protocols

Design

Performance

Power

Power over Ethernet (PoE)

Operational conditions

Weight & dimensions

Packaging data

Certificates

Logistics data
