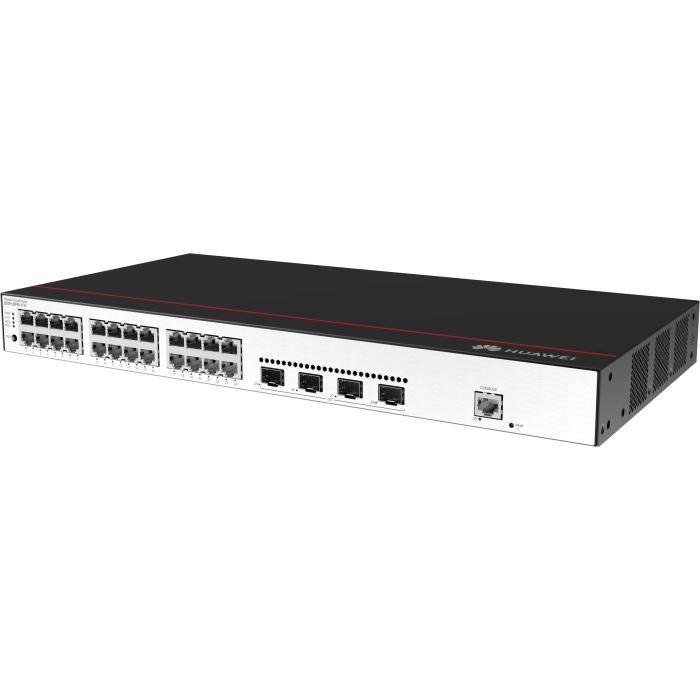

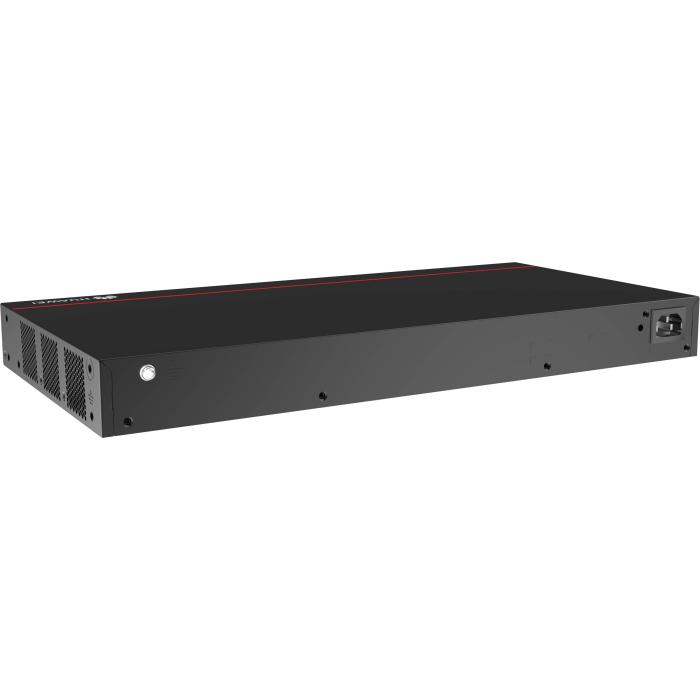

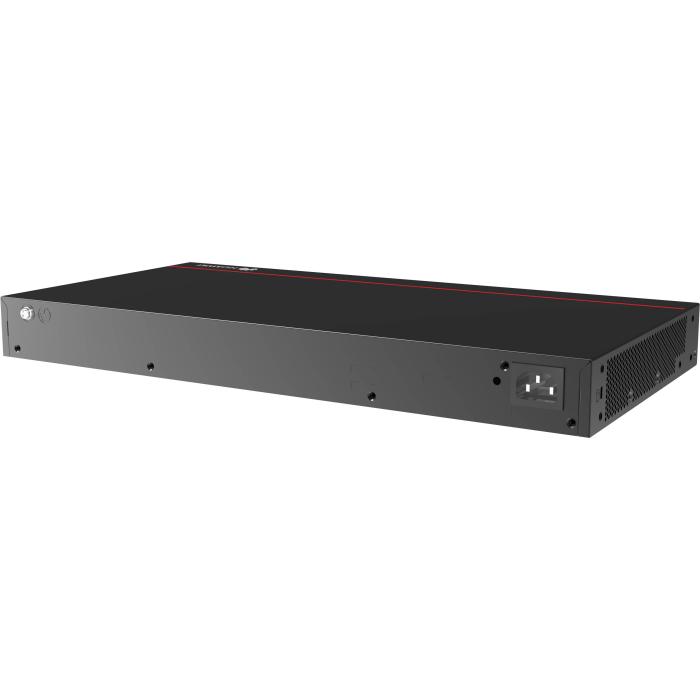

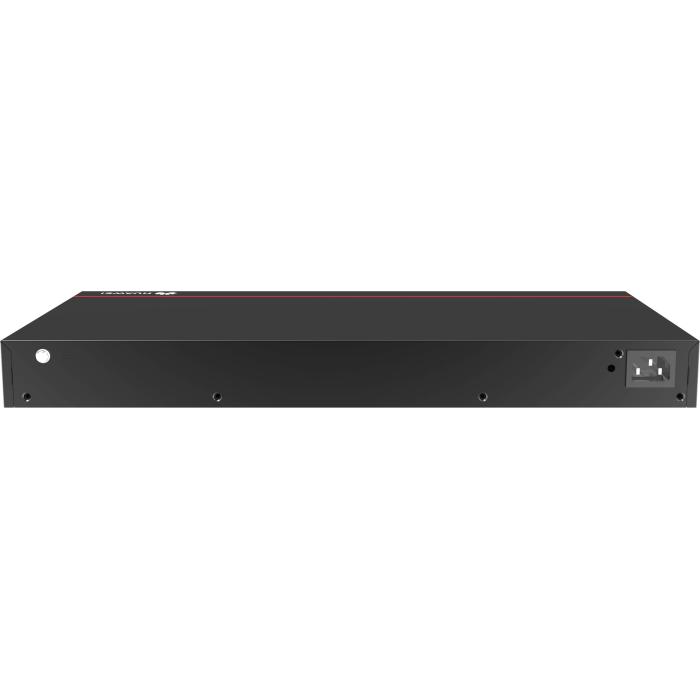

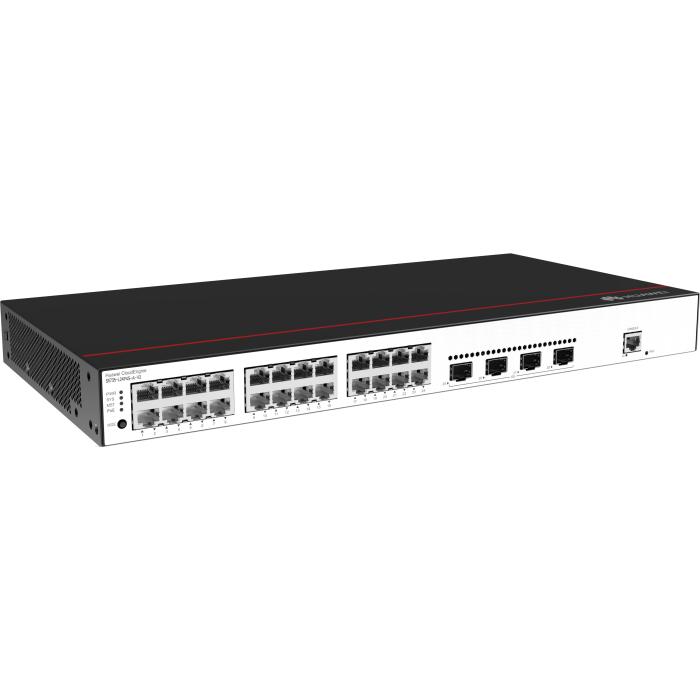

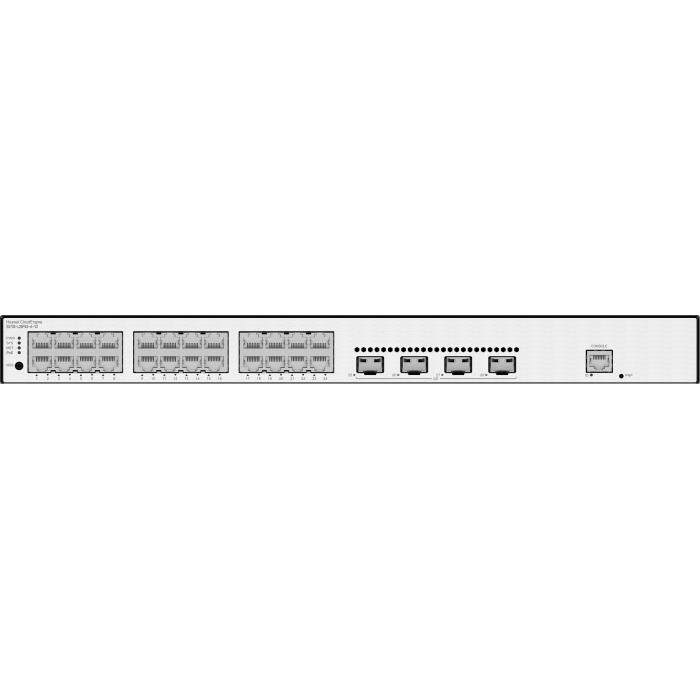

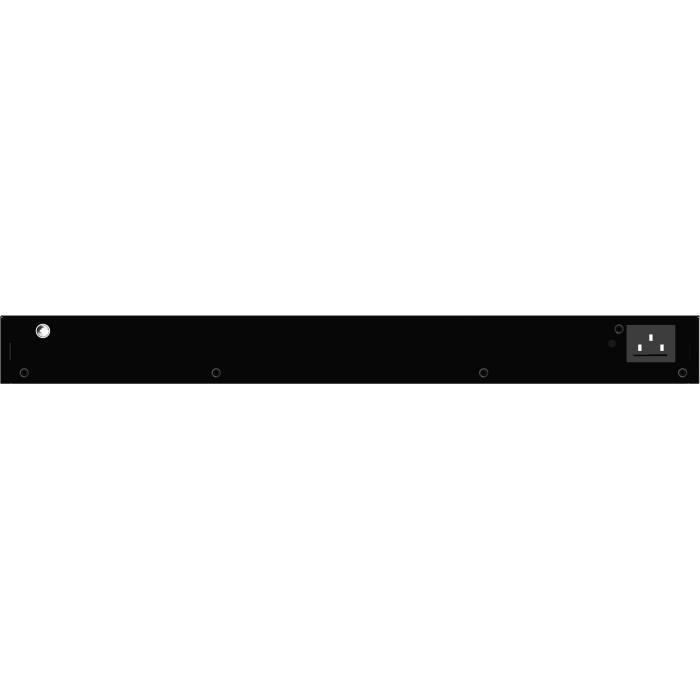

Huawei CloudEngine S5735-L24P4S-A-V2 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Silver

$629.39
$629.39 without VAT

Huawei CloudEngine S5735-L24P4S-A-V2 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Silver.   More info

Brand: HUAWEI
SKU: 101753 PRC: 452317 EAN: 6901443422081 PN: 98012021

Description

24x RJ-45, 4x SFP, 56 Gbps switching capacity, 1U, VLAN, Static route, PoE

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 4
  • Console port: RJ-45

Network

  • Networking standards: IEEE 802.1x
  • 10G support: No
  • IP routing: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes
  • VLAN support: Yes
  • Virtual LAN features: IP subnet–based VLAN, MAC address-based VLAN, Multiple VXLAN (MUX VLAN), Policy-based VLAN, Port-based VLAN, Protocol-based VL
  • Number of VLANs: 4094

Data transmission

  • Switching capacity: 56 Gbit/s
  • Forwarding rate: 51 Mpps
  • Static route: Yes

Security

  • Access Control List (ACL): Yes
  • MAC address entries: Blackhole MAC address entries, Dynamic MAC address entries, Static MAC address entries

Protocols

  • Routing protocols: OSPF, OSPFv3, RIP-1, RIP-2, RIPng

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black, Silver
  • LED indicators: Yes
  • Airflow direction: Side-to-side airflow

Performance

  • Internal memory: 2048 MB
  • Flash memory: 1000 MB
  • Noise level: 37.3 dB
  • Mean time between failures (MTBF): 527176.8 h

Power

  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 40.07 W
  • Power consumption (max): 47.1 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Total Power over Ethernet (PoE) budget: 400 W

Operational conditions

  • Operating temperature (T-T): -5 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 5000 m
  • Non-operating altitude: 0 - 5000 m
  • Heat dissipation: 136.72 BTU/h

Weight & dimensions

  • Width: 442 mm
  • Depth: 220 mm
  • Height: 43.6 mm
  • Weight: 2.92 kg

Packaging data

  • Package width: 550 mm
  • Package depth: 360 mm
  • Package height: 90 mm
  • Package weight: 3.79 kg
