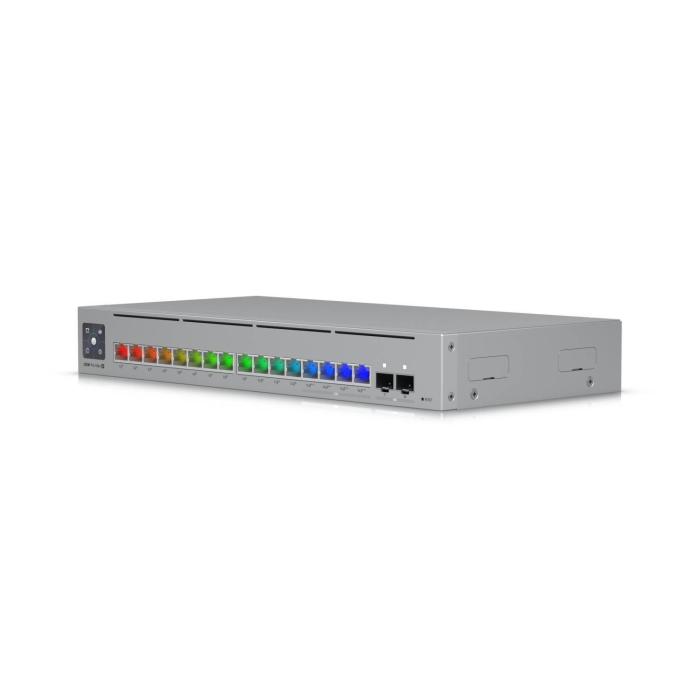

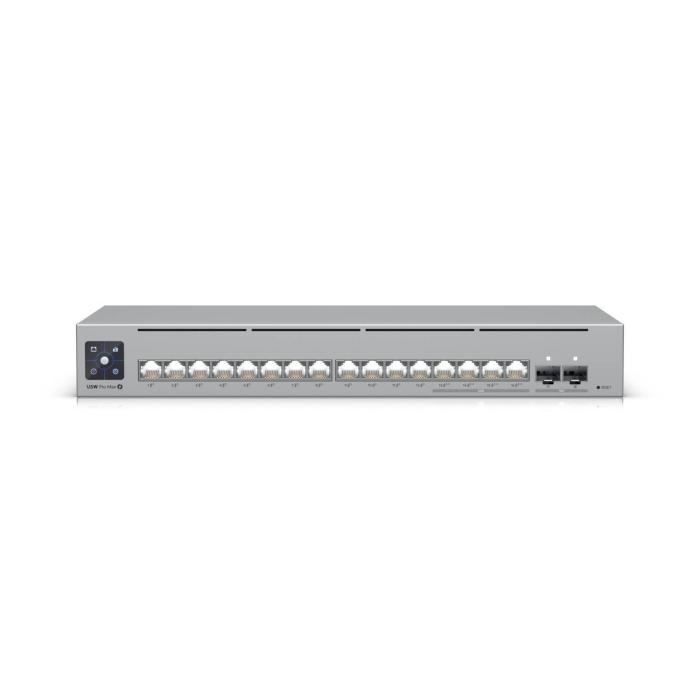

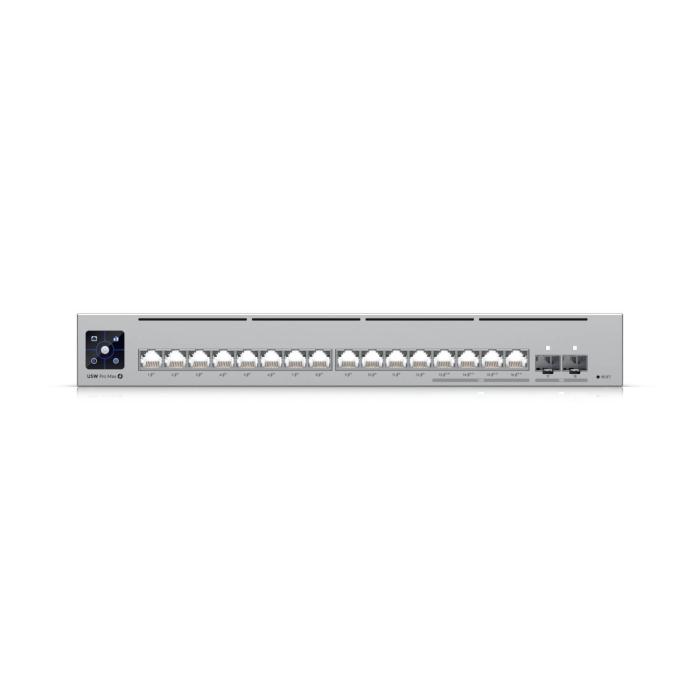

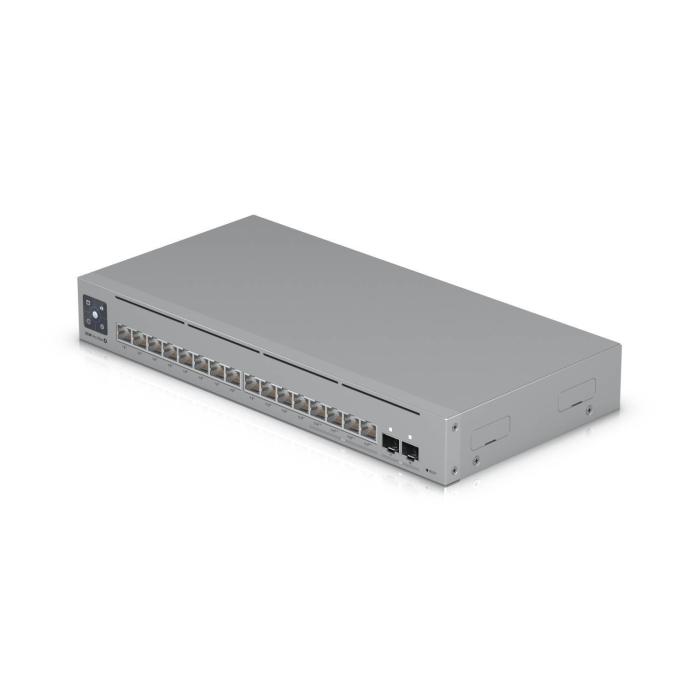

Ubiquiti Pro Max 16 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
More info
Brand: UBIQUITI NETWORKS
460.60 €
380.66 €
without VAT
Stock available: 14 units.
Get it
on the
September 1
/
September 2
SKU:
112622
PRC:
578533
EAN:
810084694572
PN:
usw-pro-max-16-poe
Description
The Ubiquiti Pro Max 16 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey switch integrates 16 RJ-45 Gigabit Ethernet ports (10/100/1000), of which 12 are basic copper and 4 additional at 2.5G, along with 2 SFP+ slots for 10G links. With a switching capacity of 84 Gbit/s and a throughput of 42 Gbit/s, this hub offers advanced features such as VLAN support, Voice VLAN, flow control, rate limiting, port mirroring and network storm mitigation. Its L3 management allows finer traffic control in corporate environments, complying with the IEEE 802.1x standard for access authentication. Power is supplied via a DC input socket, maintaining a professional profile oriented towards installations that require data segmentation and prioritisation without complications.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 12
- 2.5G Ethernet (copper) ports quantity: 4
- SFP+ module slots quantity: 2
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1x
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- VLAN support: Yes
- Virtual LAN features: Voice VLAN
Data transmission
- Switching capacity: 84 Gbit/s
- Throughput: 42 Gbit/s
- Forwarding rate: 62.496 Mpps
- Jumbo frames support: Yes
Security
- DHCP features: DHCP snooping, DHCPv6 relay
- IGMP snooping: Yes
- Loop protection: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Grey
- Housing material: Steel
- Reset button: Yes
- LED indicators: System
- Display type: LCM
Power
- Power source: AC/DC
- Power supply included: Yes
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- DC input voltage: 44 - 57 V
- Power consumption (max): 30 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 12
- Power over Ethernet 4PPoE (PoE++) ports quantity: 4
- Power over Ethernet (PoE) power per port: 15 W
- Total Power over Ethernet (PoE) budget: 180 W
Operational conditions
- Operating temperature (T-T): -5 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 325.1 mm
- Depth: 160 mm
- Height: 43.7 mm
- Weight: 2.1 kg

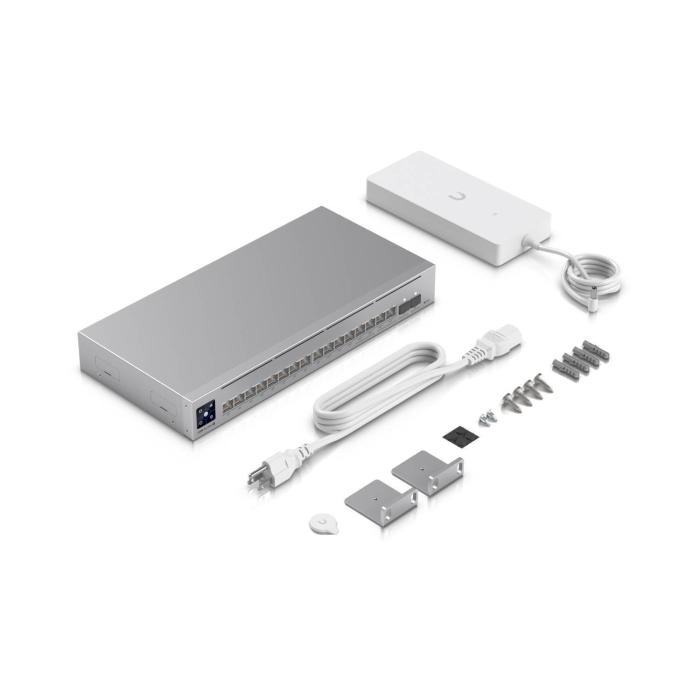

Packaging content
- Cables included: Power
- Manual: Yes
Packaging data
- Mounting brackets included: Yes
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
