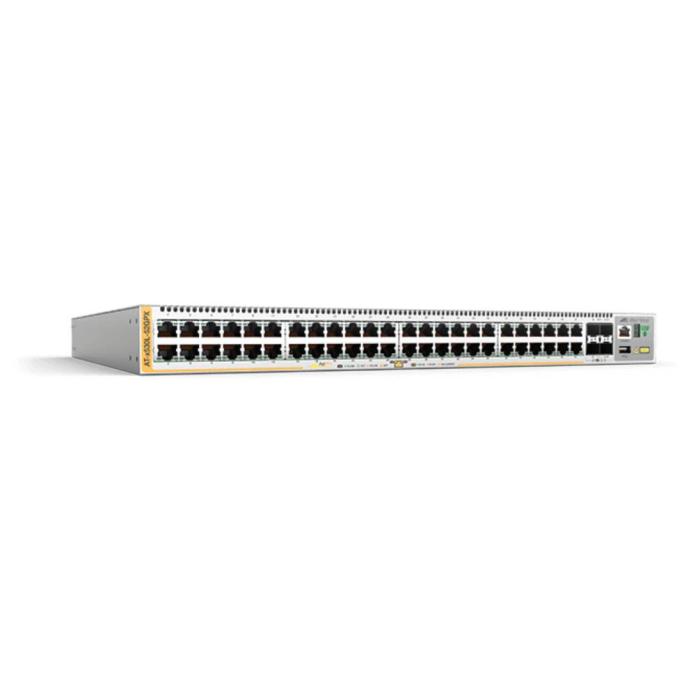

Allied Telesis AT-x530L-52GPX-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
More info
Brand: ALLIED TELESIS
3,960,00 €
SKU:
84168
PRC:
281987
EAN:
767035217154
PN:
AT-X530L-52GPX-50
Description
Allied Telesis AT-x530L-52GPX-50, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Tagged VLAN
- Number of VLANs: 4094
Optical fiber
- Fiber ethernet cabling technology: 100BASE-X, 1000BASE-X
Data transmission
- Switching capacity: 176 Gbit/s
- Forwarding rate: 130.9 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 3 MB
Security
- DHCP features: DHCPv6 client, DHCPv6 relay, DHCPv6 server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: HTTPS, PEAP, SHA-2, SNMP, SSH-2, SSL/TLS, TTLS
- MAC address filtering: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- Authentication: Guest VLAN, MAC-based authentication, Web-based authentication
- Password protection: Yes
- Authentication type: IEEE 802.1x
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Grey
- Electromagnetic compatibility: EN55032 A, FCC A, VCCI A, ICES-003 A
Performance
- Physical stacking (units): 4
- Memory type: DDR3-SDRAM
- Internal memory: 1024 MB
- Flash memory: 256 MB
- Noise level: 42 dB
- Export Control Classification Number (ECCN): 5A992C
Power
- Power consumption (max): 950 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 48
- Total Power over Ethernet (PoE) budget: 740 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
- Heat dissipation: 3242 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 421 mm
- Height: 44 mm
- Weight: 6.7 kg
Packaging content
- Manual: Yes
Packaging data
- Package width: 563 mm
- Package depth: 534 mm
- Package height: 128 mm
- Package weight: 8.9 kg
Certificates
- Certification: UL, cUL, RoHS UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Logistics data
- Harmonized System (HS) code: 85176990
