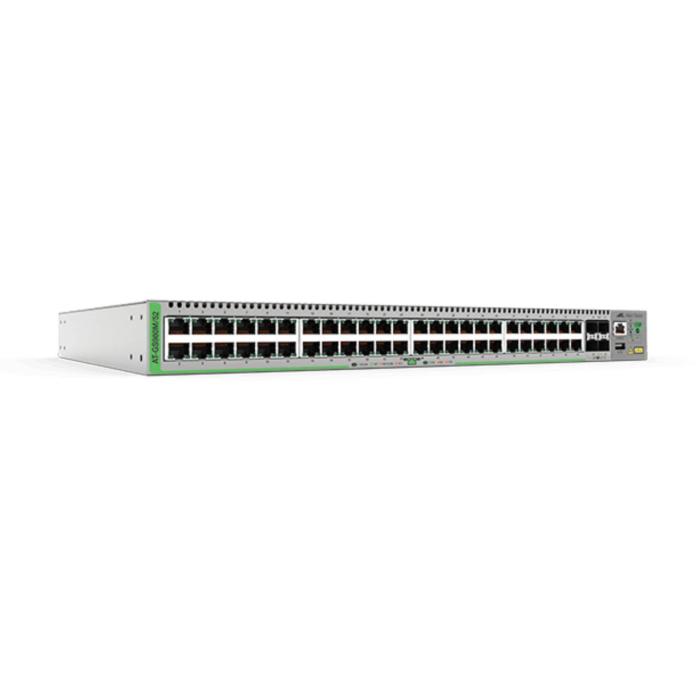

Name: Allied Telesis AT-GS980M/52-50 Managed Gigabit Ethernet (10/100/1000) Grey
Brand: ALLIED TELESIS
Price: 1417.79 USD
Availability: InStock

Allied Telesis AT-GS980M/52-50 Managed Gigabit Ethernet (10/100/1000) Grey

$1,417.79

$1,417.79 without VAT

Allied Telesis AT-GS980M/52-50 Managed Gigabit Ethernet (10/100/1000) Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 83260 PRC: 268174 EAN: 767035212388 PN: 990-005904-50

Description

Specifications

Management features

Switch type: Managed
Quality of Service (QoS) support: Yes
Web-based management: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: SNMP MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 4
Fiber optic connector: SFP

Network

Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
IP routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4094

Optical fiber

Fiber ethernet cabling technology: 100BASE-X, 1000BASE-X
Switching optical modules type: 100 Gigabit Ethernet

Data transmission

Switching capacity: 104 Gbit/s
Forwarding rate: 77.4 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 5.5 µs
Latency (1 Gbps): 2.6 µs
Static route: Yes
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client, DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS
MAC address filtering: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: MAC-based authentication, Port-based authentication, Web-based authentication
Password protection: Yes
Authentication type: AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMP
Routing protocols: RIP, RIP-2

Design

Rack mounting: Yes
Product colour: Grey
LED indicators: Yes
Wall mountable: Yes
Electromagnetic compatibility: EN55024

Performance

Memory type: DDR-SDRAM
Internal memory: 256 MB
Flash memory: 64 MB
Noise level: 39 dB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1.0 A
Power consumption (typical): 47 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4000 m
Heat dissipation: 160 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 323 mm
Height: 44 mm
Weight: 4.5 kg

Packaging data

Package width: 575 mm
Package depth: 445 mm
Package height: 150 mm
Package weight: 6.4 kg

Certificates

Certification: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, UL-EU RoHS

Logistics data

Harmonized System (HS) code: 8517.62.0050
