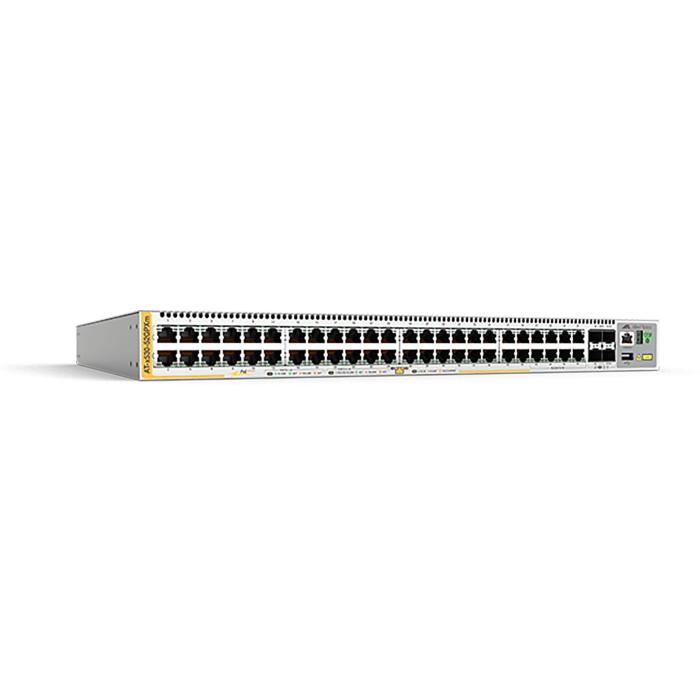

Name: Allied Telesis x530-52GPXm Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Brand: ALLIED TELESIS
Price: 4754.22 USD
Availability: InStock

Allied Telesis x530-52GPXm Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

$4,754.22

$4,754.22 without VAT

Amount

Brand: ALLIED TELESIS

SKU: 114308 PRC: 283237 EAN: 767035217321 PN: AT-X530-52GPXM-50

Description

Allied Telesis x530-52GPXm, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Configuring Location Settings (CLI): Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 40
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4

Network

Networking standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 80
10G support: Yes
Port mirroring: Yes
Link aggregation: Yes
VLAN support: Yes
Number of VLANs: 4094

Optical fiber

Fiber ethernet cabling technology: 100BASE-X, 1000BASE-X

Data transmission

Switching capacity: 240 Gbit/s
Forwarding rate: 179 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 7.42 µs
Latency (1 Gbps): 4.1 µs
Latency (10 Gbps): 1.68 µs
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 1.5 MB

Security

Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: MAC-based authentication, Web-based authentication
Password protection: Yes
DHCP features: DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL): Yes
Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256
MAC address filtering: Yes
SSH/SSL support: Yes

Multicast features

Multicast support: Yes

Protocols

Routing protocols: BGP, OSPF, RIP

Design

Rack mounting: Yes
Stackable: Yes
Product colour: Grey
Electromagnetic compatibility: EN55032 A, FCC A, VCCI A, ICES-003 A

Performance

Memory type: DDR3-SDRAM
Internal memory: 1024 MB
Flash memory: 256 MB

Power

Power supply included: Yes
Power consumption (max): 88 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 48

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m
Heat dissipation: 300 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 421 mm
Height: 44 mm
Weight: 6.9 kg

Packaging data

Package width: 563 mm
Package depth: 632 mm
Package height: 128 mm
Package weight: 8.9 kg

Certificates

Certification: EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS
