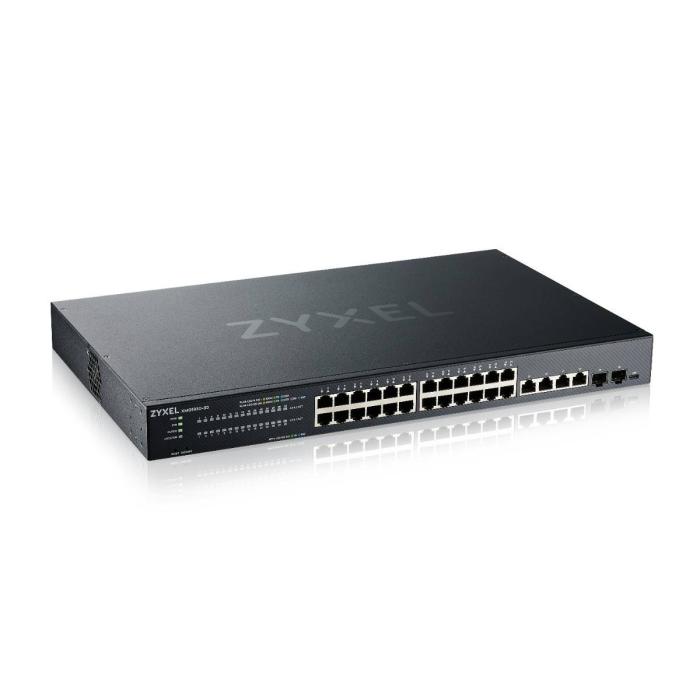

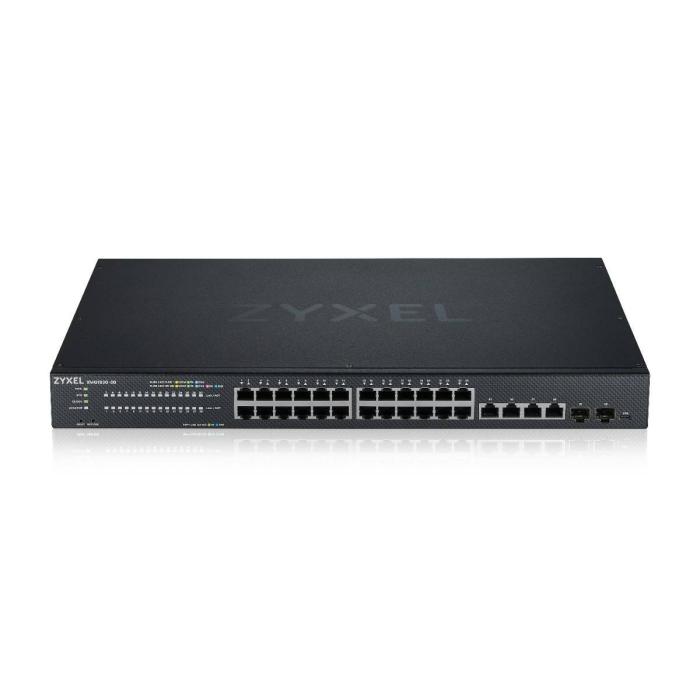

Name: Zyxel XMG1930-30 Managed L3 2.5G Ethernet (100/1000/2500) Black
Brand: ZYXEL
Price: 840.77 USD
Availability: InStock

Zyxel XMG1930-30 Managed L3 2.5G Ethernet (100/1000/2500) Black

$840.77

$840.77 without VAT

Zyxel XMG1930-30 Managed L3 2.5G Ethernet (100/1000/2500) Black. More info

Amount

Brand: ZYXEL

SKU: 99925 PRC: 435942 EAN: 4718937622054 PN: XMG1930-30-ZZ0101F

Description

24-Port 2.5G Multi-Gig Lite-L3 Smart Managed Switch with 6-port 10G Uplink (4 Copper/2 SFP+)

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
System event log: Yes
MIB support: RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
10G Ethernet (copper) ports quantity: 4
Fiber ports quantity: 2
Fiber optic connector: SFP+

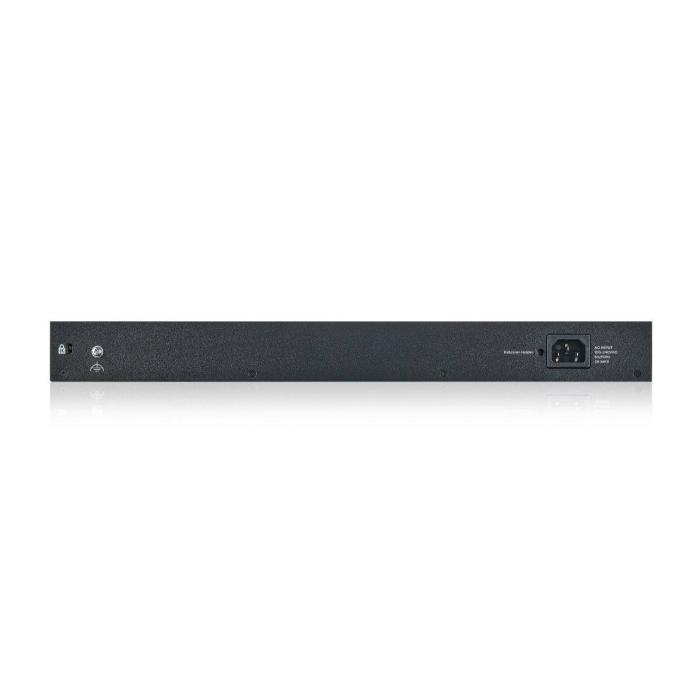

Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 80
10G support: Yes
Copper ethernet cabling technology: 10GBASE-T, 1000BASE-T, 2500BASE-T
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Ethernet LAN data rates: 100,1000,2500,10000 Mbit/s
VLAN support: Yes
Virtual LAN features: Port-based VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 240 Gbit/s
Forwarding rate: 178.5 Mpps
MAC address table: 16000 entries
Static route: Yes
Jumbo frames support: Yes
Jumbo frames: 12000
Packet buffer memory: 2 MB

Security

DHCP features: DHCP Option 82, DHCP relay, DHCPv6 client, DHCPv6 relay
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, HTTPS, SHA-2, SNMP, SNMPv2, SNMPv3, SSL/TLS
SSH/SSL support: Yes
Authentication: Guest VLAN, MAC-based authentication
Queue scheduling algorithms: Strict Priority Queue (SPQ), WFQ, Weighted Round Robin (WRR)

Protocols

GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: Dual stack IPv4/IPv6

Design

Rack mounting: Yes
Product colour: Black
LED indicators: Yes

Performance

Internal memory: 256 MB
Flash memory: 32 MB
Noise level: 47.6 dB
Mean time between failures (MTBF): 532217 h

Power

Power source: AC
Power supply included: Yes
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 67.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 67.1 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 270 mm
Height: 44 mm
Weight: 3.81 kg

Packaging content

Cables included: AC

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS
Certification: BSMI, EMC
