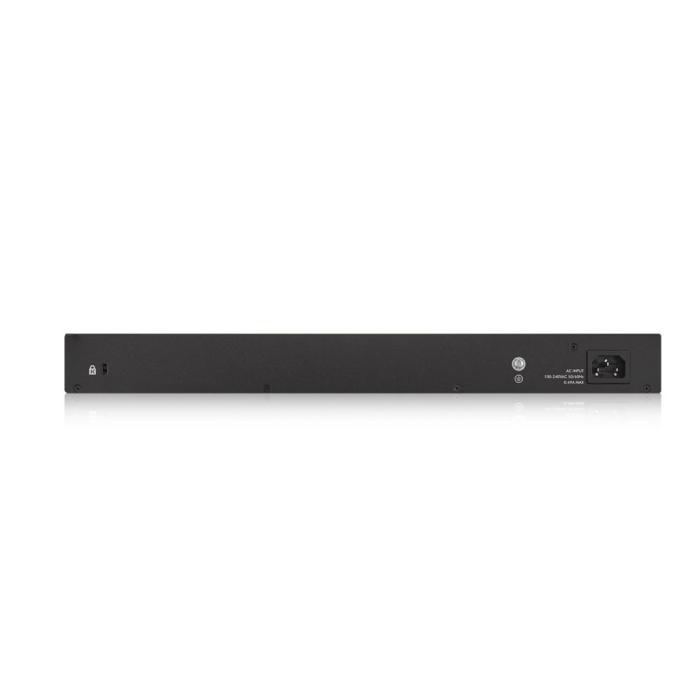

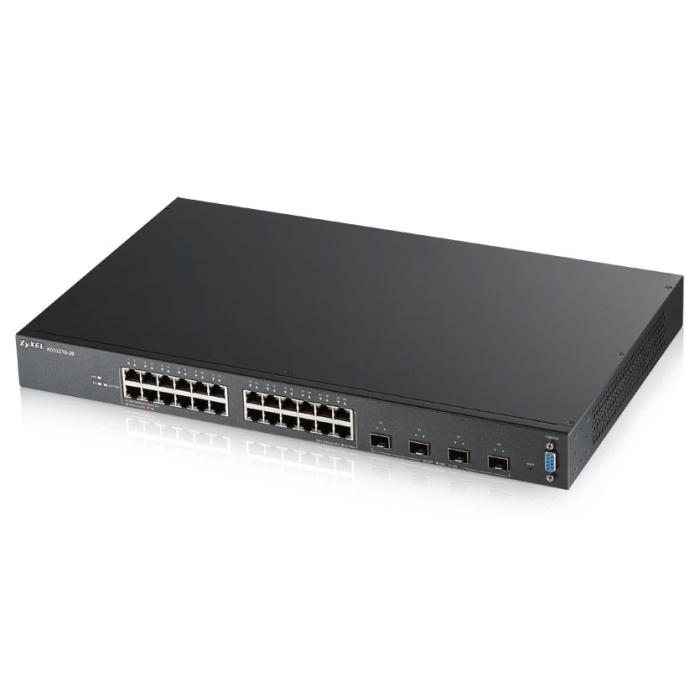

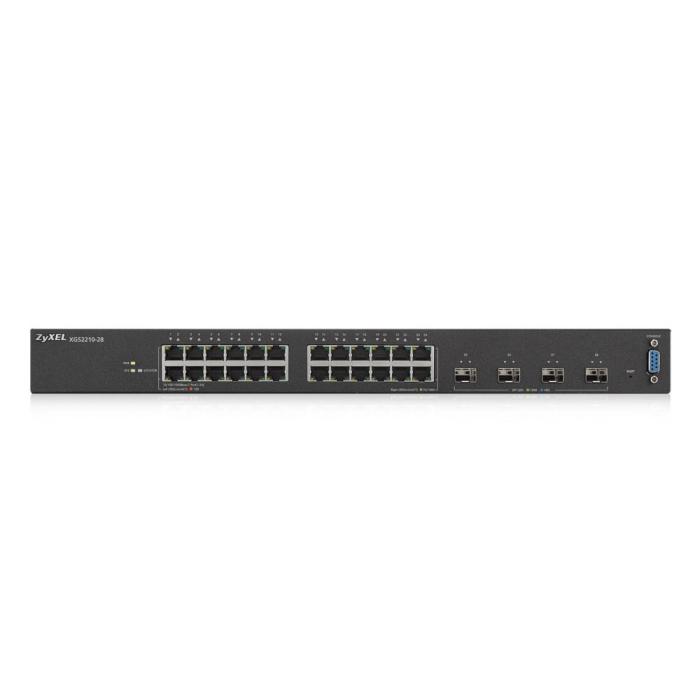

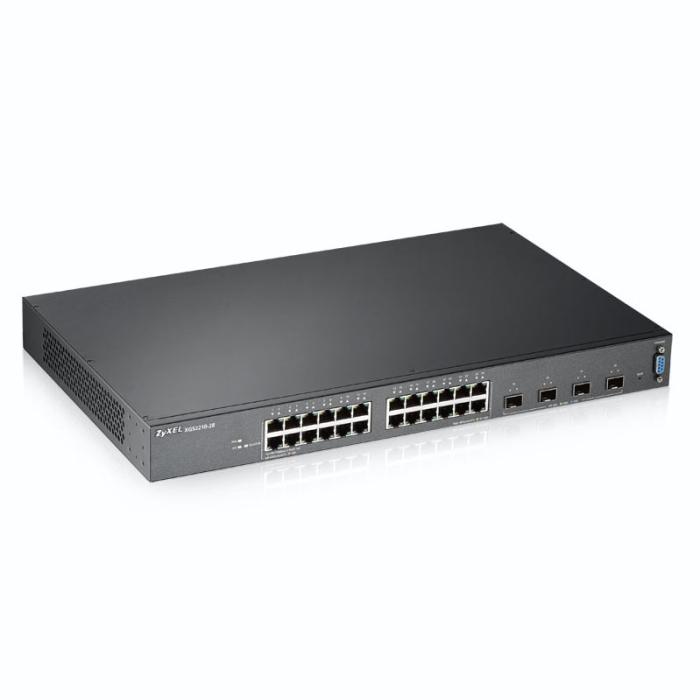

Name: Zyxel XGS2210-28 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Brand: ZYXEL
Price: 887.43 USD
Availability: InStock

Zyxel XGS2210-28 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

$887.43

$887.43 without VAT

Amount

Brand: ZYXEL

SKU: 78580 PRC: 151704 EAN: 4718937521241 PN: XGS2210-28-EU0101F

Description

Zyxel XGS2210-28, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic shaping: Yes
ARP inspection: Yes
System event log: Yes
MIB support: RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
10G support: Yes
Port mirroring: Yes
IP routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
MAC address auto-learning supported: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Protocol-based VLAN, Port-based VLAN

Data transmission

Switching capacity: 128 Gbit/s
Throughput: 95.2 Mpps
MAC address table: 16000 entries
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SNMP, SSH, SSH-2
MAC address filtering: Yes
SSH/SSL support: Yes
BPDU filtering/protection: Yes
Authentication: MAC-based authentication

Multicast features

Multicast support: Yes

Design

Electromagnetic compatibility: FCC 15 (A), CE (A), BSMI
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black
LED indicators: Power, Status
Safety: LVD, BSMI

Performance

Noise level: 0 dB
Plug and Play: Yes
Mean time between failures (MTBF): 831699 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 20 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 68.2 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 270 mm
Height: 45 mm
Weight: 3.7 kg

Packaging content

Cables included: AC
Rack mount kit: Yes

Packaging data

Package width: 622 mm
Package depth: 358 mm
Package height: 108 mm
Package weight: 4.8 kg

Certificates

Certification: RoHS

Logistics data

Harmonized System (HS) code: 85176990
