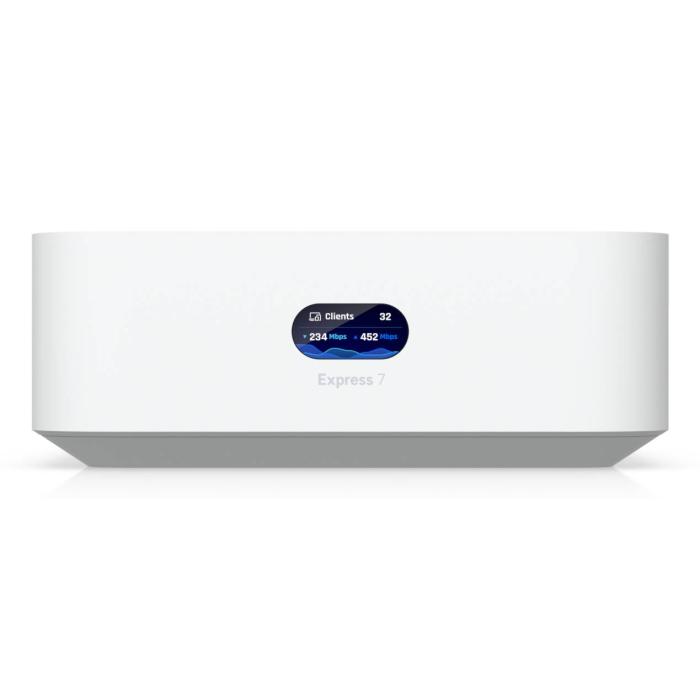

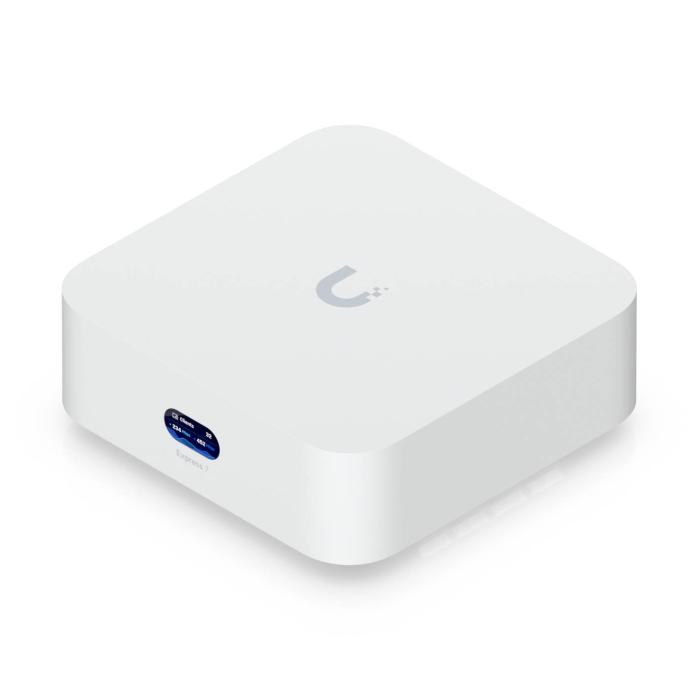

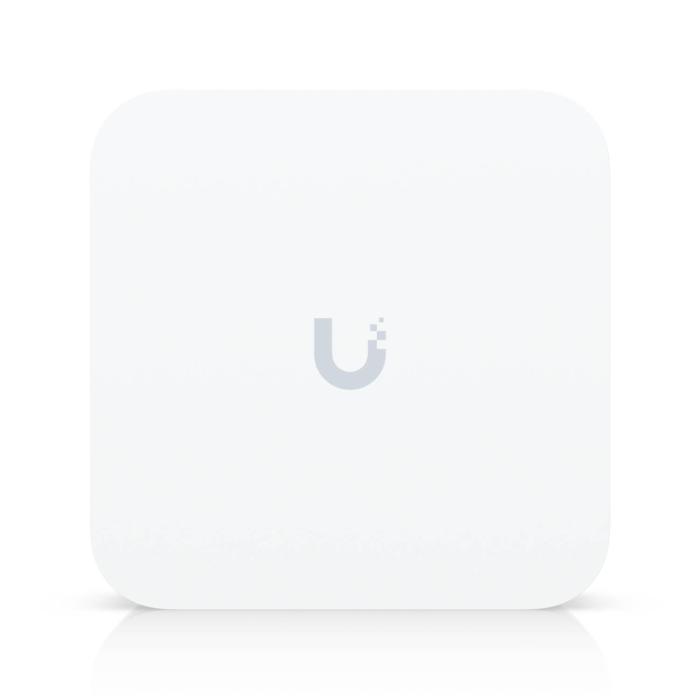

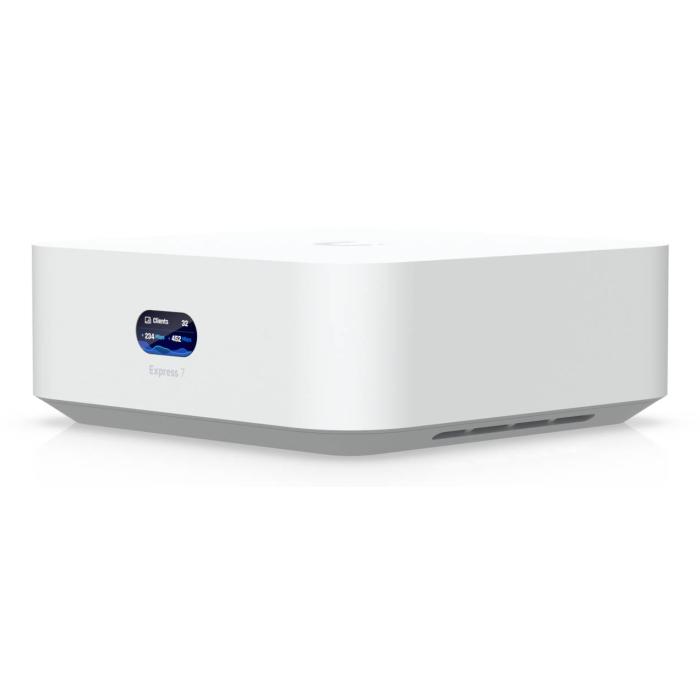

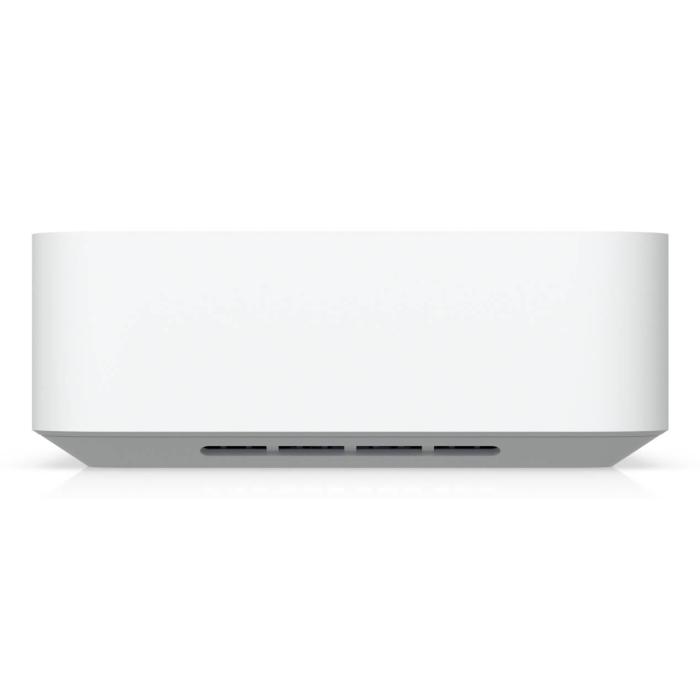

Ubiquiti UniFi Express 7 gateway/controller 10, 100, 1000, 2500, 10000 Mbit/s

215.00 €

177.69 € without VAT

Amount

Brand: UBIQUITI NETWORKS

SKU: 117333 PRC: 598382 EAN: 810010074300 PN: ux7-eu

Description

Specifications

Design

Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: Status

Features

Antenna type: Internal
Antenna gain level (max): 6 dBi
Antennas quantity: 4

Performance

Control display unit: Yes
Display type: LCM
Built-in processor: Yes
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A53
Processor frequency: 1500 MHz
Number of processors installed: 1
Internal memory: 3000 MB

Protocols

Routing protocols: OSPF
DHCP server: Yes

Network

Ethernet LAN data rates: 10, 100, 1000, 2500, 10000 Mbit/s
Networking standards: IEEE 802.1Q
Wi-Fi: Yes
WLAN data transfer rates supported: 1, 2, 5.5, 6, 6.5, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Bluetooth: Yes
Frequency band: 2.4, 5, 6 GHz
Load balancing: Yes
Data transfer rate: 5.7 Gbit/s
Wireless connection: Yes

Security

Security algorithms: 802.1x RADIUS, IPSec, PPSK, TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Firewall security: Yes
VLAN support: Yes

Ports & interfaces

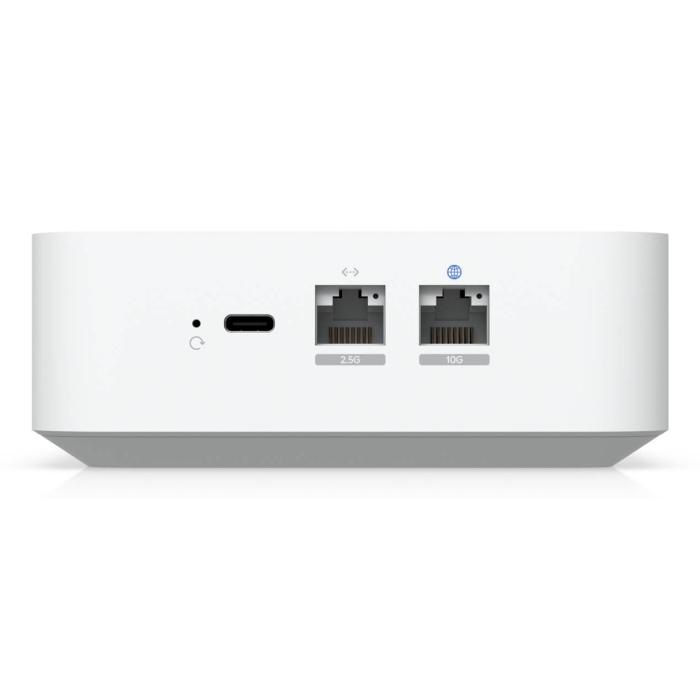

Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)

Management features

Quality of Service (QoS) support: Yes
Reset button: Yes
Multicast support: Yes

Power

Power consumption (max): 22 W
Input voltage: 100 - 240 V
Input current: 5 A
Electromagnetic (EMP) protection: Yes
Electromagnetic (EMP) protection (air): 8 kV
Electromagnetic (EMP) protection (contact): 4 kV

Weight & dimensions

Width: 117 mm
Depth: 117 mm
Height: 42.5 mm
Weight: 422 g

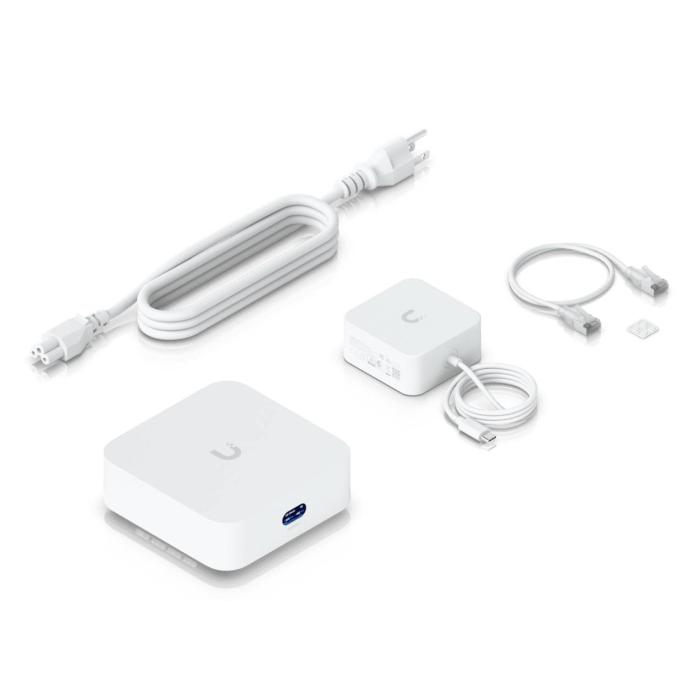

Packaging content

AC adapter included: Yes
Cables included: LAN (RJ-45), Power

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Display

Display diagonal: 2.44 cm (0.96")
