Ubiquiti ULTRA gateway/controller 1000 Mbit/s
More info
Brand: UBIQUITI NETWORKS
118.58 €
98.00 €
without VAT
Stock available: 49 units.
Get it
tomorrow
/
September 3
SKU:
109105
PRC:
577932
EAN:
810084695203
PN:
UCG-ULTRA
Description
The Ubiquiti ULTRA gateway/controller, in its white finish with polycarbonate housing, integrates an ARM Cortex-A53 processor at 1500 MHz with 3072 MB of DDR4 memory and 16384 MB of flash, designed to manage networks efficiently. With Ethernet LAN at 1000 Mbit/s and support for 10/100/1000Base-T(X) cabling, it offers high-speed connectivity for your infrastructure. Its control panel and LED indicators on the LAN facilitate direct monitoring of network status. Additionally, it includes a DHCP server, firewall, and VLAN support, allowing you to segment and protect traffic with flexibility. A compact and functional device for centralising control of your home or office network.
Specifications
Design
- Product colour: White
- Enclosure material: Polycarbonate (PC)
- LED indicators: LAN
Performance
- Control display unit: Yes
- Built-in processor: Yes
- Processor manufacturer: ARM
- Processor family: ARM Cortex
- Processor model: Cortex-A53
- Processor frequency: 1500 MHz
- Number of processors installed: 1
- Internal memory: 3072 MB
- Internal memory type: DDR4
- Flash memory: 16384 MB
Protocols
- DHCP server: Yes
Network
- Ethernet LAN data rates: 1000 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
Security
- Firewall security: Yes
- VLAN support: Yes
Ports & interfaces

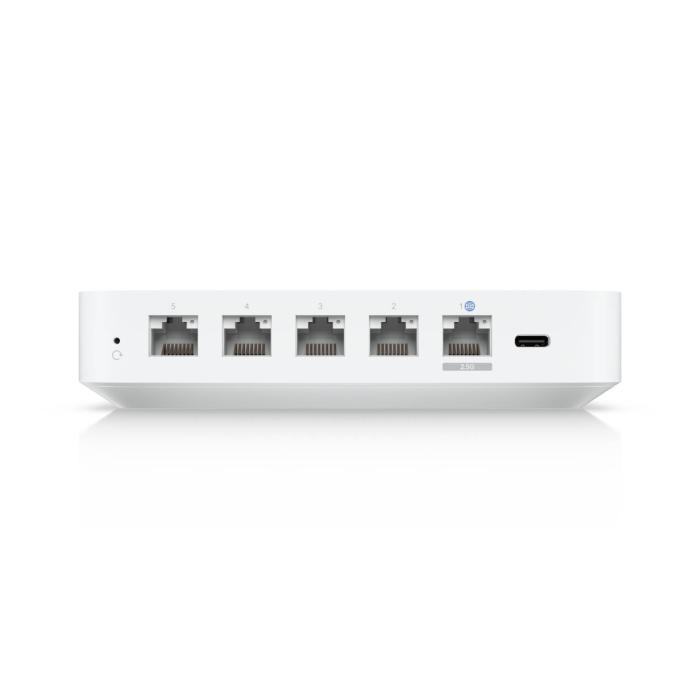

- Ethernet LAN (RJ-45) ports: 4
- WAN connection: Ethernet (RJ-45)
Management features
- Quality of Service (QoS) support: Yes
- Reset button: Yes
Power
- Power consumption (max): 6.2 W
- Input voltage: 100 - 240 V
- Output voltage: 5 V
- Output current: 3 A
Weight & dimensions
- Width: 141.8 mm
- Depth: 127.6 mm
- Height: 30 mm
- Weight: 520 g
Packaging content
- AC adapter included: Yes
- Manual: Yes
- Cables included: LAN (RJ-45)
Operational conditions
- Operating temperature (T-T): -10 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Certificates
- Certification: CE, FCC, IC
