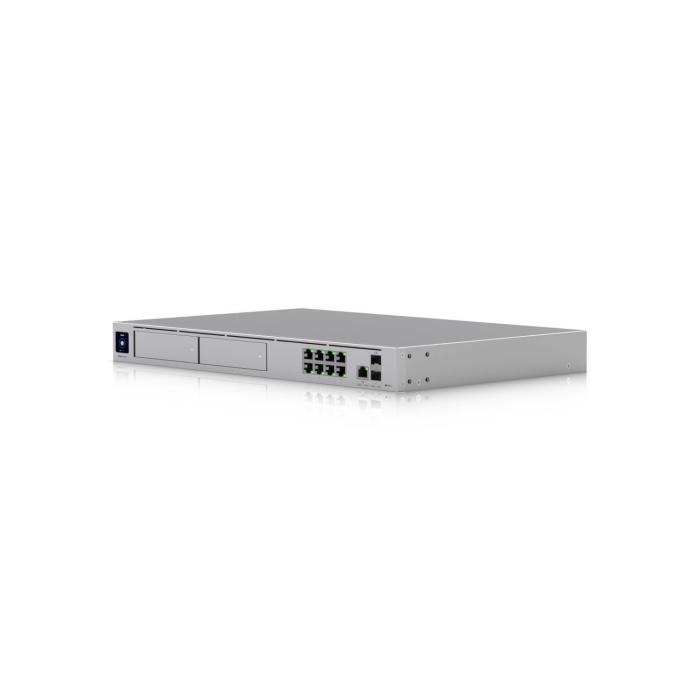

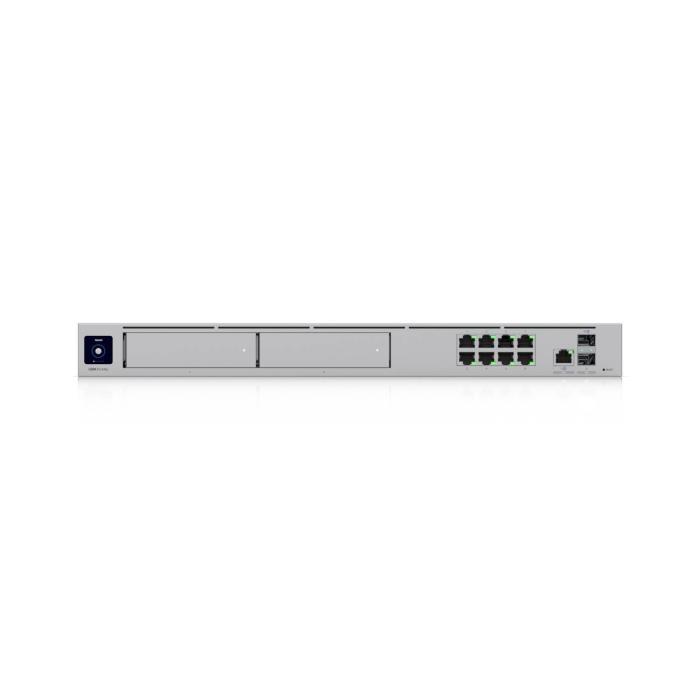

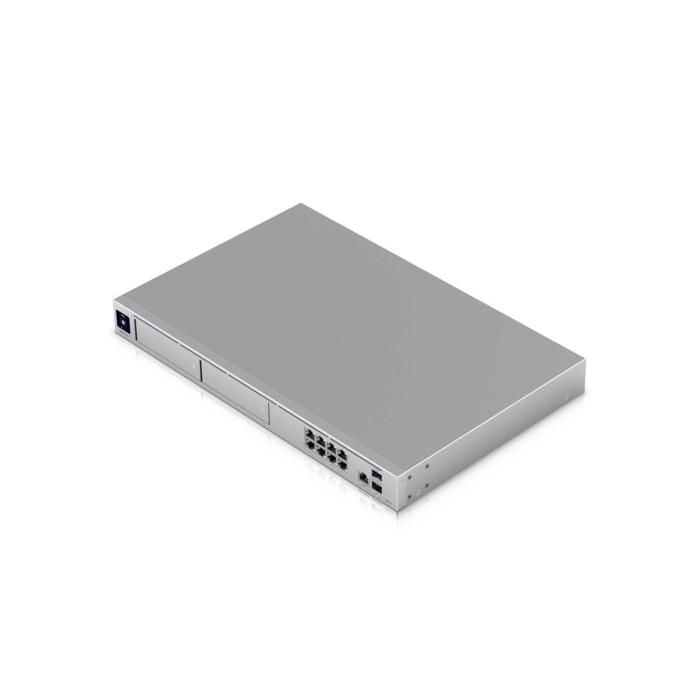

Ubiquiti UniFi Dream Machine Pro Max Managed 2.5G Ethernet (100/1000/2500) 1U Grey
More info
Brand: UBIQUITI NETWORKS
677.18 €
559.65 €
without VAT
Stock available: 34 units.
Get it
on the
September 1
/
September 2
SKU:
107578
PRC:
539739
EAN:
810084693254
PN:
udm-pro-max
Description
The UniFi Dream Machine Pro Max in 1U grey format integrates a managed switch with one 2.5G Ethernet port (100/1000/2500) and nine basic RJ-45 switching ports, plus an additional Gigabit Ethernet socket and two SFP+ slots for 10G links. It supports IP-subnet-based VLANs, policy-based routing, DHCP relay and DHCP server, as well as QoS and IGMP proxy for effective traffic control. With a throughput of 5 Gbit/s, this UBIQUITI NETWORKS device is rack-mountable and centrally managed, offering advanced administration options without the need for physical stacking. Its DC input connector ensures stable power delivery for demanding network operations in professional environments.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 9
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Gigabit Ethernet (copper) ports quantity: 1
- 2.5G Ethernet (copper) ports quantity: 1
- SFP+ module slots quantity: 2
- Power connector: DC-in jack
Network
- 10G support: Yes
- Policy-based routing: Yes
- Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
- VLAN support: Yes
- Virtual LAN features: IP subnet–based VLAN
Data transmission
- Throughput: 5 Gbit/s
Security
- DHCP features: DHCP relay, DHCP server
- IGMP proxy: Yes
Design
- Rack mounting: Yes
- Stackable: No
- Form factor: 1U
- Product colour: Grey
- Housing material: Aluminium, Galvanized steel
- Reset button: Yes
- LED indicators: Activity, Error, Link, Ready
- Display type: LCM
Performance
- Built-in processor: Yes
- Processor model: ARM Cortex-A57
- Processor frequency: 2000 MHz
- Memory type: DDR4-SDRAM
- Internal memory: 8000 MB
- Flash memory: 32000 MB
Power
- Power source: AC/DC
- Power supply included: Yes
- Redundant power supply (RPS) support: Yes
- Number of power supply units: 1
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- DC input voltage: 12 V
- Input current: 2 A
- Power consumption (max): 60 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -10 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 442.4 mm
- Depth: 285.6 mm
- Height: 43.7 mm
- Weight: 4.7 kg

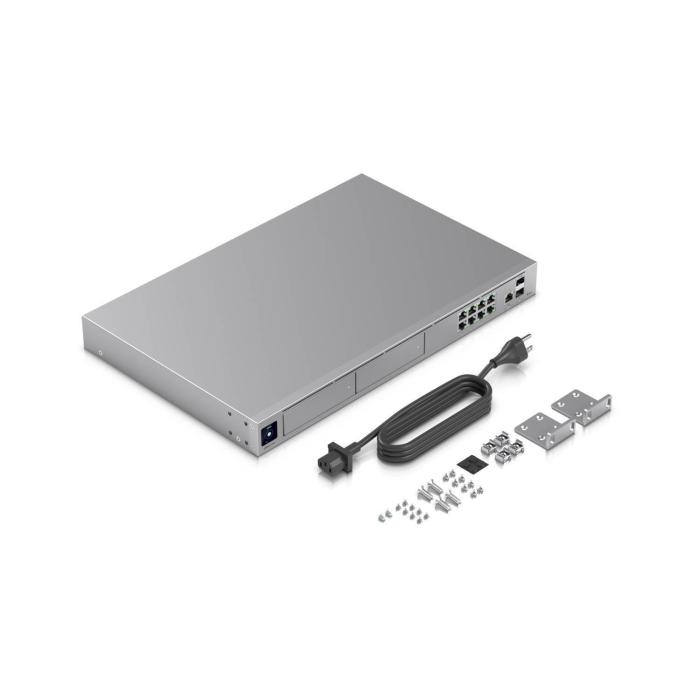

Packaging content
- Cables included: AC
- User guide: Yes
- Rack mount kit: Yes
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
