Description
Mikrotik RB924I-2ND-BT5&BG77 gateway/controller in white with DIN rail mounting and IP20 protection, designed for integration into professional network installations. It incorporates a QCA9531 processor at 650 MHz, 64 MB of internal memory and 16 MB of flash, allowing traffic management with a forwarding rate of 300 Mpps. It offers Wi-Fi 4 (802.11n) wireless connectivity with a maximum transfer rate of 300 Mbit/s and an antenna with 1.5 dBi gain, plus Bluetooth 5.2. Its LAN Ethernet ports operate at 10/100 Mbit/s and it complies with IEEE 802.11a/b/g/n and 802.3af/at standards for Power over Ethernet. This controller is suitable for environments requiring network management with 10/100Base-T(X) cabling options.
Specifications
Design
- Product colour: White

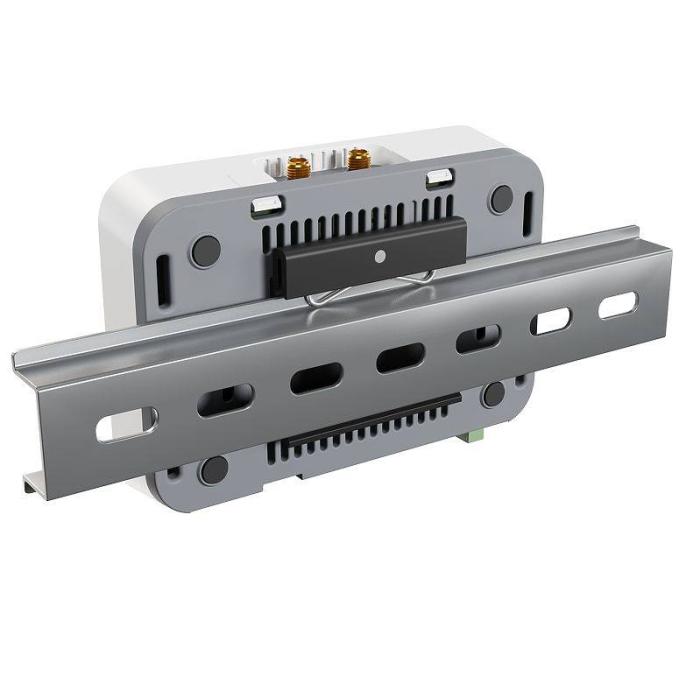

- Mounting type: DIN-rail
- International Protection (IP) code: IP20
Features
- Antenna gain level (max): 1.5 dBi
Performance
- Built-in processor: Yes
- Processor model: QCA9531
- Processor frequency: 650 MHz
- Number of processors installed: 1
- Internal memory: 64 MB
- Flash memory: 16 MB
Network
- Ethernet LAN data rates: 10, 100 Mbit/s
- Forwarding rate: 300 Mpps
- Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
- Wi-Fi: Yes
- Wi-Fi band: Single-band (2.4 GHz)
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 300 Mbit/s
- WLAN data transfer rate (max): 300 Mbit/s
- Bluetooth: Yes
- Bluetooth version: 5.2
- Cabling technology: 10/100Base-T(X)
- Wireless connection: Yes
Ports & interfaces
- Micro-USB 2.0 ports quantity: 1
- SIM card slot: Yes
- SIM card type: NanoSIM
- Ethernet LAN (RJ-45) ports: 2
- Serial interface type: RS-485
Power
- Power consumption (typical): 18 W
- Power over Ethernet (PoE): Yes
Software
- Compatible operating systems: RouterOS
Weight & dimensions
- Width: 122 mm
- Depth: 87 mm
- Height: 26 mm
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Certificates
- Certification: CE, FCC, IC, EAC, ROHS
Logistics data
- Harmonized System (HS) code: 85176990
