Description

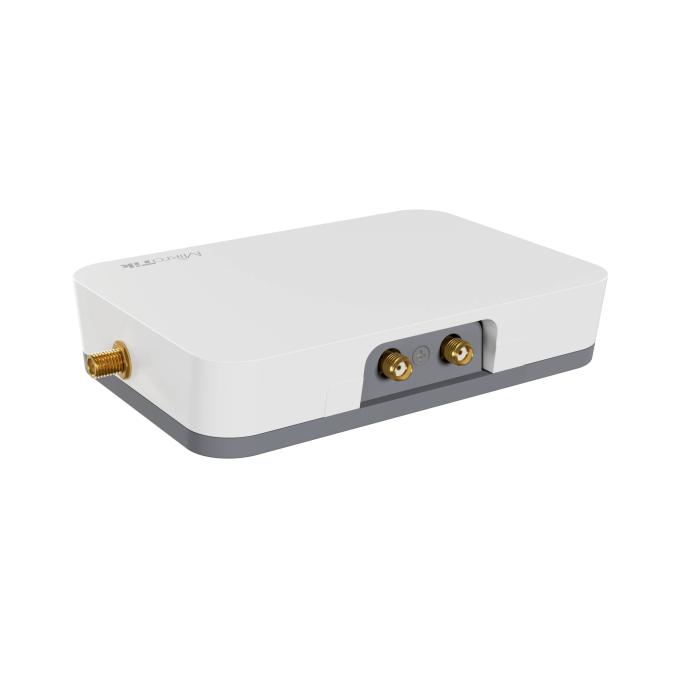

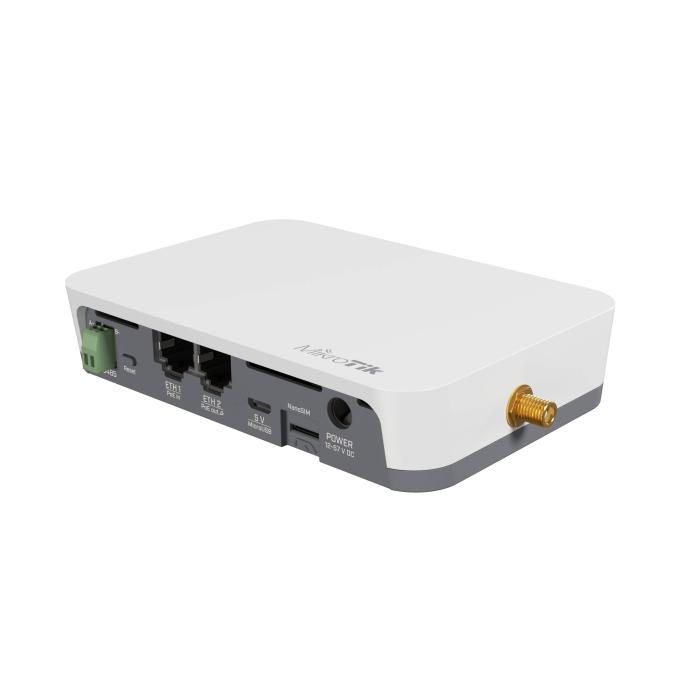

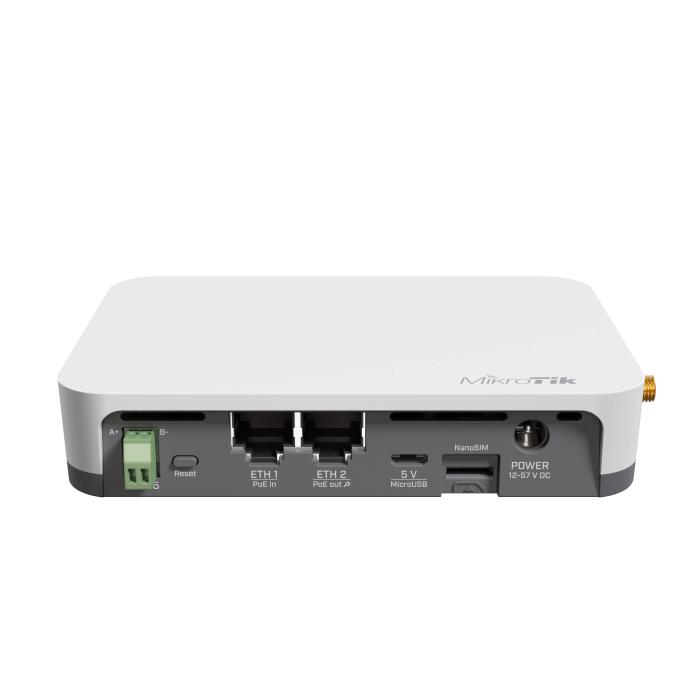

Connect the Mikrotik KNOT LR9 kit, a white gateway and controller that integrates a QCA9531 processor running at 650 MHz with 64 MB of internal memory and 128 MB of flash. This device offers Wi-Fi 4 connectivity on the 2.4 GHz band with a maximum data rate of 300 Mbit/s, plus Ethernet LAN at 10/100 Mbit/s and Bluetooth 5.2 for managing devices. It incorporates GPS and an antenna with gain of up to 1.5 dBi, with a mean time between failures of 200,000 hours for continuous operation in networks. Its design without a control panel and its integrated processor make it suitable for automation and monitoring tasks in home or small office environments.
Specifications
Design
- Product colour: White
Features
- Antenna gain level (max): 1.5 dBi
- GPS (satellite): Yes
- Mean time between failures (MTBF): 200000 h
Performance
- Control display unit: No
- Built-in processor: Yes
- Processor model: QCA9531
- Processor frequency: 650 MHz
- Number of processors installed: 1
- Internal memory: 64 MB
- Flash memory: 128 MB
Network
- Ethernet LAN data rates: 10, 100 Mbit/s
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 300 Mbit/s
- WLAN data transfer rate (max): 300 Mbit/s
- Bluetooth: Yes
- Bluetooth version: 5.2
- Frequency band: 2.4 GHz
Ports & interfaces
- SIM card slot: Yes
- SIM card type: NanoSIM
- Ethernet LAN (RJ-45) ports: 2
- Serial interface type: RS-485
Power
- Power consumption (max): 23 W
- Power over Ethernet (PoE) type supported: Passive PoE
- Power over Ethernet (PoE): Yes
- DC input voltage: 12 - 57 V
Software
- Compatible operating systems: RouterOS
Weight & dimensions
- Width: 122 mm
- Depth: 87 mm
- Height: 26 mm
Packaging content
- Quick start guide: Yes
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Technical details
- BeiDou: Yes
- Galileo: Yes
Certificates
- Certification: CE, FCC, IC
