Ubiquiti Cloud Gateway Max gateway/controller 10, 100, 1000 Mbit/s
More info
Brand: UBIQUITI NETWORKS
315.56 €
260.79 €
without VAT
Stock available: 14 units.
Get it
on the
September 1
/
September 2
SKU:
117608
PRC:
598390
EAN:
810084697122
PN:
ucg-max
Description

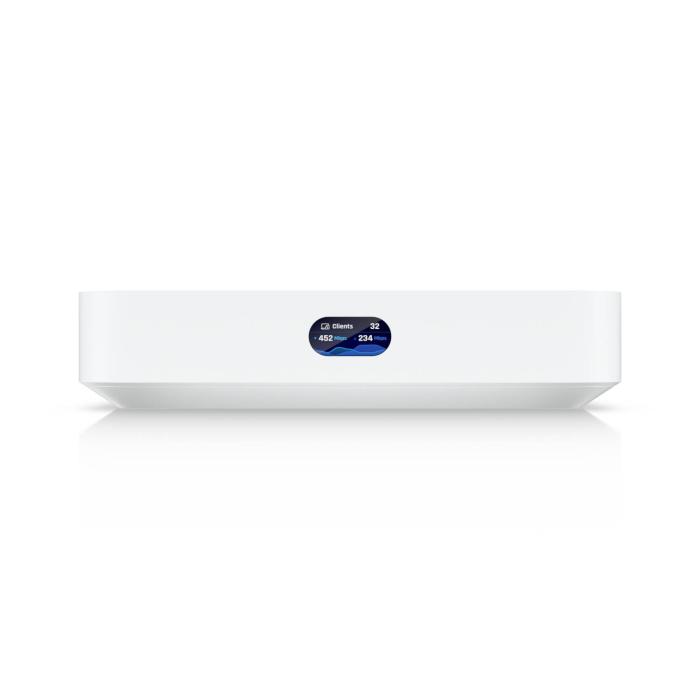

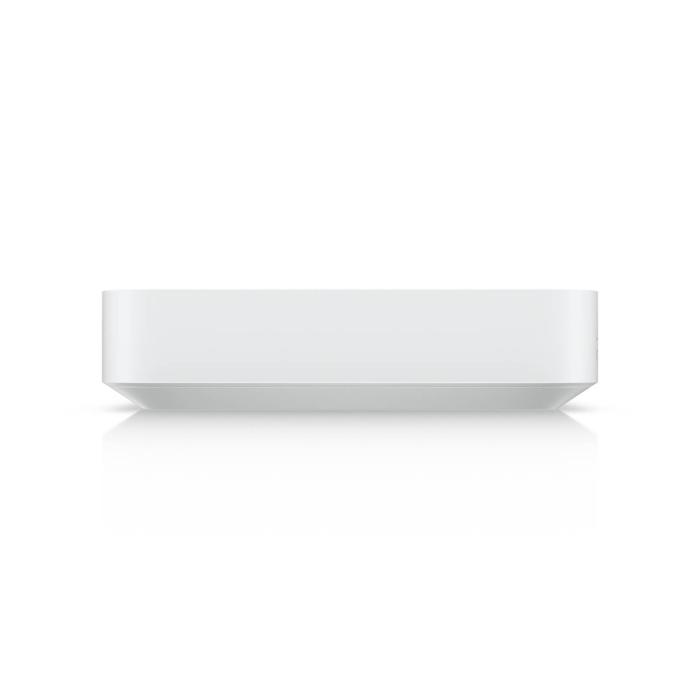

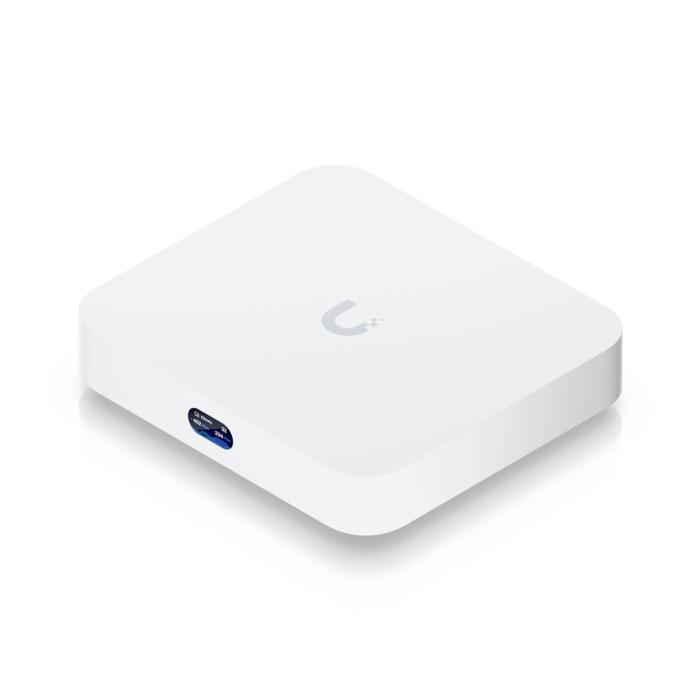

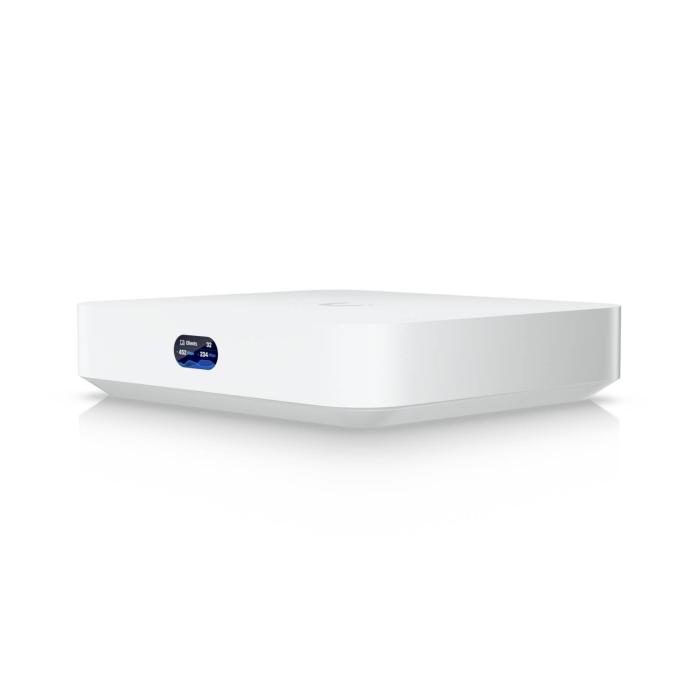

Add the Ubiquiti Cloud Gateway Max gateway and controller to your network to manage traffic at speeds of 10, 100 and 1000 Mbit/s over 10/100/1000Base-T(X) cabling, including Bluetooth connectivity for agile setup. This white device with a polycarbonate housing integrates an ARM Cortex-A53 processor at 1500 MHz, 3072 MB DDR4 memory and 512 GB SSD storage to run the controller without relying on an external server. It also features a control panel, activity and LAN LED indicators, and an LCM display for monitoring system status, while its DHCP server facilitates automatic IP address assignment.
Specifications
Design
- Product colour: White
- Enclosure material: Polycarbonate (PC)
- LED indicators: Activity, LAN
Performance
- Control display unit: Yes
- Display type: LCM
- Built-in processor: Yes
- Processor manufacturer: ARM
- Processor family: ARM Cortex
- Processor model: Cortex-A53
- Processor frequency: 1500 MHz
- Number of processors installed: 1
- Internal memory: 3072 MB
- Internal memory type: DDR4
- SSD capacity: 512 GB
Protocols
- DHCP server: Yes
Network
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Bluetooth: Yes
- Cabling technology: 10/100/1000Base-T(X)
Security
- Firewall security: Yes
- VLAN support: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 4
- WAN connection: Ethernet (RJ-45)
Management features
- Quality of Service (QoS) support: Yes
- Reset button: Yes
Power
- Power consumption (max): 16.1 W
- Input voltage: 100 - 240 V
- Output voltage: 5 V
- Output current: 5 A
Weight & dimensions
- Width: 141.8 mm
- Depth: 127.6 mm
- Height: 30 mm
- Weight: 519 g

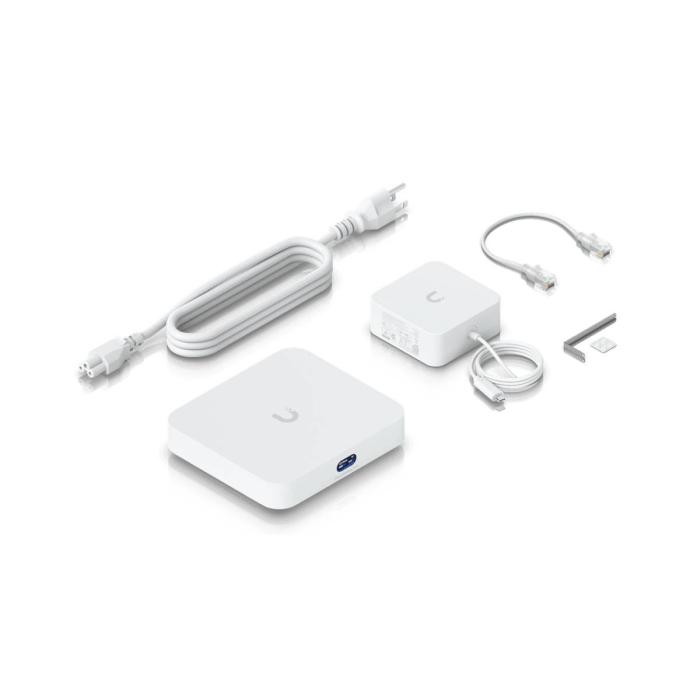

Packaging content
- AC adapter included: Yes
- Manual: Yes
- Cables included: LAN (RJ-45)
Operational conditions
- Operating temperature (T-T): -10 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
