Description

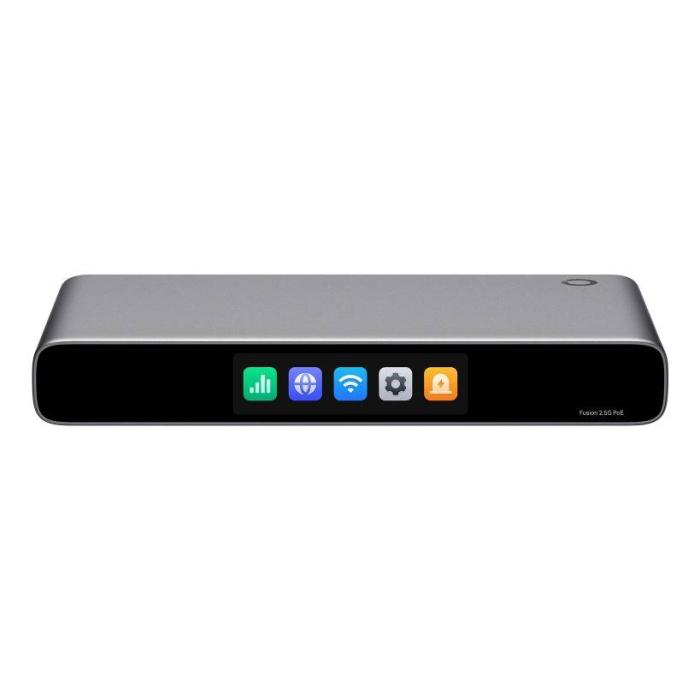

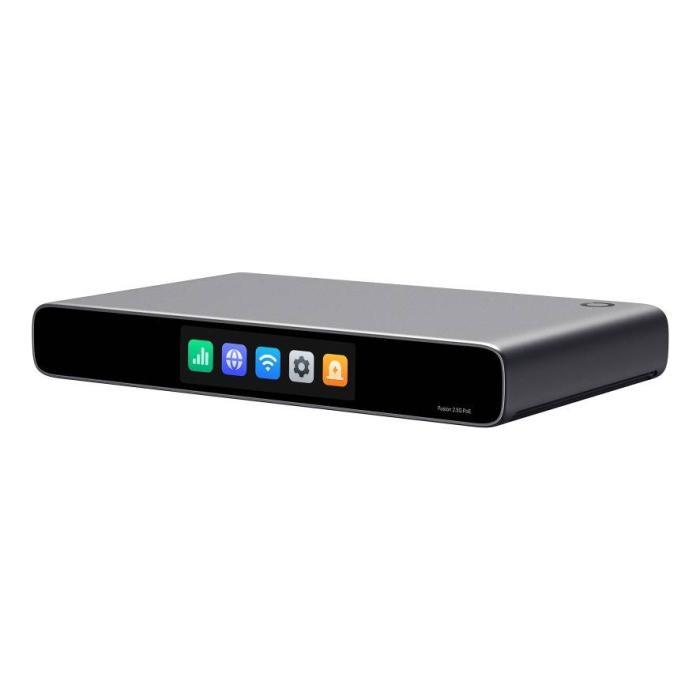

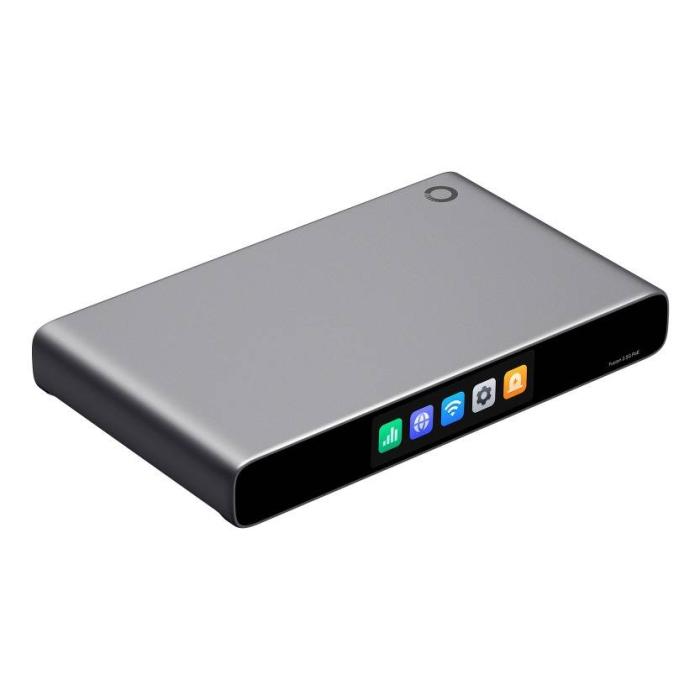

TP-Link Omada Fusion gateway and controller with 10, 100, 1000 and 2500 Mbit/s Ethernet ports and 9 RJ-45 ports. Compatible with PoE+ and with IEEE 802.1x network standards, it integrates 2048 MB of internal memory and a single processor. The WAN connection is made via RJ-45 Ethernet and it includes a DC input plug. It has a 9.37 cm (3.69") LCM display and LAN LED indicators. Its housing is made of polycarbonate in black and grey, with a maximum power consumption of 131 W. It supports rack, desktop or wall mounting, with dimensions of 226 mm in width, 135 mm in depth and 31.5 mm in height. Administration can be carried out via the web and it offers QoS, dynamic DNS and UPnP support, as well as SNMP, SNMPv2c and SNMPv3 security algorithms.
Specifications
Design
- Product colour: Black, Grey
- Enclosure material: Polycarbonate (PC)
- Mounting type: Rack/Desktop/Wall
- LED indicators: LAN
Performance
- Control display unit: Yes
- Display type: LCM
- Built-in processor: Yes
- Number of processors installed: 1
- Internal memory: 2048 MB
- Internal memory type: DDR4
Data transmission
- Static route: Yes
Protocols
- DHCP server: Yes
- DMZ support: Yes
Network
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Networking standards: IEEE 802.1x
- Dynamic DNS (DDNS): Yes
- VPN support: Omada LightLink VPN, WireGuard VPN, OpenVPN, IPsec VPN, SSL VPN, L2TP VPN, PPTP VPN
Security
- Access Control List (ACL): Yes
- Security algorithms: SNMP, SNMPv2c, SNMPv3
- Firewall security: Yes
- VLAN support: Yes
- Network address translation (NAT): Yes
Ports & interfaces

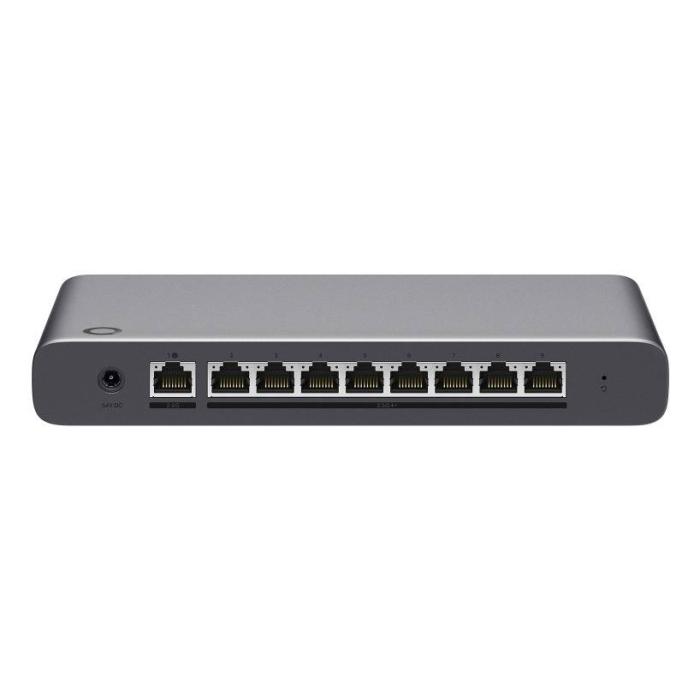

- Ethernet LAN (RJ-45) ports: 9
- WAN connection: Ethernet (RJ-45)
- DC-in jack: Yes
Management features
- Web-based management: Yes
- Quality of Service (QoS) support: Yes
- Universal Plug and Play (UPnP): Yes
- Reset button: Yes
- Syslog: Yes
Power
- Power consumption (max): 131 W
- Input current: 2.43 A
- Power over Ethernet (PoE) type supported: PoE+
- Power over Ethernet (PoE): Yes
- DC input voltage: 54 V
- Electrostatic Discharge (ESD) protection: Yes
- Electrostatic Discharge (ESD) protection (air): 8 kV
- Electrostatic Discharge (ESD) protection (contact): 4 kV
Weight & dimensions
- Width: 226 mm
- Depth: 135 mm
- Height: 31.5 mm
- Weight: 728 g
Packaging content
- AC adapter included: Yes
- Manual: Yes
- Cables included: AC, LAN (RJ-45)
Operational conditions
- Operating temperature (T-T): -10 - 40 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Display
- Display diagonal: 9.37 cm (3.69")
