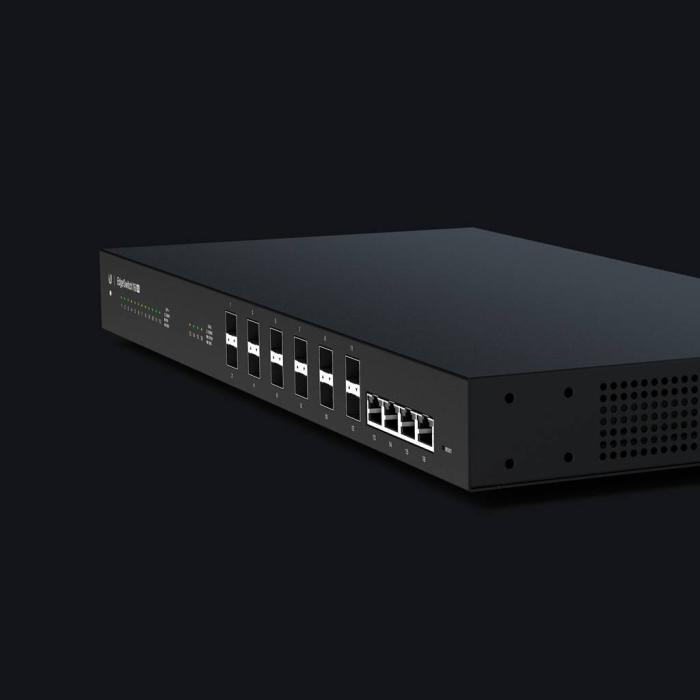

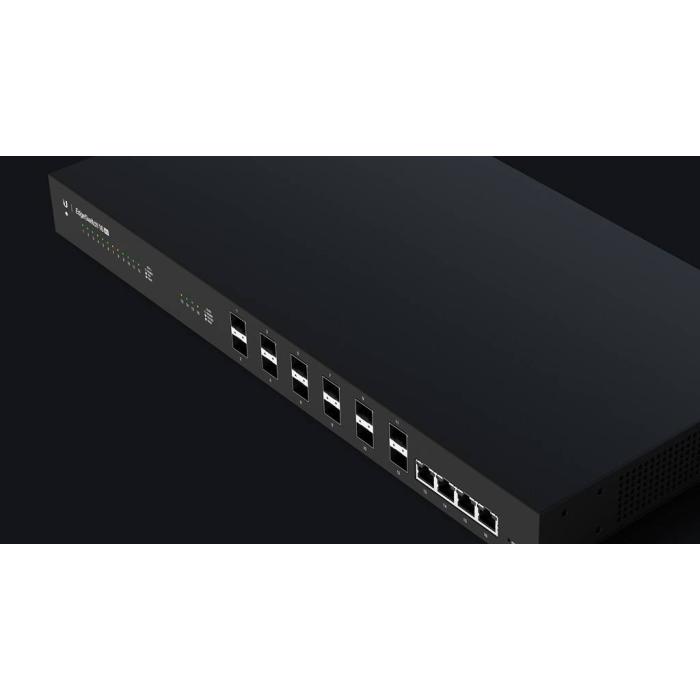

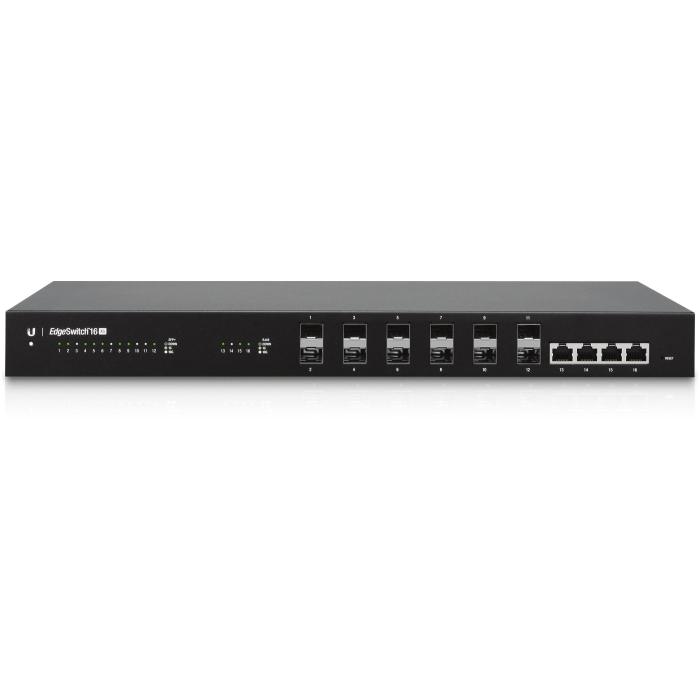

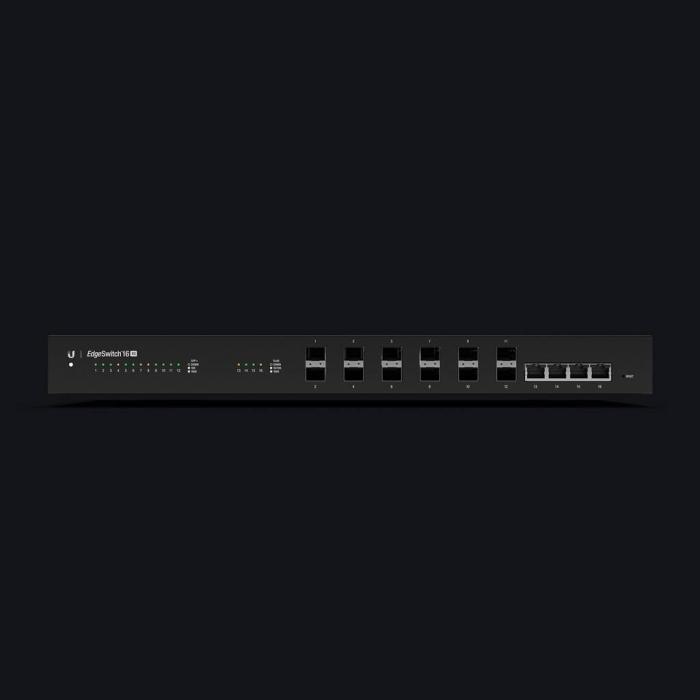

Ubiquiti EdgeSwitch 16 XG Managed Gigabit Ethernet (10/100/1000) 1U Black
More info
Brand: UBIQUITI NETWORKS
587.00 €Stock available: 0 units.
Unavailable
SKU:
79300
PRC:
161024
EAN:
810354024535
PN:
ES-16-XG
Description
Managed switch from Ubiquiti Networks' EdgeSwitch series, model EdgeSwitch 16 XG in a 1U form factor and black colour, designed for integration into networks requiring high performance. This unit provides four RJ-45 Gigabit Ethernet ports (10/100/1000) and twelve SFP+ slots for connecting fibre or copper cables up to 10 Gbit/s, enabling data transfer of up to 10000 Mbit/s on its links. With support for 4093 VLANs, including Private VLAN, Tagged VLAN and Voice VLAN features, as well as spanning tree protocol, flow control and link aggregation, it facilitates advanced web-based administration and Quality of Service (QoS).
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 4
- SFP+ module slots quantity: 12
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 10BASE-TX, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4093
Data transmission
- Switching capacity: 320 Gbit/s
- Forwarding rate: 238.1 Mpps
- MAC address table: 16384 entries
- Number of queues: 8
- Static route: Yes
- Jumbo frames support: Yes
Security
- DHCP features: DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SSH-1.5, SSH-2, SSL/TLS
- MAC address filtering: Yes
- Authentication: Guest VLAN, Port-based authentication
- Password protection: Yes
- Authentication type: IEEE 802.1x, RADIUS
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP v1/v2/v3, Telnet
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Activity, Link, Speed
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 16 - 25 V
- Power consumption (max): 36 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -5 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 443 mm
- Depth: 221 mm
- Height: 43 mm
- Weight: 2.62 kg
Certificates
- Certification: ETSI300-019-1.4 CE, FCC, IC
Logistics data
- Harmonized System (HS) code: 85176990
