Cisco CBS220-24T-4G Managed L2 Gigabit Ethernet (10/100/1000) 1U White

Return

Product 1 image

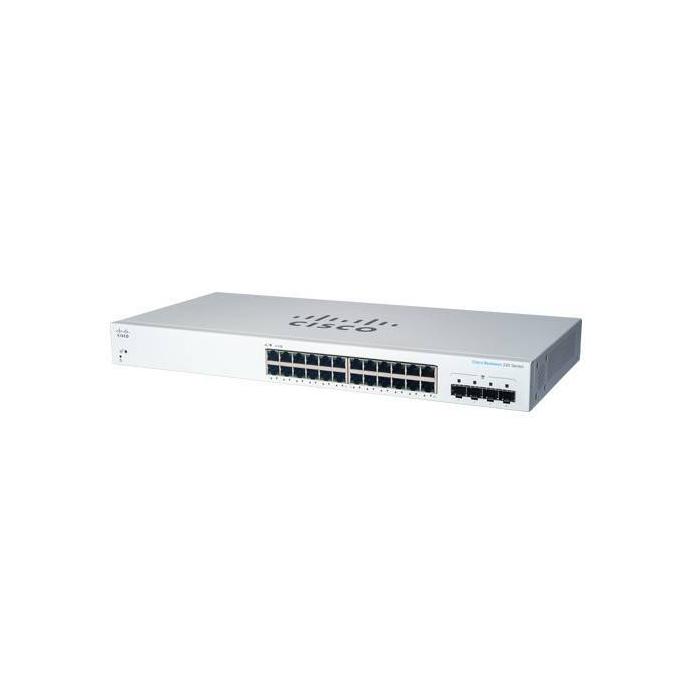

Cisco CBS220-24T-4G Managed L2 Gigabit Ethernet (10/100/1000) 1U White

Not avaliable

Amount

Brand: CISCO

SKU: 113088 PRC: 360881 EAN: 889728344807 PN: CBS220-24T-4G-EU

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4

Network

Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802
10G support: Yes
Port mirroring: Yes
IP routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Number of VLANs: 256

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 41.66 Mpps
MAC address table: 8192 entries
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: SNMP, SNMPv2, SNMPv3
MAC address filtering: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication type: IEEE 802.1x, RADIUS
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes
Multicast MAC address table: 8192 entries

Protocols

Management protocols: SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP

Design

Rack mounting: Yes
Form factor: 1U
Product colour: White
Reset button: Yes
LED indicators: Yes

Performance

Built-in processor: Yes
Internal memory: 256 MB
Flash memory: 64 MB
Firmware upgradeable: Yes

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 61.42 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 203 mm
Height: 44 mm
Weight: 2.75 kg

Logistics data

Harmonized System (HS) code: 85176990
