Description

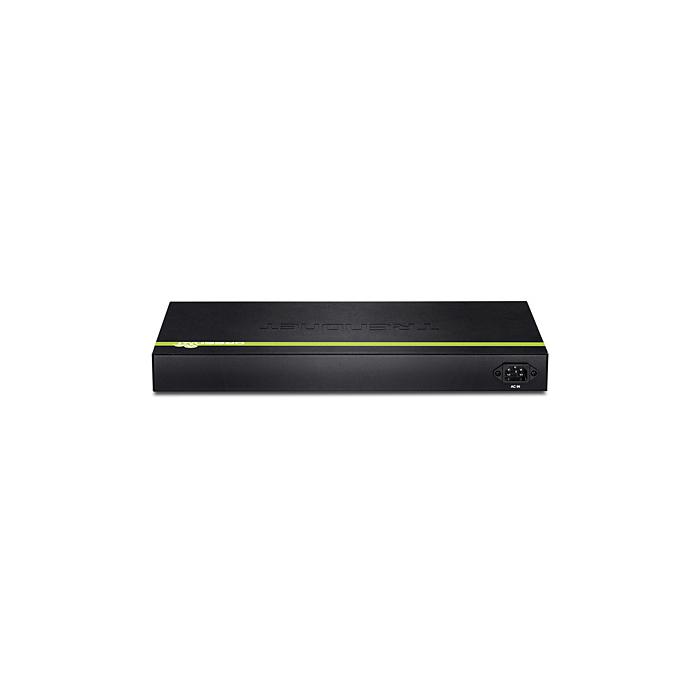

Managed Trendnet TPE-2840WS switch with 24 Gigabit Ethernet ports (10/100/1000) and 4 SFP slots in a 1U form factor, designed for corporate networks requiring control and flexibility. Its web-based management, QoS support and VLANs (up to 256) let you prioritise traffic and segment the network without complications, while Spanning Tree, flow control and port mirroring ensure stability and monitoring. With integrated PoE capability and a performance of 41.7 Mpps, this unit handles structured cabling for 10BASE-T, 100BASE-TX and 1000BASE-T, and also supports link aggregation to expand bandwidth.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- MIB support: MIB, MIB II
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- SFP module slots quantity: 4
Network
- Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Number of VLANs: 256
Data transmission
- Switching capacity: 56 Gbit/s
- Throughput: 41.7 Mpps
- MAC address table: 16000 entries
Security
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS, SSL/TLS
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP v1/v2c/v3, RMON v1, HTTP/HTTPS
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
- Number of fans: 3 fan(s)
Performance
- Noise level: 54 dB
- Buffer size: 1024 KB
- Mean time between failures (MTBF): 257362 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 240.2 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 20
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 185 W
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 440 mm
- Depth: 250 mm
- Height: 44.5 mm
- Weight: 3.8 kg
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
