Description

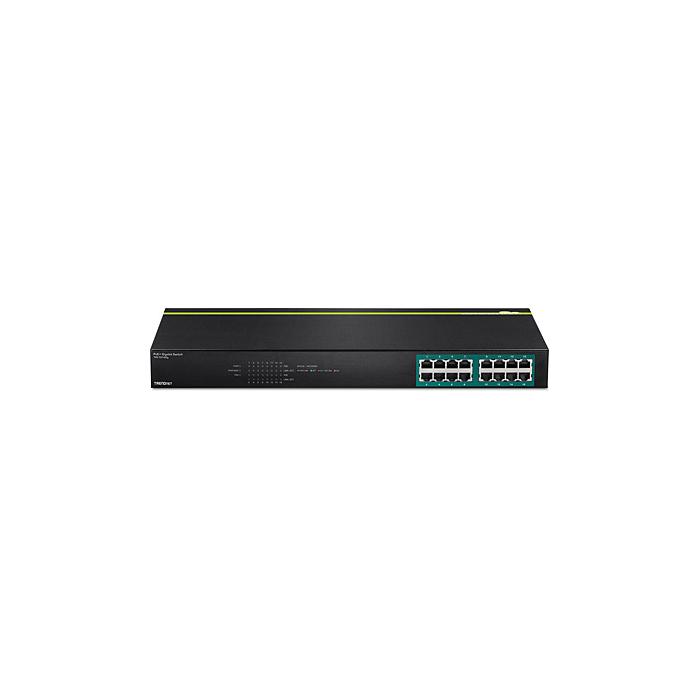

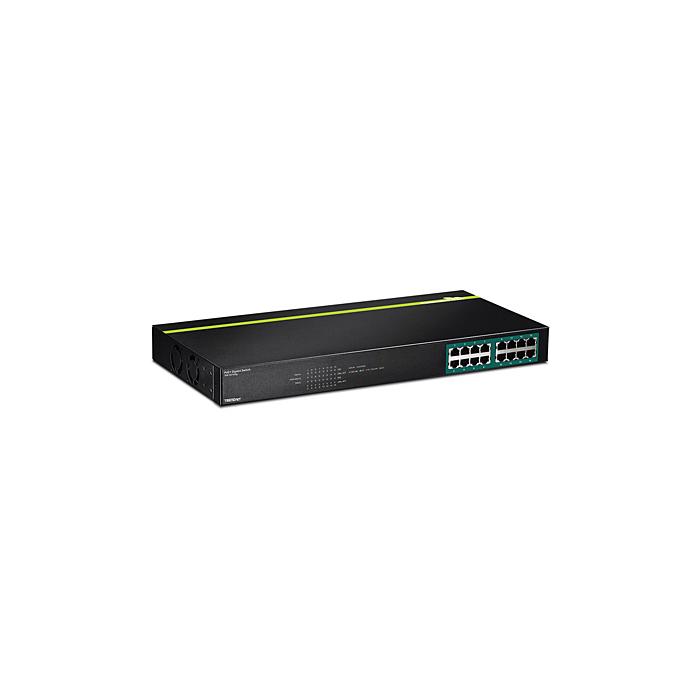

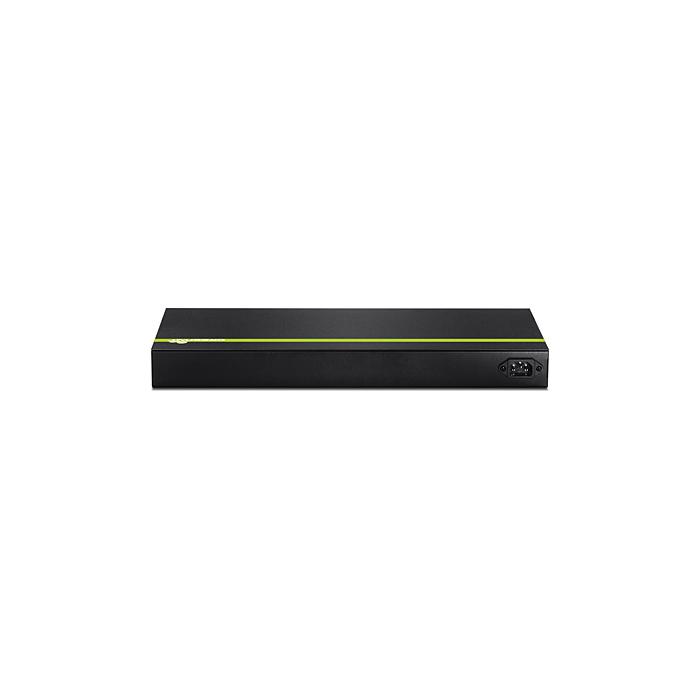

Connect up to 16 devices with the TRENDNET TPE-TG160G unmanaged switch, a Gigabit Ethernet (10/100/1000) model in 1U format with a black metal housing for rack mounting. This unmanaged L2 switch integrates PoE power with support for IEEE 802.3af and 802.3at standards, as well as flow control and full duplex for stable transmission. With a switching capacity of 32 Gbit/s, a throughput of 23.8 Mpps, and a MAC address table of 8000 entries, it manages network traffic efficiently. Its LED indicators and compliance with standards such as IEEE 802.3, 802.3u, and 802.3ab facilitate monitoring and compatibility with 10BASE-T, 100BASE-TX, and 1000BASE-T wired environments.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 16
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
Data transmission
- Switching capacity: 32 Gbit/s
- Throughput: 23.8 Mpps
- MAC address table: 8000 entries
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
Performance
- Buffer size: 512 KB
Power
- Power consumption (typical): 36 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 16
- Total Power over Ethernet (PoE) budget: 246 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 440 mm
- Depth: 210 mm
- Height: 44 mm
- Weight: 3 kg
Certificates
- Certification: CE FCC
Logistics data
- Harmonized System (HS) code: 85176990
