Description

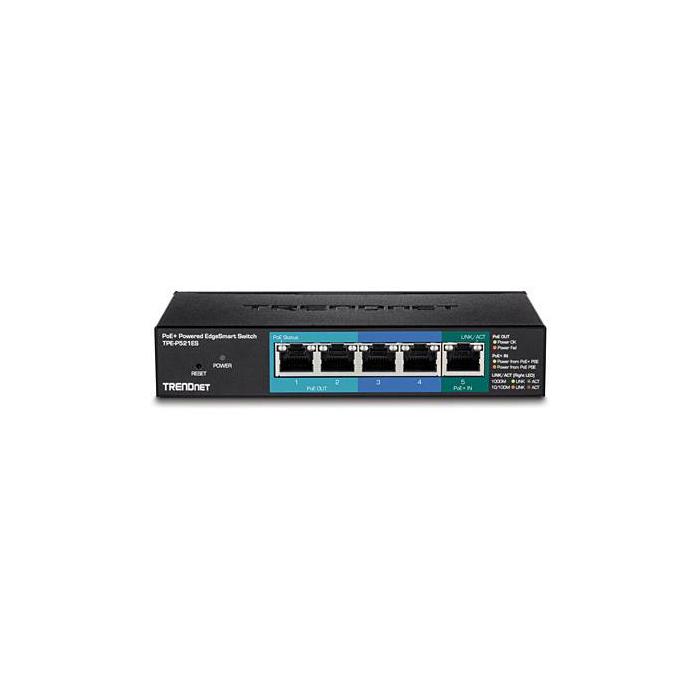

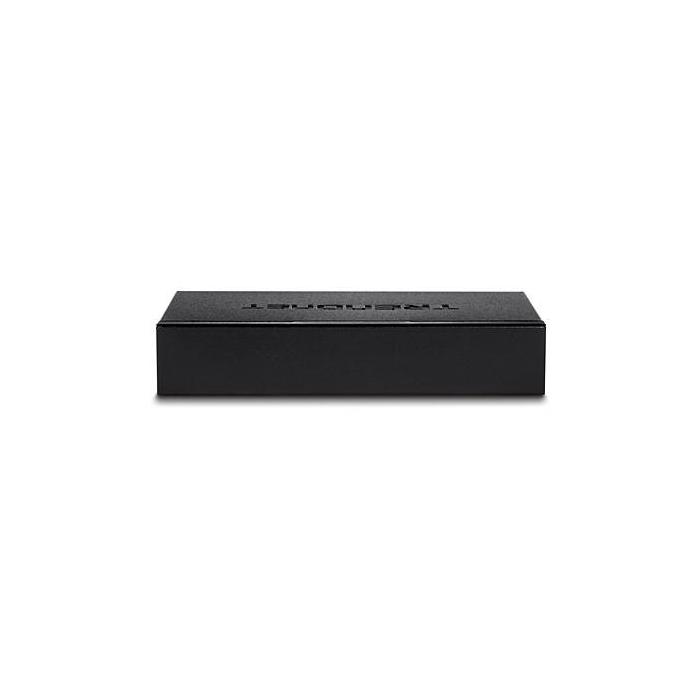

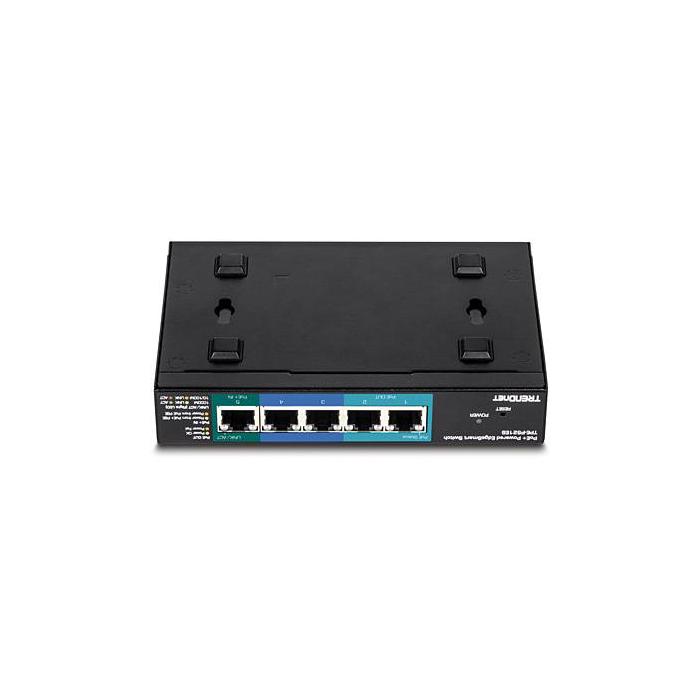

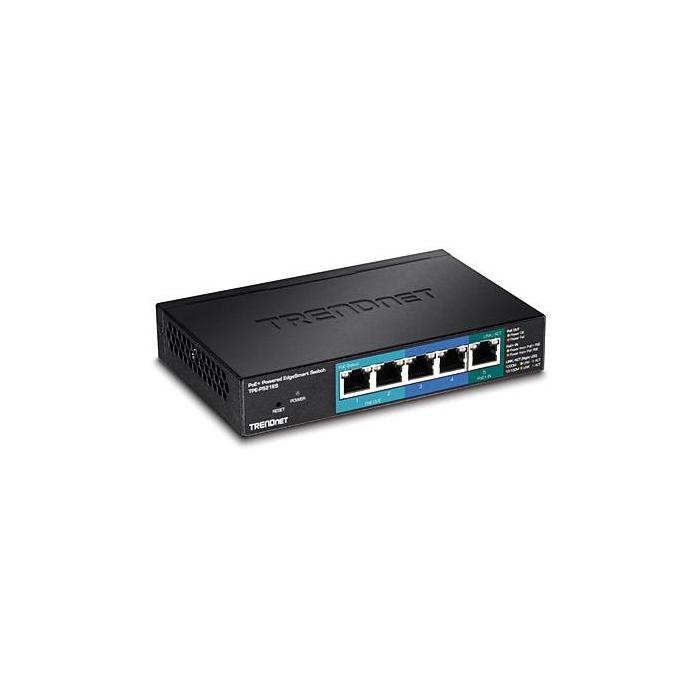

Trendnet TPE-P521ES managed switch with five Gigabit Ethernet ports (10/100/1000), designed in black to integrate into your home or office network. This model incorporates PoE to power compatible devices directly from the port, and offers advanced features such as VLAN support (up to 4094), QoS, storm control, port mirroring and spanning tree protocol. With a switching capacity of 10 Gbit/s, forwarding rate of 7.44 Mpps and jumbo frame support of 9216 bytes, it manages traffic efficiently; its MAC table of 2048 entries and loop protection ensure stability, while IGMP optimises multicast transmission.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802
- 10G support: No
- Port mirroring: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN, Port-based VLAN
- Number of VLANs: 4094
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.44 Mpps
- MAC address table: 2048 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- IGMP snooping: Yes
- Loop protection: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP v1, v2c
Design
- Rack mounting: No
- Product colour: Black
- Reset button: Yes
- LED indicators: Yes
- Wall mountable: Yes
Performance
- Firmware upgradeable: Yes
- Buffer size: 512 KB
- Mean time between failures (MTBF): 730455 h
Power
- Power consumption (max): 20.4 W
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 2
- Power over Ethernet plus (PoE+) ports quantity: 1
- Total Power over Ethernet (PoE) budget: 18 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 150 mm
- Depth: 97 mm
- Height: 28.6 mm
- Weight: 370 g
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
