Description

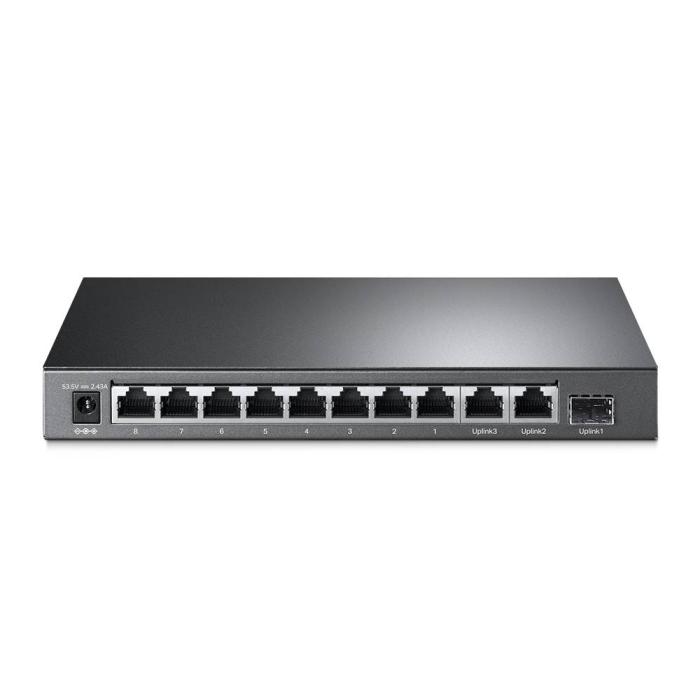

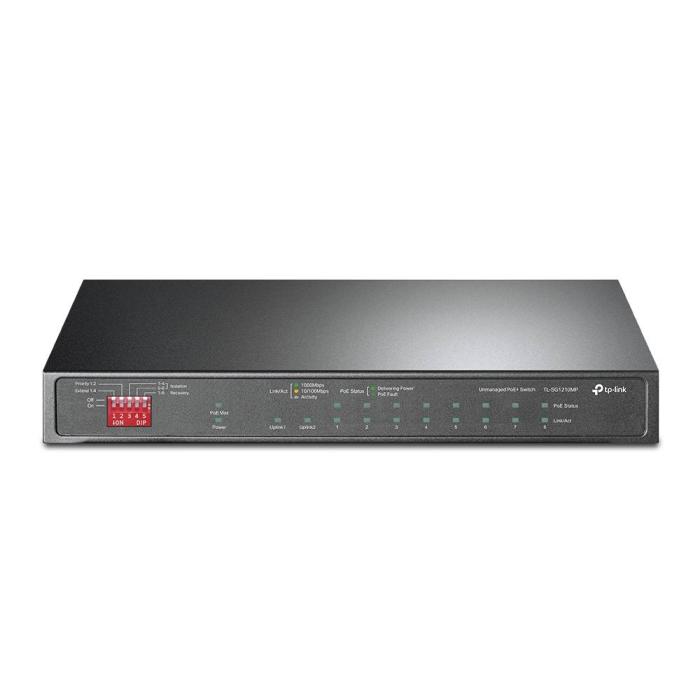

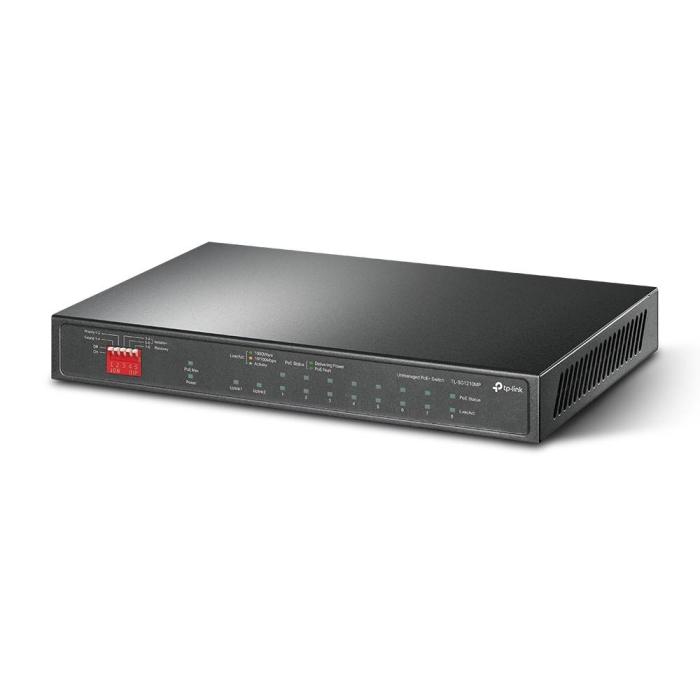

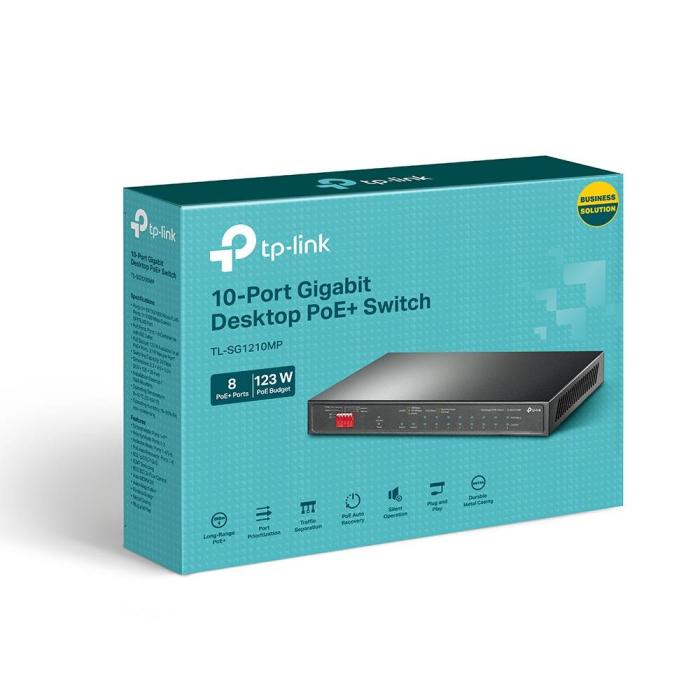

The TP-Link TL-SG1210MP switch, in black, is an unmanaged model with 9 Gigabit Ethernet RJ-45 ports and 1 SFP combo port for expanding the network via fibre. This device provides Power over Ethernet, so you can connect IP cameras or access points without needing additional power supplies for each device. With a switching capacity of 20 Gbit/s and a MAC address table of 4000 entries, it efficiently manages traffic. It includes flow control, auto-negotiation, auto MDI/MDI-X, and support for Cat3, Cat4, Cat5, and Cat5e cabling, ensuring a simple and reliable installation.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 9
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 1
Network
- Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Packet buffer memory: 14.88 MB
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Yes
Performance
- Fanless: Yes
Power
- Power source: DC
- Input current: 2.43 A
- Input voltage: 53.5 V
- Power consumption (max): 141.4 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 123 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 482.17 BTU/h
Weight & dimensions
- Width: 209 mm
- Depth: 126 mm
- Height: 26 mm
Packaging content
- Quick start guide: Yes
Packaging data
- Package width: 240 mm
- Package depth: 315 mm
- Package height: 70 mm
- Package weight: 1.41 kg
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
