Description

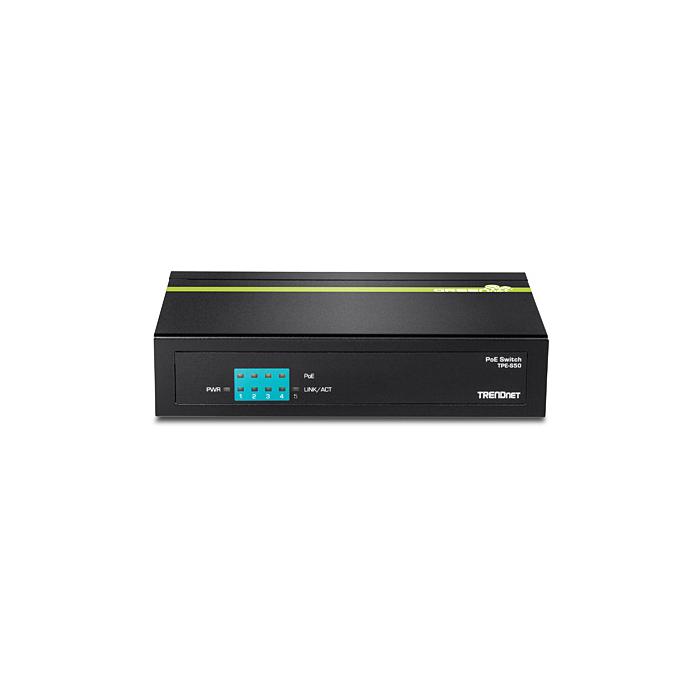

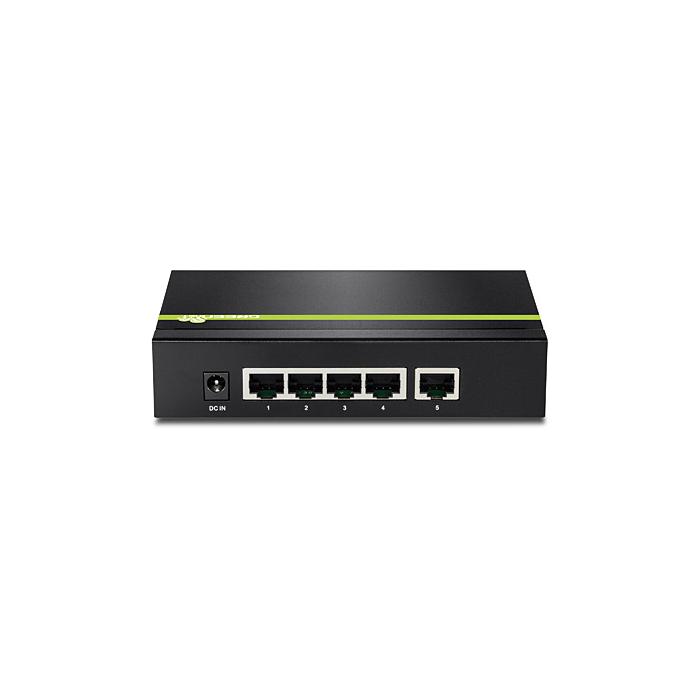

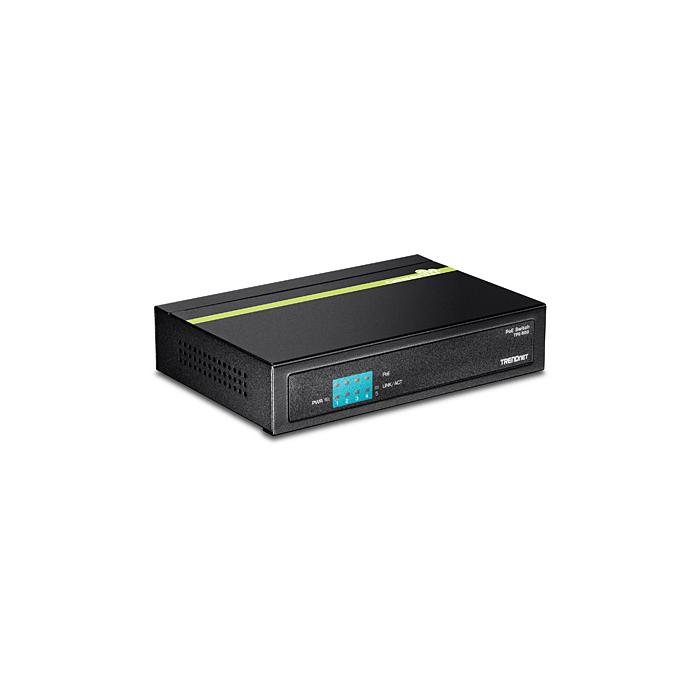

The TRENDNET TPE-S50 in black is an unmanaged L2 switch with five Fast Ethernet (10/100) ports and PoE support, all in a compact metal housing that makes it easy to place on desks or flat surfaces. Connect up to five compatible network devices, such as IP cameras or access points, and power it via a DC input socket. It includes flow control, full duplex operation, and a switching capacity of 1 Gbit/s, with a MAC address table of 1024 entries and a forwarding rate of 744000 packets per second at 100 Mbps. It complies with IEEE 802.3, 802.3af, 802.3az, 802.3u, and 802.3x standards, and its LED indicators help you monitor the status of each connection.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity: 5
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Full duplex: Yes
- Flow control support: Yes
Data transmission
- Switching capacity: 1 Gbit/s
- MAC address table: 1024 entries
- Packet forwarding rate (100 Mbps): 744000 pps
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
Performance
- Buffer size: 56 KB
- Plug and Play: Yes
Power
- Power consumption (max): 36 W
- AC input voltage: 110 - 240 V
- AC input frequency: 50 - 60 Hz
- Output voltage: 48 V
- Output current: 0.75 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 31 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 141 mm
- Depth: 95 mm
- Height: 30 mm
- Weight: 337 g
Packaging content
- Quick start guide: Yes
Packaging data
- AC adapter included: Yes
Certificates
- Certification: FCC, CE
Logistics data
- Harmonized System (HS) code: 85176990
