Name: TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Brand: TP-LINK
Price: 86.65 USD
Availability: InStock

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

$86.65

$86.65 without VAT

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out. More info

Amount

Brand: TP-LINK

SKU: 105707 PRC: 522129 EAN: 4897098689486 PN: SG2005P-PD

Description

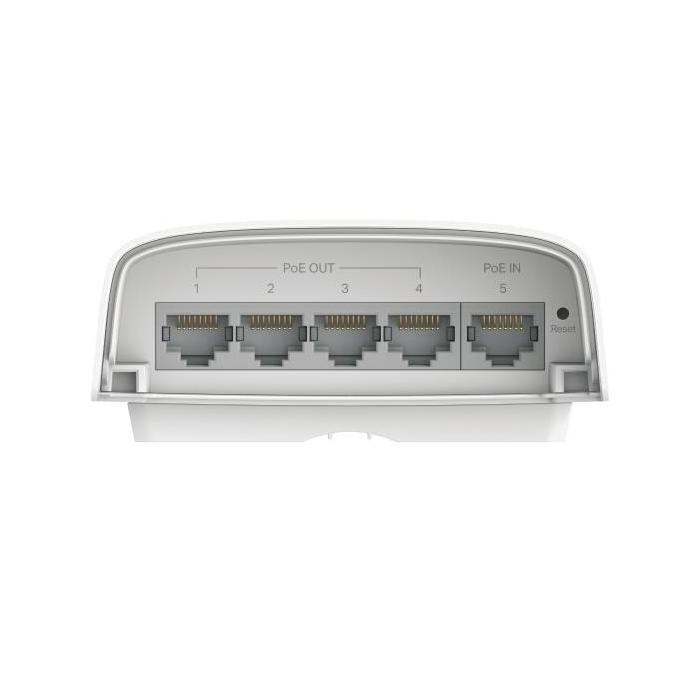

1× 10/100/1000 Mbps RJ45 PoE In, 4× 10/100/1000 Mbps RJ45 PoE Out, 10 Gbps, 8K MAC, 9 KB Jumbo, 100 x 38.5 x 170 mm

Specifications

Management features

Switch type: Managed
Switch layer: L2/L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
MIB support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity: 4

Network

Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 80
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported: Cat5, Cat5e
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
IPv4 routes: 32
IPv6 routes: 32
VLAN support: Yes
Virtual LAN features: Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 9
Packet forwarding rate (1 Gbps): 7440 pps
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP relay, DHCP server
Access Control List (ACL): Yes
Access Control List (ACL) IPv4 entries: 32
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS
MAC address filtering: Yes
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Password protection: Yes

Multicast features

Multicast support: Yes
Multicast MAC address table: 8000 entries
IPv4 multicast entries: 511
IPv6 multicast entries: 511

Protocols

IPv4 & IPv6 features: Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert

Design

Rack mounting: No
Stackable: No
Form factor: Desktop
Product colour: White

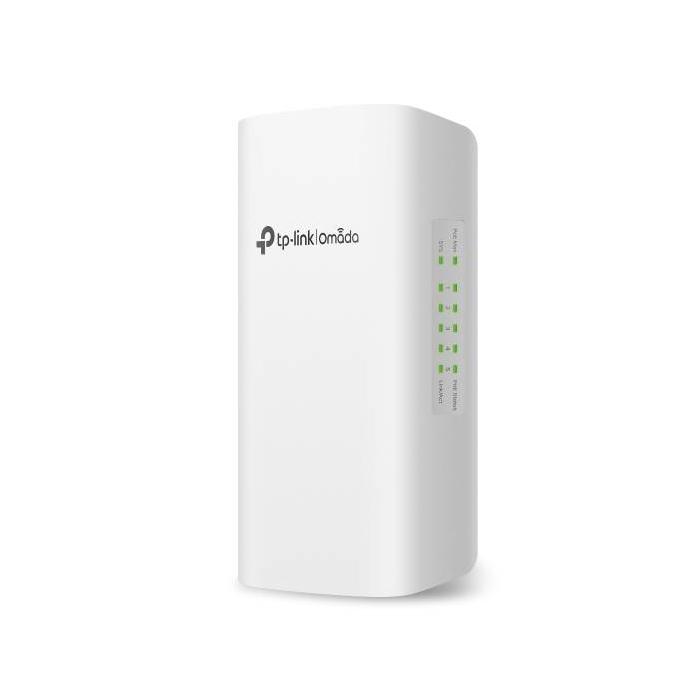

LED indicators: Yes

Power

Power source: DC/PoE
Power supply included: Yes
Power consumption (typical): 71.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 64 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 243.99 BTU/h

Weight & dimensions

Width: 170 mm
Depth: 100 mm
Height: 38.5 mm

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: CE, RoHS
