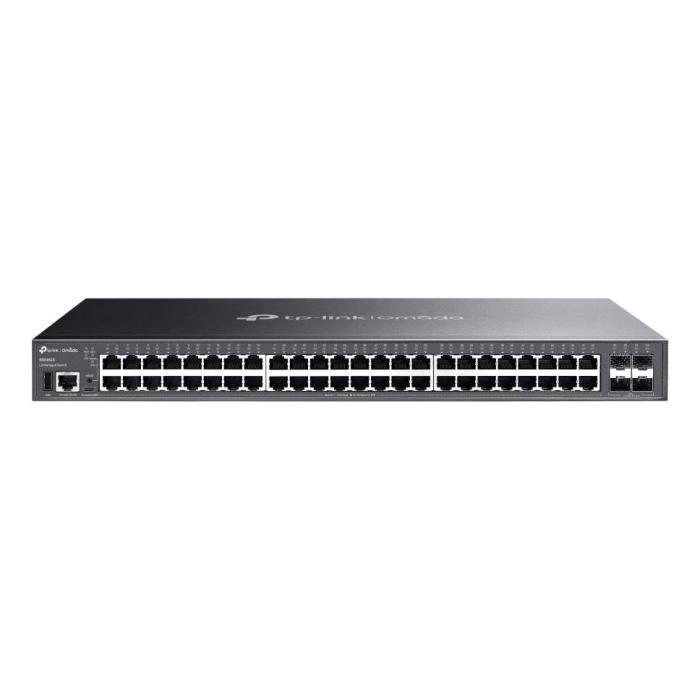

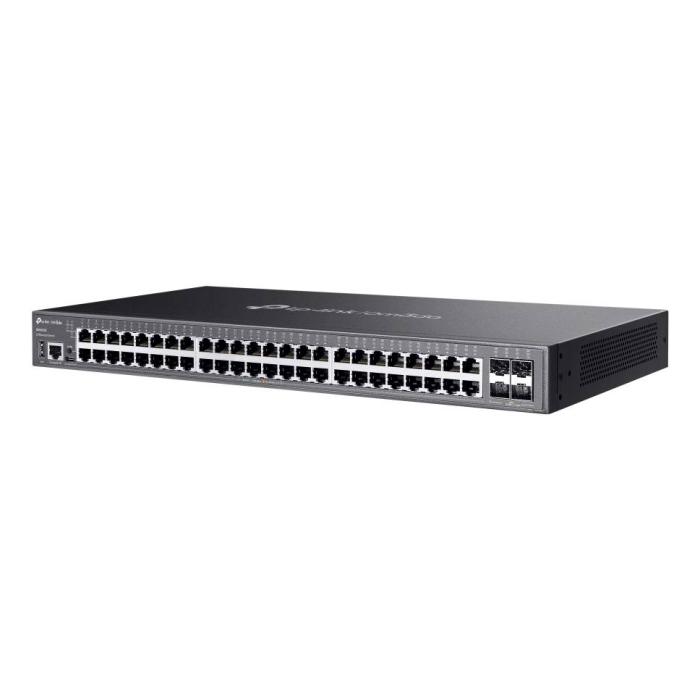

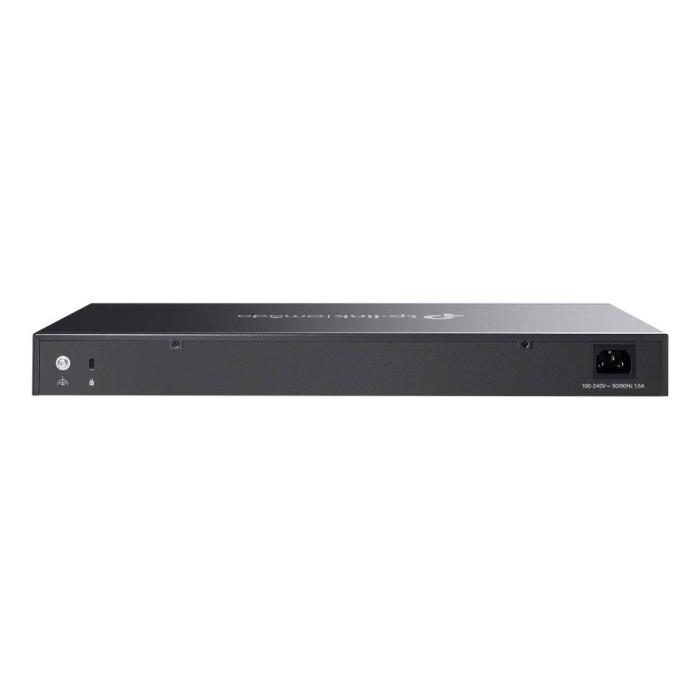

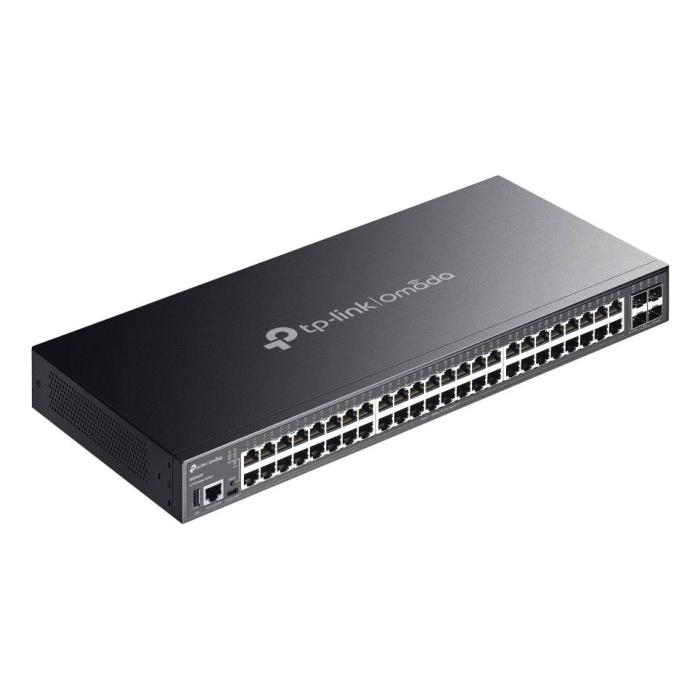

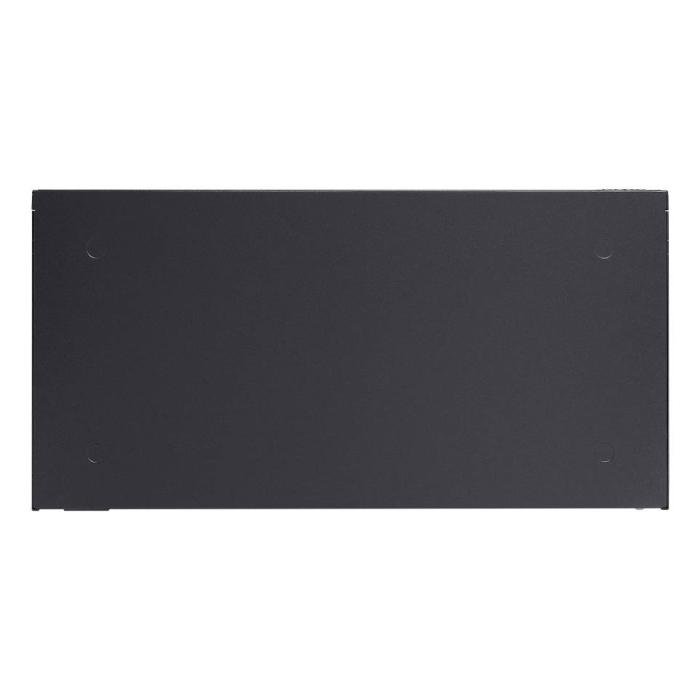

TP-Link Omada SG5452X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black

774.00 €
639.67 € without VAT

More info

Brand: TP-LINK
SKU: 120618 PRC: 599690 EAN: 8885020626469 PN: SG5452X

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 48
  • SFP+ module slots quantity: 4
  • USB Type-C ports quantity: 1
  • Console port: RJ-45
  • USB 2.0 ports quantity: 1

Network

  • Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
  • 10G support: Yes
  • Port mirroring: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
  • Number of VLANs: 4000

Data transmission

  • Switching capacity: 176 Gbit/s
  • Forwarding rate: 130.94 Mpps
  • MAC address table: 16000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 12 MB

Security

  • DHCP features: DHCP relay, DHCP server
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: SNMP, SNMPv2, SNMPv3
  • MAC address filtering: Yes
  • Static port security: Yes
  • SSH/SSL support: Yes
  • IP-MAC-Port binding: Yes
  • Password protection: Yes

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: Yes
  • Stackable: Yes
  • Product colour: Black
  • LED indicators: Yes

Performance

  • Physical stacking (units): 4
  • Built-in processor: Yes
  • Processor manufacturer: ARM
  • Processor frequency: 1200 MHz
  • Memory type: DRAM
  • Internal memory: 2000 MB
  • Flash memory: 512 MB
  • Firmware upgradeable: Yes
  • Telnet: Yes
  • Fanless: Yes
  • Mean time between failures (MTBF): 211.644 h

Power

  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 34.1 W
  • Surge protection: Yes
  • Surge protection voltage: 6 kV

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Other features

  • Management level: 4
  • Bandwidth: 88 Gbit/s

Operational conditions

  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 116.42 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 220 mm
  • Height: 44 mm

Packaging content

  • Cables included: AC
  • Quick start guide: Yes
  • Rack mount kit: Yes

Certificates

  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
