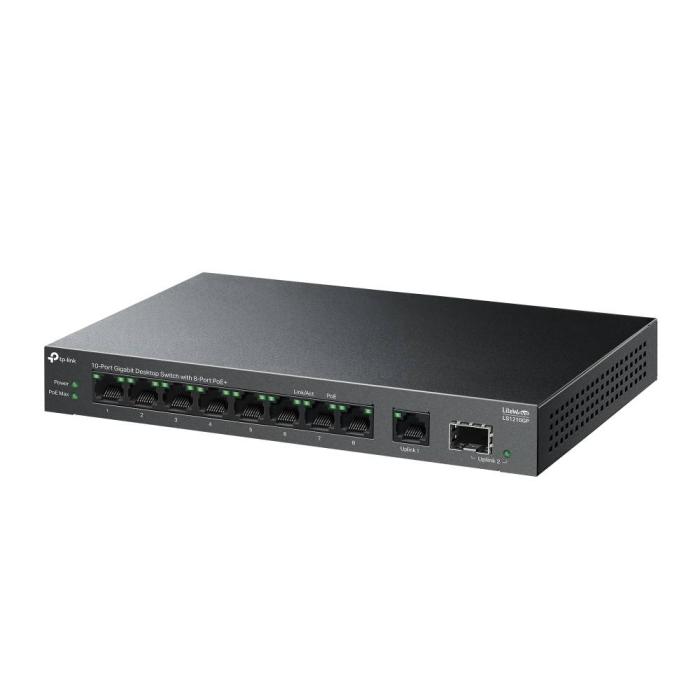

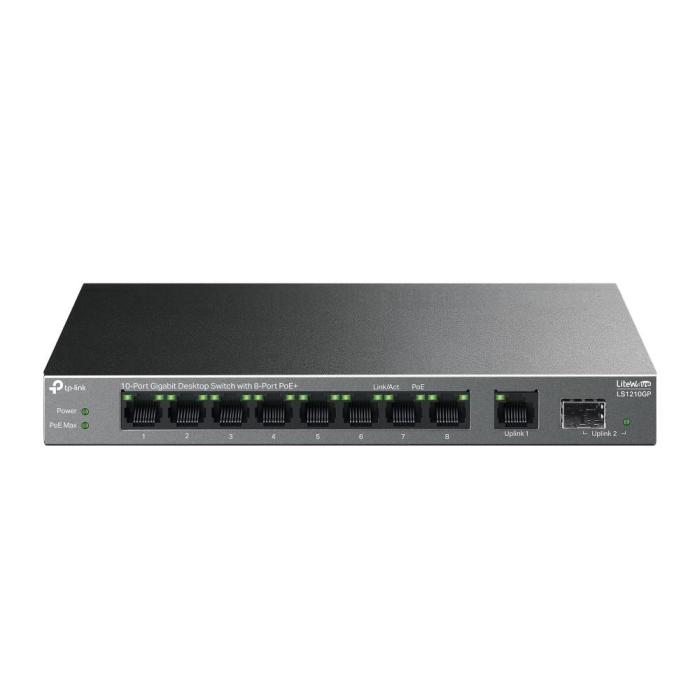

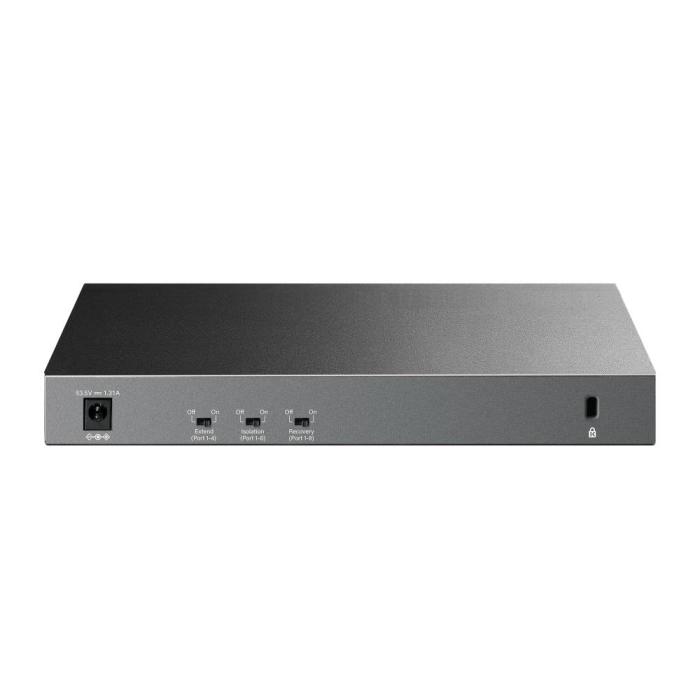

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+

$52.37
$52.37 without VAT

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+.   More info

Brand: TP-LINK
SKU: 105086 PRC: 514105 EAN: 4895252504576 PN: LS1210GP

Description

9× 10/100/1000 Mbps RJ45, 1× Gigabit SFP Port, PoE+ 61W, 20 Gbps, 14.88 Mpps, 4K MAC, 16 KB Jumbo, 209x126x26 mm

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 9
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 1

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Switching capacity: 20 Gbit/s
  • Forwarding rate: 14.88 Mpps
  • MAC address table: 4000 entries
  • Store-and-forward: Yes
  • Jumbo frames: 16000

Design

  • Product colour: Black
  • LED indicators: Yes

Power

  • Power source: DC/PoE
  • Power supply included: Yes
  • AC input voltage: 220 V
  • AC input frequency: 50 Hz
  • DC input voltage: 53.5 V
  • Power consumption (max): 76.96 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 61 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 261.66 BTU/h

Weight & dimensions

  • Width: 209 mm
  • Depth: 126 mm
  • Height: 26 mm

Packaging content

  • User guide: Yes

Packaging data

  • Package type: Box

Certificates

  • Certification: CE, FCC, RoHS
